Flexible metal conduit (square-locked) is used for the protection of electric wire/cable and other related products. It also can solve the problem of construction of angle that the rigid pipes (such as steel pipes and PVC pipe) can not overcome and then becomes easily in the installation and operation of wires/pipes, as well as liquid-tight, flame retardant, vibration-proof, anti-interference, etc.
Features:
* #304 Stainless steel core, not liquid-tight.
* Interlocked.
* Good tensile property.
* Flat and smooth internal surface for better cable installation.
* For large machinery or automatic machine which requires heavy
bearing and tensile property.
* For transportation facility and heavy industry.

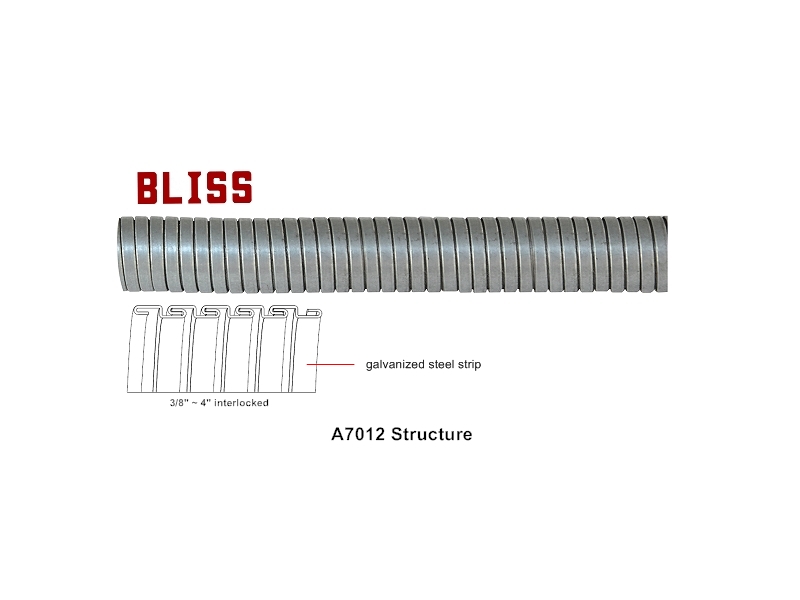

* Galvanized steel core type A7012.
* #316 stainless steel core is available by request.
* RoHS & REACH compliant.
* IP50
| Catalog number | Trade size (inch) |
Inner diameter min. (mm) |
Inner diameter max. (mm) |
Outside diameter min. (mm) |
Outside diameter max. (mm) |
Min bending radius (mm) |
Packing length (m) |
|---|---|---|---|---|---|---|---|
| A70130300 | 3/8" | 12.3 | 12.8 | 15.3 | 15.8 | 55 | 30 |
| A70130400 | 1/2" | 15.8 | 16.3 | 18.8 | 19.3 | 85 | 30 |
| A70130600 | 3/4" | 20.8 | 21.3 | 23.8 | 24.3 | 110 | 30 |
| A70131000 | 1" | 26.4 | 27.1 | 29.4 | 30.1 | 150 | 30 |
| A70131200 | 1-1/4" | 35.1 | 35.8 | 39.5 | 40.2 | 175 | 15 |
| A70131400 | 1-1/2" | 40.1 | 40.8 | 44.5 | 45.2 | 190 | 15 |
| A70132000 | 2" | 51.3 | 52.0 | 55.7 | 56.4 | 240 | 15 |
| A70132400 | 2-1/2" | 63.0 | 63.7 | 67.4 | 68.1 | 310 | 10 |
| A70133000 | 3" | 78.0 | 78.7 | 83.0 | 83.7 | 380 | 10 |
| A70134000 | 4" | 101.6 | 102.6 | 106.6 | 107.6 | 490 | 5 |
