Air-compressed flat precise machine

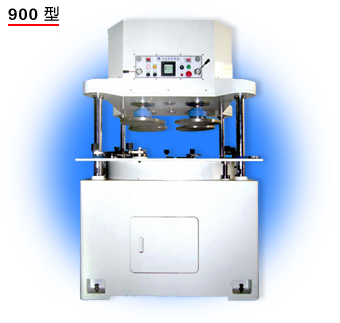

Air-compressed flat precise polishing machine
900
| Specifications | Type 900 |
| Disk outer diameter | 916 mm |
| Maximum admitted diameter of work piece | 342 mm (368 mm) |
| Minimum work piece thickness | 0.30 mm |
| Number of working axes | 4 axes |
| Maximum allowable working pressure | 80kg/each axes |
| Surface precision | 0.2-0.5 u |
| Rotating Speed | 10-60 R.P.M. |
| Main shaft horsepower(HP) | 7.5 HP variable speed |
| Automatic circulatory system | 1/2HP（agitator included） |
| Automatic controller | can be controlled either by loop or by hour control |
| Voltage | three-phase 220V |
| Mechanical weight | approximate 1600 Kg |
| Mechanical Dimensions | L1500*W1500*H1900 mm |
| Standard accessories | according to the actual equipment |
*Specification, size, and equipment will be subjected to change without prior notice | |
Specification
Characteristics and applications
| 1. | The machine is suitable for mass production and high precision operation. |
| 2. | Flatness precision for work piece can reach 0.2μ -0.5μ. |
| 3. | The machine is applicable to work on things with different shapes and different at the same time. |
| 4. | There is no influence on temperature and distortion, even if the work piece is as thin as 0.20m/m. |
| 5. | Maintenance of the grinding disk is available during manufacturing process, which there is no need to stop. |
Optional equipment
| 1. | Disk cooling water circulatory system |
| 2. | Self-timer fixed amount spraying device |
| 3. | Stainless steel conditioning wheel |
| 4. | Diamond disk repairer |
| 5. | Precision ruler |
| 6. | Granite examination platform |
| 7. | Electrical control system (with program control and a 5.7 " color touch screen) |
