Standard flat-surface precise lapping\ polishing machine
Standard flat-surface precise lapping\ polishing machine

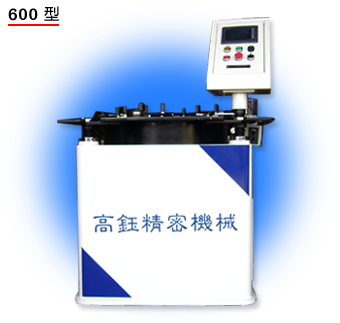

600
| Specifications | Type 600 |
| Disk outer diameter | 610 mm |
| Maximum admitted diameter of work piece |
229 mm |
| Minimum work piece thickness |
0.2 mm |
| Surface precision | 0.2-0.5u |
| Rotating Speed | 10-60 R.P.M. |
| Main shaft horsepower(HP) | 5HP variable speed |
| pump’s horsepower(HP) | 1/4 HP |
| Automatic controller | 0~999 min |
| Net weight(NW) | 500 Kg |
| Mechanical Size | 1200*1200*800 mm |
| Standard accessories | according to the actual equipment |
| *Specification, size, and equipment will be subjected to change without prior notice | |
Specification
| Optional equipment | |||||||||||||||
|
|||||||||||||||
