High Speed Hollow Hydraulic Cylinders

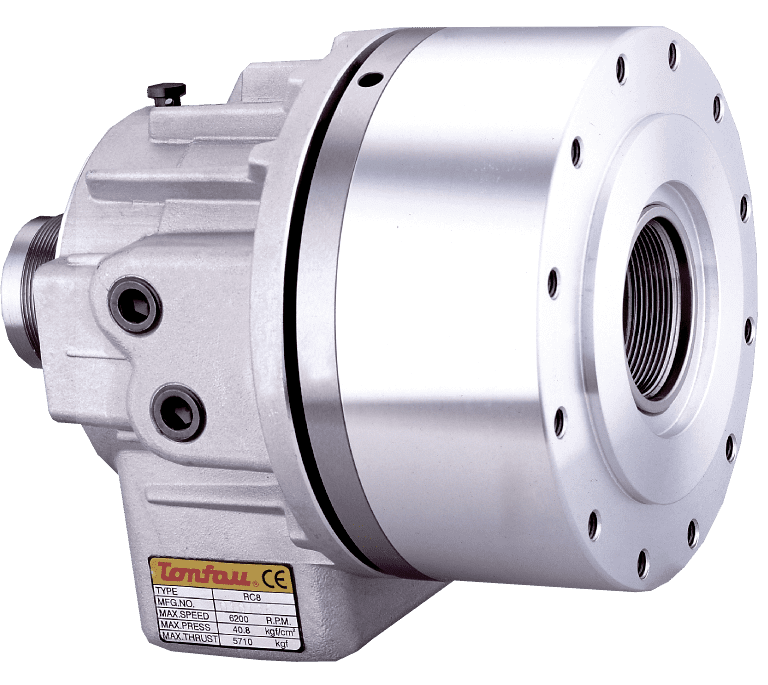

Super high speed through-hole rotary hydraulic cylinder

Specification

Symbol\Model	RC-4	RC-5	RC-6	RC-8	RC-10	RC-10X	RC-12	RC-15
Effective Piston Area - Extend (cm²)	47	67	100	161	198	198	252	345
Effective Piston Area - Retract (cm²)	41.5	64.5	89	150	183	183	234	336
Piston stroke (mm)	9	15	15	22	25	25	30	23
Max. speed (r.p.m.)	8000	8000	7000	6200	4700	4700	3800	2800
Max. pressure (kgf/cm²)	40	40	40	40	40	40	40	40
Moment of inertia (kgf.m²)	0.02	0.044	0.078	0.21	0.38	0.38	0.61	1.21
Weight (kg)	5.6	8.6	12	16.8	26	26	33	55
Max oil leakage from drain port and max internal oil leakage (lit/min)	3	3	3	3.9	4.2	4.2	4.5	7

Dimensions

Series\Symbol	RC-4	RC-5	RC-6	RC-8	RC-10	RC-10X	RC-12	RC-15
C	115	135	155	190	215	215	240	310
D	100	115	130	170	190	190	215	275
E	80	100	100	130	160	160	180	230
F	65	65	80	85	120	120	140	166
G	44	48	65	70	95	95	110	140
H	M38x1.5	M42x1.5	M55x2	M60x2	M85x2	M87x2	M100x2	M130x2
J Through-Hole Diameter	28	36	46	52	75	78	91	117.5
K	25	30	36	36	36	36	36	36
M	35	44.8	52.9	59.6	84.6	84.6	99.6	118
N	44	55	64	73	98	98	108	148
P	59	73	85	96	121	121	138	178
S	90	106	118	137	166	166	182	225
T	105	115	115	130	160	160	185	215
U	158	175.5	184	196	230	230	253	267
V (Max)	9	10	10	17	20	20	25	18
V (Min)	0	-5	-5	-5	-5	-5	-5	-5
W (Max)	34	40	40	47	50	50	55	56
W (Min)	25	25	25	25	25	25	25	33
Z	5	5	5	5	5	5	5	6
A	76	88	98	110	155	155	165	206

Series\Symbol	RC-4	RC-5	RC-6	RC-8	RC-10	RC-10X	RC-12	RC-15
A1	9.5	11	11.5	12	17.5	17.5	21	21
B1	106	120.5	126.5	136	153.5	153.5	168	153.5
C1	25	25	30	30	35	35	35	45
E1 Depth	M6x10	M5x9	M6x9	M6x9	M6x9	M6x9	M6x14	M6x10.5
F1 Depth	M8x20	M10x20	M10x20	M10x20	M10x20	M10x20	M12x24	M16x24
G1	114.5	126.5	135	145	166.5	166.5	183	197
J1	60	66	76	86	101	101	110	129
K1	47	47	47	47	47	47	47	55
L1	15	15	15	15	15	15	15	20
M1	34	38	50	55	80	80	95	123
N1	53	64	76	85	108	108	120	160
P1	4	4	4	4	4	4	4	5
Q1 Depth	M4x10	M5x10	M5x10	M6x12	M6x12	M6x12	M6x12	M6x12
R1	5	5	6	7	7	7	7	7
S1	PT 3/8	PT 3/8	PT 1/2	PT 1/2	PT 1/2	PT 1/2	PT 1/2	PT 1/2
T1	6	6	6	6	6	6	6	6
W1	M34x1.5	M44x1.5	M52x1.5	M58x1.5	M84x2.0	M84x2.0	M99x2	M134x2
X1	32	42	50	56	81	81	96	131
