ATC Systems

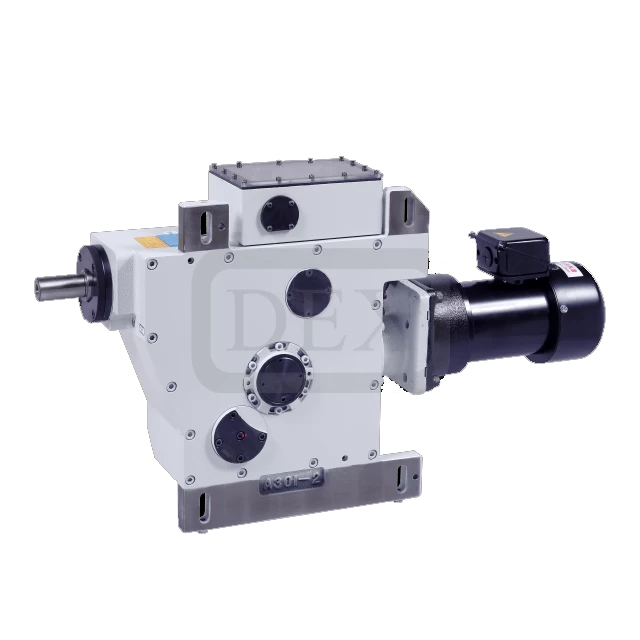

ATC Systems-BT30# Standard-type

BT30系列

Specification

Outline Drawing

renishaw-acu250-r-asis-corrected

Part Number	31DEXB003A(BT-30)-Magazine on the right
Time Interval For Cutter	Please refer to the A301 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	85mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	4kg
Signal Specifications	Proximity Switch PNP-NOx3~4
Driving Horse Power	1/3HP
Weight Of The Product	100kg
Accuracy	Overlapping accuracy 4" Horizontal Accuracy 0.2mm

Angle for cutter change can be defined per customer's need (60°~ 90°)

We can customize strokes according to different types of tool holders

Tool Weight Unilateral Loading of Tool	Motor Frequency	Compatible with 1/3HP motors	ATC Time Interval For Cutter
1.5Kgx2	50Hz	1:8	0.99 sec
1.5Kgx2	60Hz	1:8	0.84 sec
2Kgx2	50Hz	1:8	0.99 sec
2Kgx2	60Hz	1:8	0.84 sec
2.5Kgx2	50Hz	1:8	0.99 sec
2.5Kgx2	60Hz	1:8	0.84 sec
3Kgx2	50Hz	1:8	0.99 sec
3Kgx2	60Hz	1:8	0.84 sec
3.5Kgx2	50Hz	1:8	0.99 sec
3.5Kgx2	60Hz	1:10	1.05 sec
4Kgx2	50Hz	1:8	0.99 sec
4Kgx2	60Hz	1:10	1.05 sec

Tool Weight Unilateral Loading of Tool	Motor Frequency	Compatible with 1/3HP motors	ATC Time Interval For Cutter
1.5Kg	50Hz	1:8	0.99 sec
1.5Kg	60Hz	1:8	0.84 sec
2Kg	50Hz	1:8	0.99 sec
2Kg	60Hz	1:8	0.84 sec
2.5Kg	50Hz	1:8	0.99 sec
2.5Kg	60Hz	1:8	0.84 sec
3Kg	50Hz	1:8	0.99 sec
3Kg	60Hz	1:8	0.84 sec
3.5Kg	50Hz	1:8	0.99 sec
3.5Kg	60Hz	1:8	0.84 sec
4Kg	50Hz	1:8	0.99 sec
4Kg	60Hz	1:8	0.84 sec
