ATC Systems

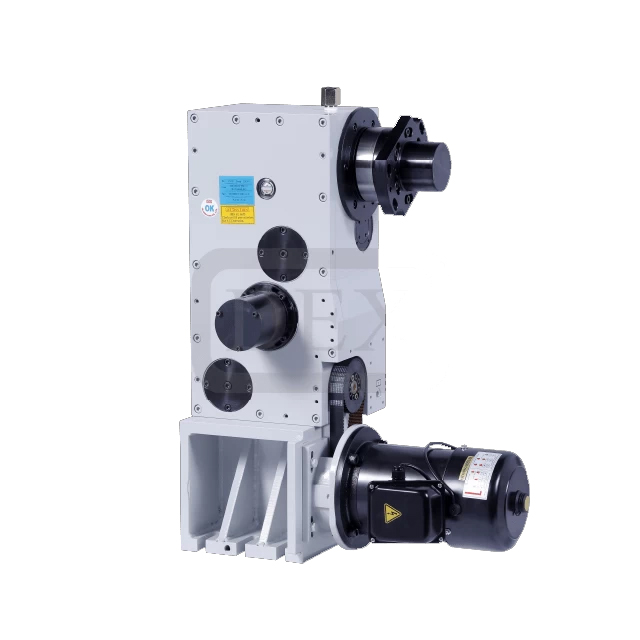

ATC Systems-A405 - Horizontal

BT40臥式

Specification

Outline Drawing

renishaw-acu250-r-asis-corrected

video-a405

Part Number	45DEXA132C (BT-40)Horizontal
Time Interval For Cutter	Please refer to the A405 speed ratio loading table
Tool Buckling Angles	60°~90°(based on customer requirements)
Cutter Pulling Strokechange	115mm-MAX(We can customize strokes according to different types of tool holders)
Maximum Loading	8kg
Signal Specifications	Decoder
Driving Horse Power	1HP
Weight Of The Product	180kg(with oil)
Accuracy	Overlapping accuracy 3" Horizontal Accuracy 0.2mm

Angle for cutter change can be defined per customer's need (60°~ 90°)

We can customize strokes according to different types of tool holders

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1HP	ATC Time Interval For Cutter
4Kgx2	50Hz	30:48	1.66 sec
4Kgx2	60Hz	30:48	1.39 sec
5Kgx2	50Hz	30:48	1.66 sec
5Kgx2	60Hz	30:48	1.39 sec
6Kgx2	50Hz	30:48	1.66 sec
6Kgx2	60Hz	30:48	1.39 sec
7Kgx2	50Hz	30:48	1.66 sec
7Kgx2	60Hz	30:48	1.39 sec
8Kgx2	50Hz	30:48	1.66 sec
8Kgx2	60Hz	30:48	1.39 sec

Tool Weight Bilateral Loading of Tools	Motor Frequency	Belts Compatible with 1HP	ATC Time Interval For Cutter
4Kgx2	50Hz	30:48	1.66 sec
4Kgx2	60Hz	25:56	1.95 sec
5Kgx2	50Hz	27:50	1.92 sec
5Kgx2	60Hz	25:56	1.95 sec
6Kgx2	50Hz	27:50	1.92 sec
6Kgx2	60Hz	25:56	1.95 sec
7Kgx2	50Hz	27:50	1.92 sec
7Kgx2	60Hz	25:56	1.95 sec
8Kgx2	50Hz	25:50	2.1 sec
