Auto Pallet Changer System

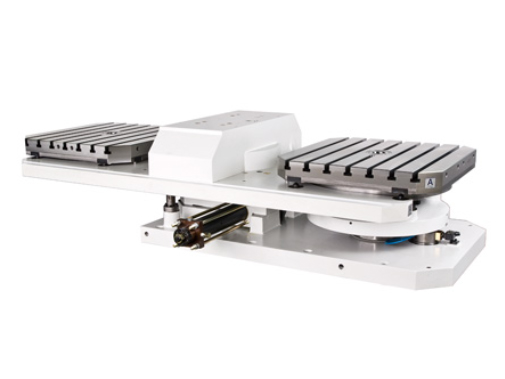

Horizontal APC Series／ Auto Pallet Changer System
APC-320JS~800S
Product Feature
1. High accuracy and high efficiency.
2. Use a servo motor or hydraulic gear to do transmission.
3. Positioning and clamping the pallet with the tapper cone.
Specification
|
Model Item |
Unit | APC-320JS | APC-400S | APC-503S | APC-630S | APC-800S | |||
|---|---|---|---|---|---|---|---|---|---|
| Pallet Diameter | mm | 320×320 | 400×400 | 500×500 | 630×630 | 800×800 | |||
| Transmission Way | By Servo Motor Drive(Hydraulic Rack Drive) | ||||||||
| Exchange Way | Reciprocating Action ( Angle 180) | ||||||||
| Servo motor(Option) | ABS Type | FANUC | αis8 | αis12 | αiF12 | αiF22 | αiF22 | ||
| MELDAS | HF-154S | HF-204S | HF-204S | HF-354S | HF-354S | ||||
| Total Reduction Ratio | 1：120 | 1：120 | 1：120 | 1：144 | 1：360 | ||||
| Exchange time(Servo Motor) | sec | 10 | 10 | 12 | 14 | 18 | |||
| Exchange time(Hydraulic Rack) | sec | 12 | 12 | 14 | 16 | 20 | |||
| Ascending and Descending Drive(Hydraulic) | kg/cm2 | 40 | 70 | 70 | 50 | 50 | |||
| Ascending and Descending Travel of The Pallet | mm | 82 | 55 | 55 | 55 | 70 | |||
| Bilateral of Work Max. Weight Error | kg | 250 | 300 | 400 | 1000 | 1400 | |||
| Max. Work Load |  |
kg | 300×2=600 | 400×2=800 | 500×2=1000 | 1200×2=2400 | 2000×2=4000 | ||
| Weight of Rotary Exchange Mechanism(Including Tray) | kg | 300 | 280 | 450 | 1055 | 1550 | |||
| Weight of 2 Pallets | kg | 50×2=100 | 70×2=140 | 135×2=270 | 240×2=480 | 360×2=720 | |||
| Weight of Preset Working Table | kg | - | - | - | 138 | 350 | |||
1. Please contact us for more detailed specification.
2. PARKSON owns the rights to modify the drawing and specification.
3. Servo motors, drives, encoders and hydraulic units are excluded.
