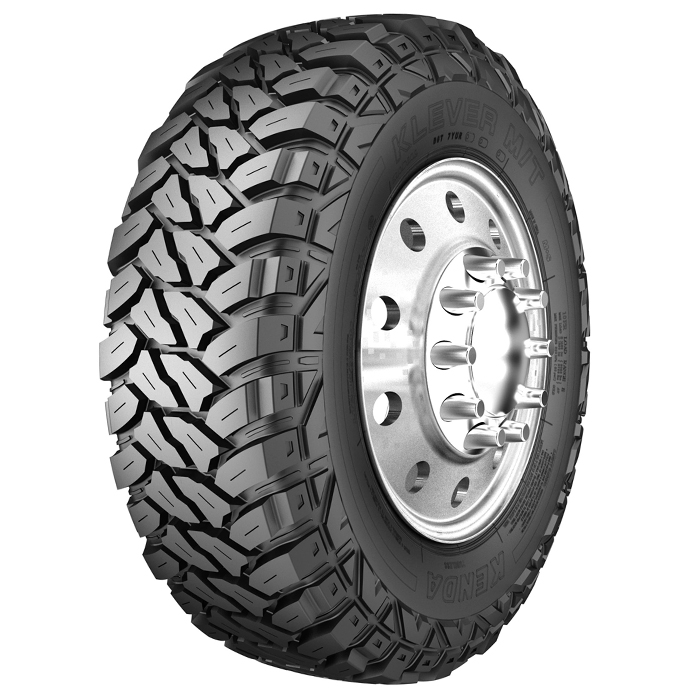

KLEVER M／T
KR29
KR29
1.Reinforced 3ply sidewall construction in select sizes.
2.Radiated shoulder grooves allow improved mud/dirt clearance.
3.Tread arrangement ensures a uniform tread contact area for excellent handling.
Specification
| PATTERN | SERIES | SIZE | LOAD RANG | S.W. (MM) |
O.D. (MM) |
MAX. LOAD S/D (LBS) |
MAX. LOAD S/D (KGS) |
MAX. PSI |
RIM INCH) |
TREAD DEPTH(MM) |
| KR29 | 60 | LT305/60R18 121/118Q | E | 10.4 | ||||||
| 65 | LT275/65R20 126/123Q | E | 10.4 | |||||||
| 70 | LT245/70R17 119/116Q | E | 254 | 774 | 2998/2756 | 1360/1250 | 80 | 7 | 14.7 | |
| LT265/70R17 112/109Q | C | 272 | 804 | 2469/2271 | 1120/1030 | 50 | 8 | 14.7 | ||
| LT265/70R17 121/118Q | E | 272 | 804 | 3197/2910 | 1450/1320 | 80 | 8 | 14.7 | ||
| LT275/70R18 125/122Q | E | 14.7 | ||||||||
| 75 | LT215/75R15 100/97R | C | 216 | 703 | 1764/1609 | 800/730 | 50 | 6 | 14.7 | |
| LT235/75R15 104/101Q | C | 235 | 733 | 1985/1820 | 900/825 | 50 | 6.5 | 14.7 | ||
| LT225/75R16 110/107Q | D | 223 | 746 | 2335/2150 | 1060/975 | 65 | 6 | 14.7 | ||
| LT245/75R16 120/116Q | E | 250 | 776 | 3086/2756 | 1400/1250 | 80 | 7 | 14.7 | ||
| LT265/75R16 123/120Q | E | 270 | 806 | 3417/3086 | 1550/1400 | 80 | 7.5 | 14.7 | ||
| LT285/75R16 126/123Q | E | 290 | 834 | 3750/3415 | 1700/1550 | 80 | 8 | 14.7 | ||
| LT255/75R17 111/108Q | C | 255 | 814 | 2405/2205 | 1090/1000 | 50 | 7 | 14.7 | ||
| 85 | LT235/85R16 120Q/116Q | E | 240 | 808 | 3086/2756 | 1400/1250 | 80 | 6.5 | 14.7 | |
| 30*9.50R15 104 Q | E | 236 | 748 | 1984 | 900 | 51 | 7.5 | 14.7 | ||
| 31*10.5R15LT 109Q | C | 272 | 775 | 2270 | 1030 | 50 | 8.5 | 14.7 | ||
| 32*11.5R15LT 113Q | C | 290 | 801 | 2535 | 1150 | 50 | 9 | 14.7 | ||
| 33*12.50R20LT 108Q TL OWL | C | 318 | 826 | 2205 | 1000 | 50 | 10 | 14.7 | ||
| 33*12.50R15LT 108Q TL | C | 310 | 826 | 2205 | 1000 | 36 | 10 | 14.7 | ||
| 35*12.50R17LT 121Q TL | D | 308 | 875 | 2998 | 1360 | 50 | 10 | 14.7 | ||
| 35*12.5R18LT 123Q TL | E | 14.7 | ||||||||
| 35*12.5R20LT 121Q TL | E | 318 | 877 | 3195 | 1450 | 65 | 10 | 14.7 | ||
| 35*12.5R22LT 120Q TL | E | 14.7 | ||||||||
| 37*13.5R22LT 123Q TL | E | 14.7 | ||||||||
| 37*13.5R20LT 127Q TL | E | 14.7 | ||||||||
| 38*15.5r20LT 125Q TL | D | 14.7 |
