KUAVELA SL

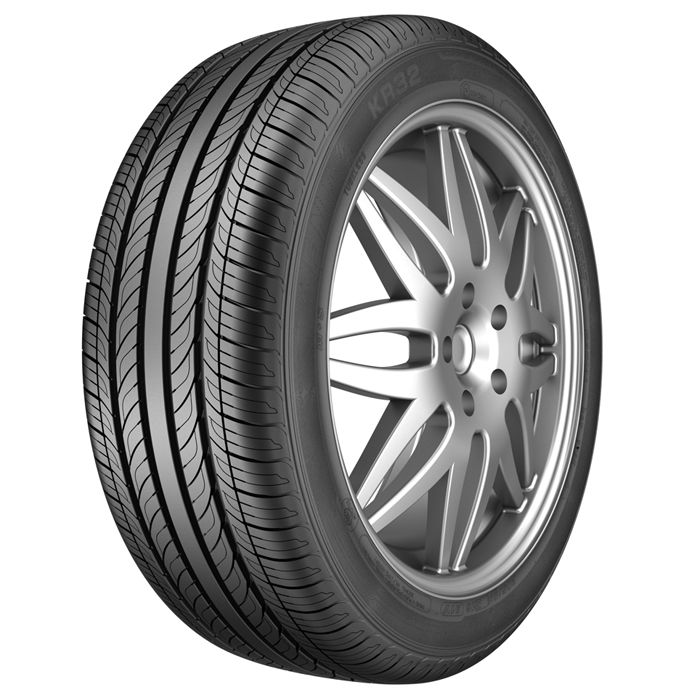

KR32
KR32
1.A Five-pitch tread sequences designed with Kenda NMA technology reduces pattern noise for an incredibly quiet ride.
2.Wider shoulder siping and circumferential grooves help to displace water for ultimate traction in wet or dry
conditions.
3.Improved silica-based compounds that are free of High Aromatic Oils greatly reduces rolling resistance and delivers
improves fuel economy.
4.Pattern pith arrangement harmonic analysis optimizes design to reduce road noise.
Specification
| PATTERN | SERIES | SIZE | S.W. (MM) |
O.D. (MM) |
MAX. LOAD (LBS) |
MAX. LOAD (KGS) |
MAX. PSI | RIM (INCH) |
TREAD DEPTH(MM) |
| KR32 | 40 | 225/40ZR18 XL 92W TL | 230 | 637 | 1389 | 630 | 50 | 8 | 7.7 |
| 235/40ZR18 XL 95W TL | 241 | 645 | 1521 | 690 | 50 | 8.5 | 7.7 | ||
| 245/40ZR18 93W TL | 248 | 653 | 1433 | 650 | 44 | 8.5 | 7.7 | ||
| 245/40ZR18 XL 97V TL | 248 | 653 | 1609 | 730 | 50 | 8.5 | 7.7 | ||
| 45 | 205/45ZR16 XL 87W TL | 206 | 590 | 1201 | 545 | 50 | 7 | 7.7 | |
| 205/45R17 XL 88V TL | 206 | 616 | 1235 | 560 | 50 | 7 | 7.7 | ||
| 215/45R17 XL 91V TL | 213 | 626 | 1356 | 615 | 42 | 7 | 7.7 | ||
| 215/45ZR17 XL 91V TL | 213 | 626 | 1356 | 615 | 50 | 7 | 7.7 | ||
| 215/45ZR17 91W TL | 213 | 626 | 1356 | 615 | 50 | 7 | 7.7 | ||
| 225/45ZR17 XL 94W TL | 225 | 634 | 1477 | 670 | 50 | 7.5 | 7.7 | ||
| 235/45ZR17 94W TL | 236 | 644 | 1609 | 730 | 50 | 8 | 7.7 | ||
| 245/45ZR18 96V TL | 243 | 677 | 1764 | 800 | 44 | 8 | 7.7 | ||
| 245/45ZR18 96W TL | 243 | 677 | 1565 | 710 | 44 | 8 | 7.7 | ||
| 50 | 195/50R16 88V TL | 201 | 602 | 1235 | 560 | 50 | 6 | 7.7 | |
| 205/50R16 87V TL | 214 | 612 | 1201 | 545 | 44 | 6.5 | 7.7 | ||
| 205/50R17 89V TL | 214 | 638 | 1279 | 580 | 44 | 6.5 | 7.7 | ||
| 225/50R17 94V TL | 233 | 658 | 1477 | 670 | 44 | 7 | 7.7 | ||
| 245/50ZR18 100W TL | 253 | 703 | 1764 | 800 | 44 | 7.5 | 7.7 | ||
| 55 | 185/55R14 80H TL | 194 | 560 | 992 | 450 | 44 | 6 | 7.7 | |
| 185/55R15 82V TL | 194 | 585 | 1047 | 475 | 44 | 6 | 7.7 | ||
| 195/55R15 85V TL | 201 | 595 | 1135 | 515 | 44 | 6 | 7.7 | ||
| 185/55R16 83H TL | 194 | 610 | 1074 | 487 | 44 | 6 | 7.7 | ||
| 195/55R16 XL 91V TL | 201 | 620 | 1356 | 615 | 50 | 6 | 7.7 | ||
| 205/55R16 91V TL | 214 | 632 | 1356 | 615 | 44 | 6.5 | 7.7 | ||
| 215/55R16 97V TL | 226 | 642 | 1609 | 730 | 50 | 7 | 7.7 | ||
| 225/55R16 99V TL | 233 | 654 | 1709 | 775 | 50 | 7 | 7.7 | ||
| 215/55R17 94V TL | 226 | 668 | 1477 | 670 | 44 | 7 | 7.7 | ||
| 225/55R17 101V TL | 233 | 680 | 1819 | 825 | 44 | 7 | 7.7 | ||
| 235/55ZR17 103V TL | 245 | 690 | 1929 | 875 | 50 | 7.5 | 7.7 | ||
| 235/55ZR17 103W TL | 245 | 690 | 1929 | 875 | 50 | 7.5 | 7.7 | ||
| 60 | 185/60R15 84H TL | 189 | 603 | 1102 | 500 | 44 | 5.5 | 7.7 | |
| 195/60R15 88H TL | 201 | 615 | 1235 | 560 | 44 | 6 | 7.7 | ||
| 205/60R15 91V TL | 209 | 627 | 1356 | 615 | 44 | 6 | 7.7 | ||
| 195/60R16 89H TL | 201 | 640 | 1279 | 580 | 44 | 6 | 7.7 | ||
| 205/60R16 XL 96H TL | 209 | 652 | 1389 | 630 | 44 | 6 | 7.7 | ||
| 215/60R16 95H TL | 221 | 664 | 1521 | 690 | 44 | 6.5 | 7.7 | ||
| 225/60R16 98H TL | 228 | 676 | 1653 | 750 | 44 | 6.5 | 7.7 | ||
| 215/60R17 96H TL | 221 | 690 | 1565 | 710 | 44 | 6.5 | 7.7 | ||
| 225/60R17 99H TL | 228 | 702 | 1709 | 775 | 44 | 6.5 | 7.7 | ||
| 65 | 175/65R15 84H TL | 177 | 609 | 1102 | 500 | 44 | 5 | 7.7 | |
| 185/65R15 88H TL | 189 | 621 | 1235 | 560 | 44 | 5.5 | 7.7 | ||
| 195/65R15 91H TL | 201 | 635 | 1356 | 615 | 44 | 6 | 7.7 | ||
| 195/65R15 91V TL | 205 | 636 | 1356 | 615 | 44 | 6 | 7.7 | ||
| 205/65R15 94H TL | 209 | 647 | 1477 | 670 | 44 | 6 | 7.7 | ||
| 215/65R16 98H TL | 221 | 661 | 1653 | 750 | 44 | 6.5 | 7.7 | ||
| 225/65R17 102H TL | 228 | 724 | 1874 | 850 | 44 | 6.5 | 7.7 |
