Products

Stationery injection mould

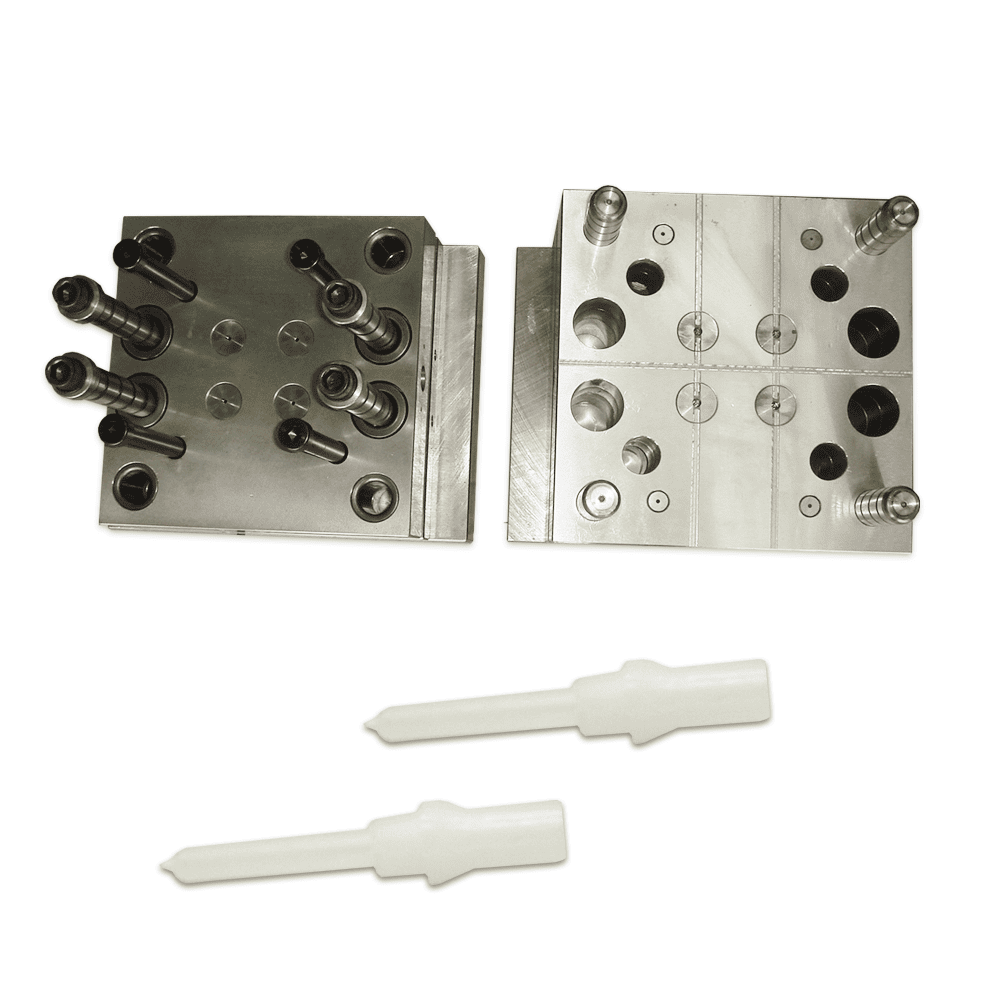

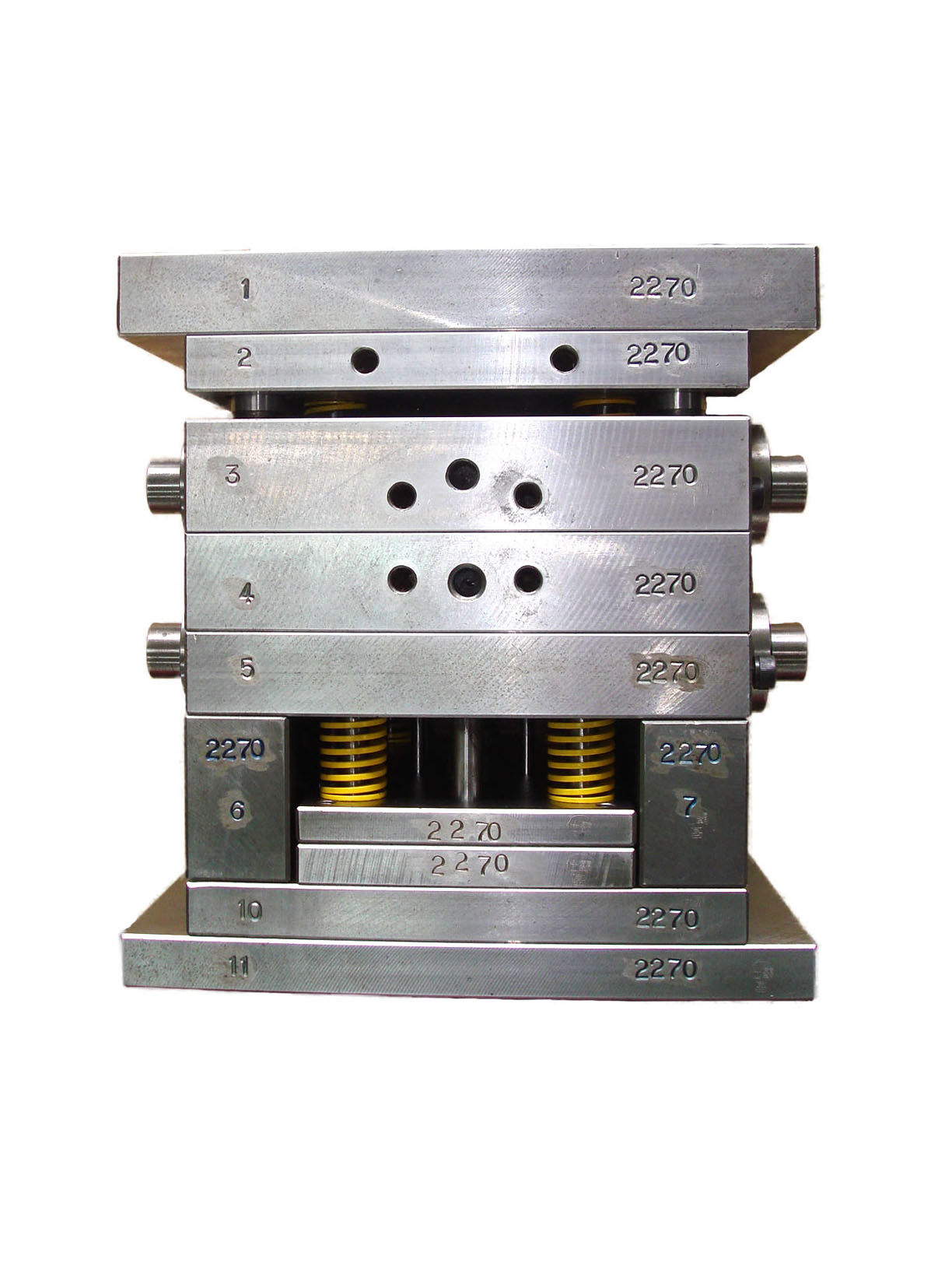

Professional mould maker pen component mold
2270

The dimensions and structure of pen cores require high-precision mold design to ensure the precise dimensions of the finished pen cores, meeting quality standards.

Common materials and advantages include:

1.HDPE, PA, ABS
2.Smooth surface for proper fitting
3.Chemical resistance
4.Wear resistance and good adhesion

Product Highlights
Pen core plastics require precise dimension control, high adaptability, excellent flowability, wear resistance, durability, lightweight, and strong plasticity. Their precision dimensions ensure a high fit with the pen barrel, resulting in smooth writing.

Specification

Material stainless steel, carbon steel
Color nickel white
Mould Base LKM
Mould Base Material S50C
Core Material M310
Cavity QTY 4 cavities
Runner cold runner
Gate Submarine gate
Mould lifetime 300,000~500,000 shots
Design software UG, CAD
Mold flow software Moldex 3D
Plastic part material ABS
Mould dimension Length : 295 Width : 400 Height : 200 mm
OEM and ODM Acceptable
Packing Wooden package or as your request
