Fixtures／tools injection mould
(Copy)-plastic injection tooling mold for jig fixture
2702

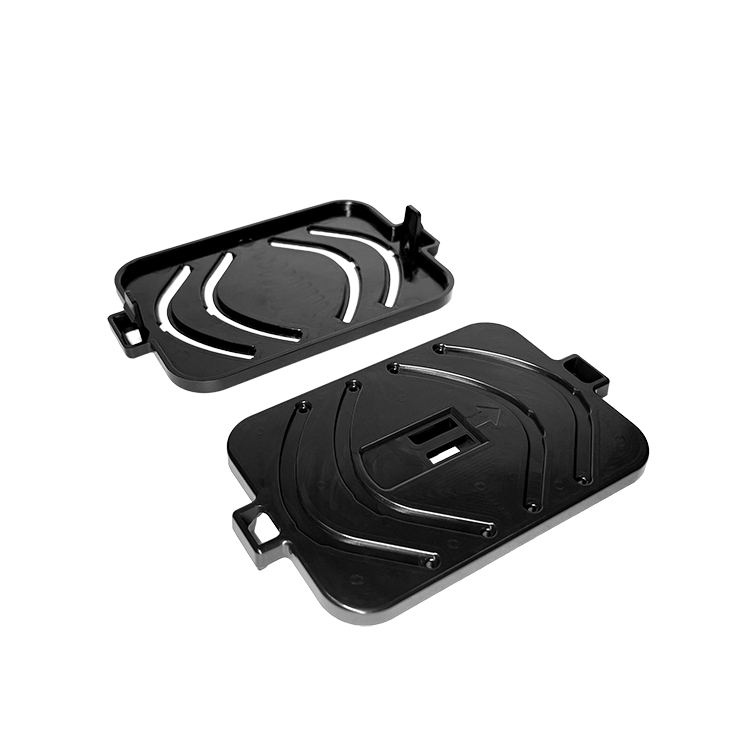

Spray Coating Fixtures for Plastic Injection Molded Products - 2702 Mobile Phone Case Spray Coating Fixture
Spray coating fixtures for mobile phone cases enable efficient and large-scale production, reducing production cycles, increasing output, and lowering manufacturing costs. Commonly used materials and their advantages include:
1.ABS, PP, PC
2.Designed according to the requirements of spray coating
3.Enhances aesthetics
4.Longer lifespan
Product Features:
Coating fixtures are typically used in conjunction with automated equipment, enabling automated painting or coating processes. This integration enhances production efficiency while reducing manual intervention.
Specification
| Material | stainless steel, carbon steel |
| Color | nickel white |
| Mould Base | LKM |
| Mould Base Material | S50C |
| Core Material | M310 |
| Cavity QTY | 4 cavities |
| Runner | cold runner |
| Gate | Submarine gate |
| Mould lifetime | 300,000~500,000 shots |
| Design software | UG, CAD |
| Mold flow software | Moldex 3D |
| Plastic part material | ABS |
| Mould dimension | Length : 295 Width : 400 Height : 200 mm |
| OEM and ODM | Acceptable |
| Packing | Wooden package or as your request |
