NC Head Units

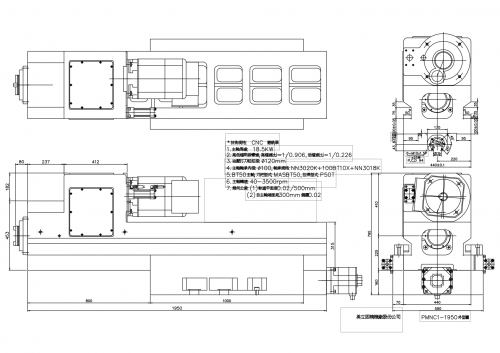

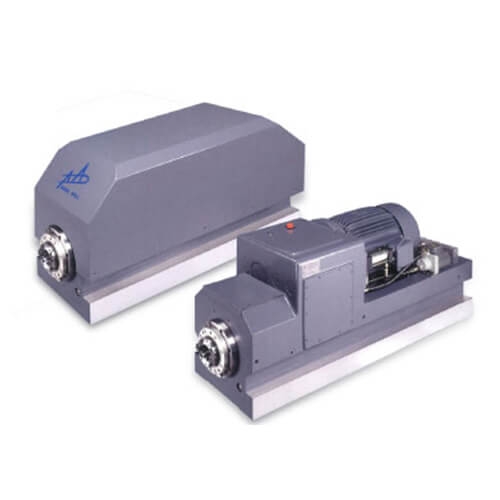

PMNC-I
PMNC-I
CHARACTERISTIC
For column type N.C machining center vertical or horizontal milling head.
Specification
| Model | PMNC-I |
| Spindle Motor | 18.5 kw / 22 kw |
| Spindle Taper | BT-50# |
| Guide way length | 1450 mm / 1850 mm /2150 mm |
| Ratio of spindle speed | H:I = 1/0.906, L:I = 1/0.226 |
| Spindle Speed | 4500 RPM |
| Hyd. Cylinder dia. for tool release | ф 100 mm |
| Spindle bearing I.D. | ф 100 mm |
| Pull rod type | Gripper Type |
| Weight | 1000 kg |
