Horizontal Milling Machine
HM Series

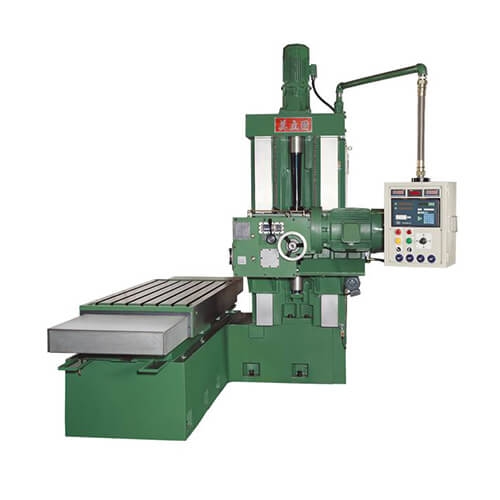

HM-1500
Standard equipment
Tool box with tool
Dust guard cover
Optional equipment
Index table
Vertical&horizontal milling head unit
Linear scale
Draw bar
Specification
| Model No. | HM-1500 | HM-2000 | HM-2500 |
| Table size (L x W) | 600 x 1800 mm | 800 x 2000 mm | 800 x 2500 mm |
| Longitudinal travel | 1500 mm | 2000 mm | 2500 mm |
| Vertical travel | 700 mm | 700 mm | 700 mm |
| T slots | 22 x 34 mm x 5 | 22 x 34 mm x 7 | 22 x 34 mm x 7 |
| Rapid speed of table | 3600 mm/min | 3600 mm/min | 3600 mm/min |
| Cutting speed of table | 110 ~ 1500 mm/min | 110 ~ 1500 mm/min | 110 ~ 1500 mm/min |
| Max load of table | 3000 kg | 3500 kg | 4500 kg |
| Main spindle nose | NT-50# | NT-50# | NT-50# |
| Spindle speed | 80 ~795 rpm/9step | 80 ~795 rpm/9step | 80 ~795 rpm/9step |
| Vertical speed | 100 ~ 1000 mm/min | 100 ~ 1000 mm/min | 100 ~ 1000 mm/min |
| Cross speed | 50 ~ 500 mm/min | 50 ~ 500 mm/min | 50 ~ 500 mm/min |
| Horizontal spindle power | 10 HP | 10 HP | 10 HP |
| Table longitudinal feed | 3 HP AC | 3 HP AC | 5 HP AC |
| Lubricating oil pump | 3 HP DC | 3 HP DC | 3 HP DC |
| Coolant pump | 1/4 HP | 1/4 HP | 1/4 HP |
| Machine weight | 7 tons | 9 tons | 10 tons |
