Milling Head Units

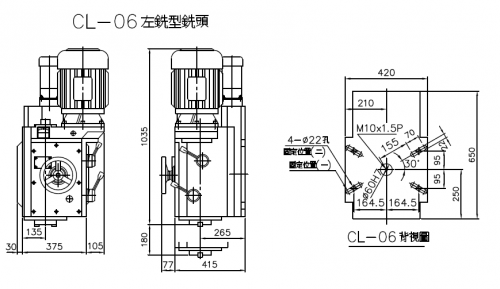

CL-06
CL-06
【Optional equipment】
●Pneumatic Tool Lock
●CL-06, CL-09, With 3/ AC motor for feeding device
●Ball Screw
●Air Balancer
●Max. Cutter Dia. Can be up to 315 mm
Specification
| Spindle Motor | 10 HP x 4P | |
| Spindle Taper | NT-50# | |
| Spindle End O.D. | ф128.57 | |
| Spindle Speed | 6 step | |
| Spindle Speed (RPM) | 50 HZ | 76.120.168.250.335.501 |
| 60 HZ | 93.145.203.303.406.608 | |
| Max. Cutter Dia. | 200 mm | |
| Work Travel | 300 mm | |
| AC Motor | 1/4 HP x 1/25 | |
| Rapid Speed | 360 mm/min | |
| Hand Wheel | 2 mm/rev | |
| Weight | 420 kg | |
