Milling Head Units

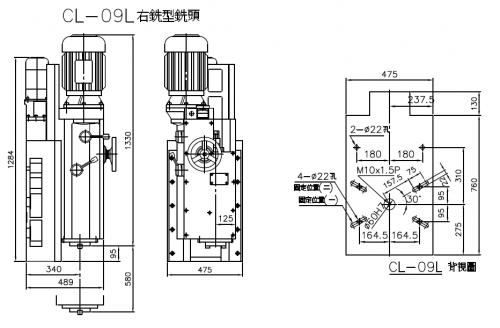

CL-09L
CL-09L
【Option】
●Pneumatic Tool Lock
●CL-06, CL-09, With 3/ AC motor for feeding device
●Ball Screw
●Air Balancer
●Max. Cutter Dia. Can be up to 315 mm
Specification
| Spindle Motor | 15 HP x 4P | |
| Spindle Taper | NT-50# | |
| Spindle End O.D. | ф128.57 | |
| Spindle Speed | 9 step | |
| Spindle Speed (RPM) | 50 HZ | 66.83.116.166.216.291.375.493.662 |
| 60 HZ | 80.100.140.200.260.350.450.592.795 | |
| Max. Cutter Dia. | 250 mm | |
| Work Travel | 580 mm | |
| AC Motor | 3/4 HP x 1/25 | |
| Rapid Speed | 540 mm/min | |
| Hand Wheel | 2 mm/rev | |
| Weight | 740 kg | |
