COLUMN MOVING SURFACE GRINDER
COLUMN MOVING SURFACE GRINDER/DSG-2460AND

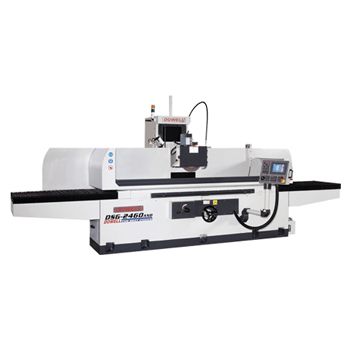

DSG-2460AND

Machine structure is manufactured from high quality Meehanite class FC cast iron
Spindle motor select high stability Siemens motor
X and Z axis guide way use double V design
The large spindle use CP6 precision angular contact ball bearing (Front 4 and Rear 2) ensure heavy grinding ability.
Y and Z axis use precision ball screw
Y axis use AC servo motor and go with MPG reach high feeding accuracy
Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
AND control: The operation modes are easy and simple for user to set up auto grinding.

Specification

3AH
Longitudinal hydraulic cross motor device rapid up & down motorized - MPG

  • 3AH

AND:PLC automatic in 3 axes(x,y,z)

  • option

  • option

  • option

  • DESCRIPTION UNIT DSG-3A2460H DSG-2460AND
    General Capacity Table size (lxw) mm 600x1550
    Max.grinding length mm 1500
    Max.grinding width mm 600
    Distance from table surface to spindle center mm 600/800(opt.)
    Standard mag. Chuck size mm 600x1500
    Hydraulic traverse mm 1600
    Hydraulic feed (table speed) approx. m/min 3~25
    Cross Movement Manual travel mm 675
    Auto cross feed mm 650
    Hand feed per revolution mm 5
    Hand feed per graduation mm 0.02
    Continuous cross feed (approx.)50/60HZ mm/min 1000
    Increment cross feed mm/min 1~20
    Vertical Downfeed Rapid traverse (approx.) mm/min 1000
    Hand feed per revolution mm/MPG   0.1mm/MPG
    Hand feed per graduation mm/MPG   0.001mm/MPG
    Auto downfeed rate mm   0.001~0.099
    Jog mm   0.001
    Pre-set spark out times     0.9(passes)
    Manual pulse generator   x1, x5, x10
    Grinding Wheel Wheel size (diax width xbore) mm Ø405x50x127
    Spindle speed (50/60HZ) r.p.m 1450/1750
    Motor Spindle drive motor HP 10
    Hydraulic motor HP 5
    Cross feed motor HP 1/4 (SIEMENS)
    Rapid hand elevatipn servo motor KW 1
    Weight Net weight / gross weight (approx.) kg 7500/9000
    Packing Size Length × width × height mm 4500x2230x2280

    ※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

STANDARD ACCESSORIES

  • Grinding wheel
  • Wheel flange with extractor
  • Balancing arbor
  • Diamond dresser and base
  • Working lamp
  • Leveling plate
  • Leveling screw & nut
  • Tool box with tools
  • Operation manual & Inspection report
  • Touch-up paint
