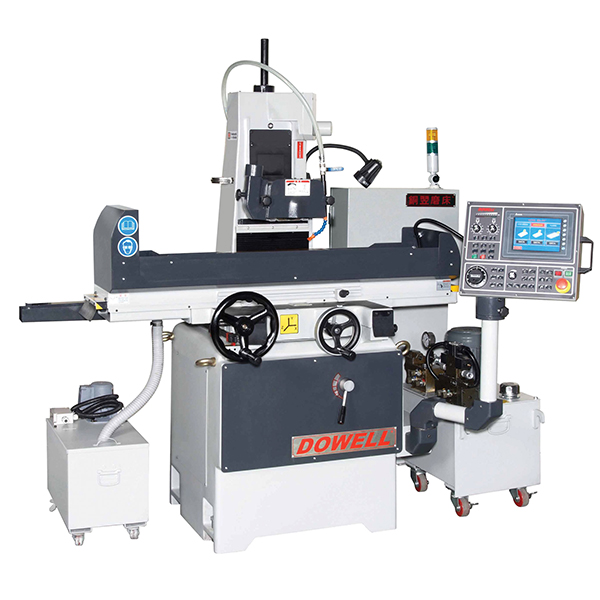

Machine structure is manufactured from high quality Meehanite class FC cast iron
Direct type spindle use high precision P4 bearing and V3 grade spindle motor provide excellent rigidity and stability
Saddle guide way use double V designed, coated with Turcite-B and hand-scraped provide smooth movement
Y and Z axis use precision ball screw
Y axis use AC servo motor and go with MPG reach high feeding accuracy
Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
AND control: The operation modes are easy and simple for user to set up auto grinding.
AND:PLC automatic in 3 axis (x.y.z)
AND control
-
-
-
-
DESCRIPTION UNIT DSG-618AND DSG-818AND General Capacity Table size (lxw) mm 150x460 200x460 Max.grinding length mm 475 Max.grinding width mm 160 210 Distance from table surface to spindle center mm 400 Standard mag. Chuck size mm 150x450 200x450 Longitudinal Movement Manual travel mm 485 Hydraulic traverse mm 485 Hydraulic feed (table speed) approx. m/min 1~25 Cross Movement Manual travel mm 180 210 Auto cross feed mm 180 210 Hand feed per revolution mm 5 Hand feed per graduation mm 0.02 Continuous cross feed (approx.)50/60HZ mm/min 510/650 Increment cross feed mm/min 0.5~10 Vertical Downfeed Slow traverse (approx.) mm/min 29 Hand feed per revolution mm/MPG 0.1mm/MPG Hand feed per graduation mm/MPG 0.001mm/MPG Auto downfeed rate mm 0.001~0.099 Jog mm 0.001 Pre-set spark out times 0.9(passes) Manual pulse generator x1, x5, x10 Grinding Wheel Wheel size (diax width xbore) mm Ø180x13x31.75 Spindle speed (50/60HZ) r.p.m 3000/3600 Motor Spindle drive motor HP 2 Hydraulic motor HP 1 Cross feed motor W 25 Rapid hand elevatipn servo motor W 400 Weight Net weight / gross weight (approx.) kg 910/1040 Packing Size Length × width × height mm 1560x1300x2200 ※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
-
STANDARD ACCESSORIES
- Grinding wheel
- Wheel flange with extractor
- Balancing arbor
- Diamond dresser and base
- Working lamp
- Leveling plate
- Leveling screw & nut
- Tool box with tools
- Operation manual & Inspection report
- Touch-up paint
