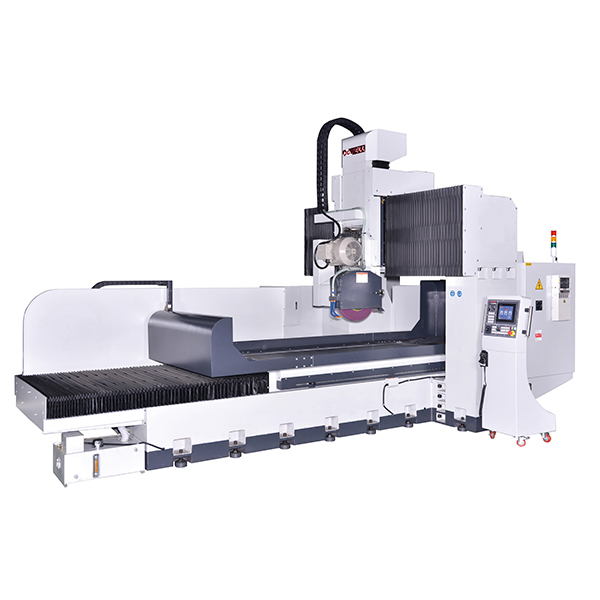

Specification
| DESCRIPTION | UNIT | DSG-40100AND |
|---|---|---|
| Table size (lxw) | mm | 1000x2500 |
| Max.grinding length | mm | 2500 |
| Max.grinding width | mm | 1000 |
| Distance from table to spindle center (Horizontal) | mm | 920, opt. 1120 |
| Distance from table to spindle center (Vertical) Opt. | mm | 750, opt.950 |
| Table speed | m/min | 2~25 |
| Table guide way | - | V and V way |
| Distance between two column | mm | 1400 |
| Continuous cross feed | m/min | 1200 |
| Auto cross feed increment | mm | 5~30 |
| Cross hand feed per revolution | mm | x1, x10, x100 (MPG) / 0.1, 1, 10 |
| Cross hand feed per graduation | mm | x1, x10, x100 (MPG) / 0.001, 0.01, 0.1 |
| Vertical hand feed per revolution | mm | x1, x10, x100 (MPG) / 0.1, 1, 10 |
| Vertical hand feed per graduation | mm | x1, x10, x100 (MPG) / 0.001, 0.01, 0.1 |
| Vertical rapid traverse | mm/min | 1200 |
| Spindle motor (Horizontal) | HP | 20 |
| Spindle motor (Vertical )Opt. | HP | Std. 7.5 Opt. 10 |
| Vertical feed motor | - | 1KW Servo motor |
| Cross feed motor | - | 1KW Servo motor |
| Hydraulic motor | HP | 10 |
| Grind wheel DxWxB (Horizontal) | mm |
Std. 500x50x203 |
| Grind wheel DxWXB (Vertical)Opt. | mm | 300x38x127 |
| Table loading | kg | 3000 |
| Machine weight | kg | 20000 |
| Machine dimensiors (LxWxH) | m | 8.2x3.5x3.5 |
※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
