NC／CNC SURFACE GRINDER

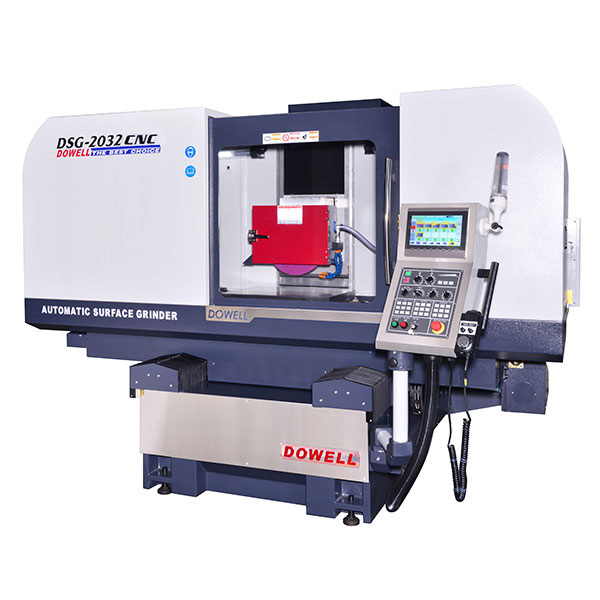

NC／CNC SURFACE GRINDER ／ DSG-2032CNC
DSG-2032CNC
“MEEHANITE” casting.
stability.
Machine base fully supported design creating high rigidity structure.
3 axis uses high precision ballscrew AC servo motor drive.
X axis use double V guide way design and driven by hydraulic
Y 、 Z axis uses high stiffness and rigidity linear roller guideways.
High precision spindle.
Closure type water-proof guard.
Specification
Control system
-
MITSUBISH (STD.)
-
FANUC / (OPT.)
Dressing Select
Grinding Select
| DESCRIPTION | UNIT | DSG-2032CNC | |
|---|---|---|---|
| General Capacity | Table size (L x W) | mm | 800x500 |
| Distance from table surface to spindle center | mm | 680 | |
| Longitudinal Movement |
Hydraulic feed （table speed ）approx | m/min | 5~25 |
| Servo motor feed （table speed ）approx | m/min | 1~15 | |
| Belt feed(table speed) approx | m/min | 1~23 | |
| Cross Movement | Increment cross feed | mm/min | 1000 |
| (M.P.G) | mm | X1:0.001 X5:0.005 X10:0.1 |
|
| Vertical Downfeed | Increment cross feed | mm/min | 1000 |
| (M.P.G) | mm | X1:0.001 X5:0.005 X10:0.1 |
|
| Grinding Wheel | Wheel size (Dia x Width x Bore) | mm | 405×50×127 |
| Spindle speed (50/60HZ) | r.p.m. | 1450/1750 | |
| Motors | Spindle drive motor | HP | 15 |
| Hydraulic motor | HP | 5 | |
| Y servo motor | KW | 1 | |
| Z servo motor | KW | 1 | |
| X servo motor (opt.) | KW | 2 | |
| Weight | Net weight/gross weight (approx.) | kg | 5500/6200 |
| Packing Size | Length x Width x Height | cm | 400×228×228 |
※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.
