Sliding Single-column EDM

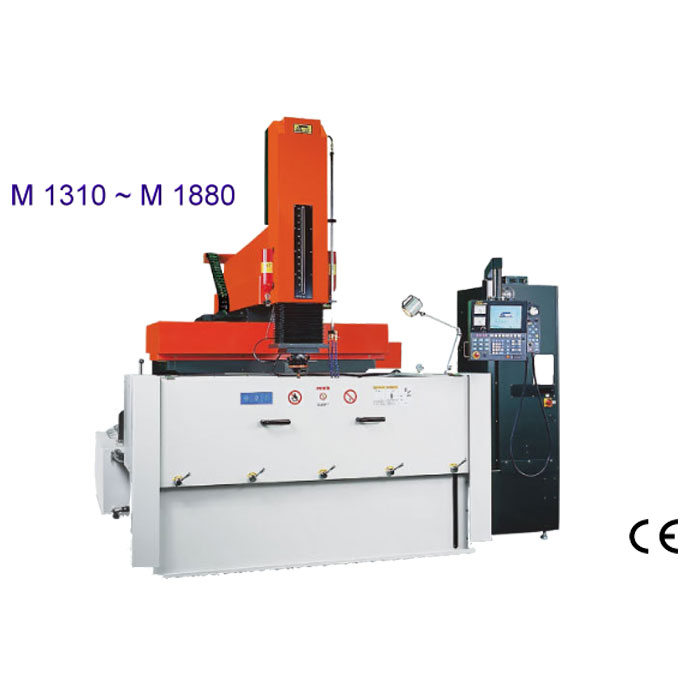

CNC Series : Sliding Single-column EDM (Ram type)
M1310 ~ M1510
The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Specification
Specification | M 1310 | M 1470 | M 1510 |
| X, Y-Travel | 1300 x 1000 mm | 1400 x 700 mm | 1500 x 1000 mm |
| Z-Travel | 600 mm | 500 mm | 600mm |
| Table Dimension | 1430 x 1100 mm | 1850 x 1000 mm | 1580 x 1100 mm |
| Work Tank Dimension | 2010 x 1700 x 800 mm | 2010 x 1350 x 625 mm | 2070 x 1700 x 800 mm |
| Max. Table-Quill Distance | 750~1350mm | 550~1050mm | 750~1350mm |
| Max. Electrode Weight | 500 kgs | 450 kgs | 500 kgs |
| Max. Table Loading | 11000 kgs | 8500 kgs | 11000 kgs |
| Dielectric Tank Capacity | 2800 Litre | 2000 Litre | 3200 Litre |
| Filters | 8 pcs | 8 pcs | 8 pcs |
| Machine Weight | 13100 kgs | 8100 kgs | 13600 kgs |
| Machine Height | 3370 mm | 3370 mm | 3670 mm |
| Ground Area |  |  |  |
| Nominal Current | 60A / 5A, 90A / 5A, 120A / 5A |
| Input Voltage | 220 / 380 / 415 / 440V |
| Connected Rating | 7KVA / 10KVA / 13KVA |
| Max. Stock Removal Rate | 400 / 600 / 800mm³/min |
| Best Surface Roughness | Ra ≦ 0.1μm |
| Best Electrode Wear Rate | < 0.2% ( with specific equip.< 0.1%) |
Standard accessories | Additional Equipment |
| Precision Electrode Clamps | ATC (Auto Tool Change) |
| Piezoelectric Light | C-Axis |
| Work Fastening Tool Kit | "EROWA" Chuck-Swiss |
| Magnetic Induction Oil Nozzle Base | 3R System Chuck-Swedish |
| Operation Manuals | Di-Electric Cooler |
| M.F.D (Fine Mirror Finish) | Electric Oil |
| X, Y, Z Axis Linear Scales (1μm) | Permanent Magnetic Chuck |
| Automatic Fire Extinguisher |
