PNC Series
PNC Series

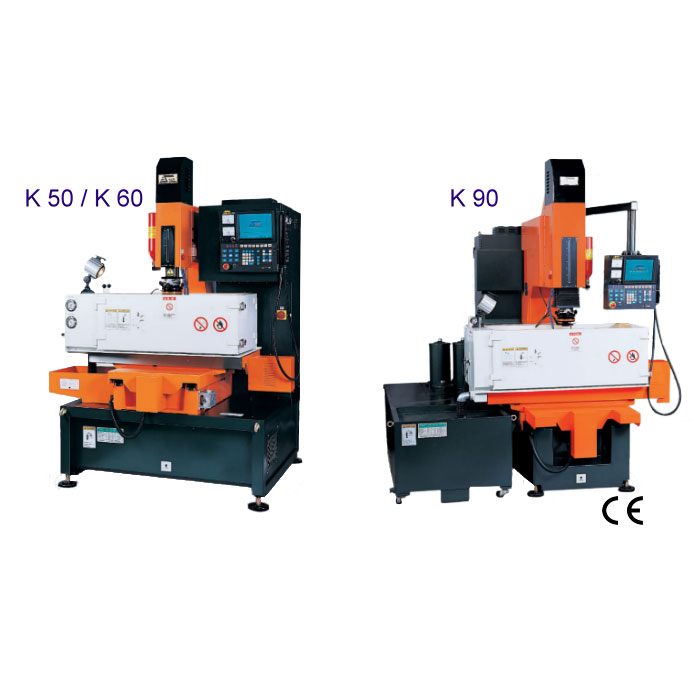

K 50 / K60 / K90
The X. Y& Z axis utilize AC servo motor.
Auto-positioning and multi cavities machining.
Program function
The Circle Angle of Sparking is lower than 0.02mm
The best surface roughness (Ra) is better than 0.1 µm.
High speed and long distance jumping.
Special Rib shape machining function.
Specification
|
Specification
|
K 50
|
K 60
|
K 90
|
| X, Y-Travel |
300 x 200 mm
|
400 x 300 mm
|
500 x 400 mm
|
| Z-Travel |
300 mm
|
300 mm
|
300 (290) mm
|
| Table Dimension |
600 x 360 mm
|
660 x 380 mm
|
820 x 500 mm
|
| Work Tank Dimension |
760 x 490 x 270 mm
|
1040 x 580 x 320 mm
|
1100 x 700 x 350 mm
|
| Max. Table-Quill Distance |
490 mm
|
500 mm
|
710 mm
|
| Max. Electrode Weight |
40 kgs
|
50 kgs
|
100 kgs
|
| Max. Table Loading |
600 kgs
|
800 kgs
|
1200 kgs
|
| Dielectric Tank Capacity |
200 Litre
|
400 Litre
|
400 Litre
|
| Filters |
2 PCS
|
2 PCS
|
3 PCS
|
| Machine Weight |
1650 kgs
|
1900 kgs
|
2500 + 210 kgs
|
| Machine Height |
2240 mm
|
2260 mm
|
2600 - 2330mm
|
| Ground Area |  |
 |
 |
| Nominal Current |
30A / 5A, 45A / 5A, 60A / 5A
|
60A / 5A, 90A / 5A, 120A / 5A
|
| Input Voltage |
220 / 380 / 415 / 440V
|
220 / 380 / 415 / 440V
|
| Connected Rating |
4KVA / 5.5KVA / 7KVA
|
7KVA / 10KVA / 13KVA
|
| Max. Stock Removal Rate |
200 / 300 / 400 mm³ / min
|
400 / 600 / 800mm³/min
|
| Best Surface Roughness |
Ra ≦ 0.1μm
|
Ra ≦ 0.1μm
|
| Best Electrode Wear Rate |
< 0.2% ( specific equip.< 0.1%)
|
< 0.2% ( specific equip.< 0.1%)
|
|
Standard accessories
|
Additional Equipment
|
| Precision Electrode Clamps | "EROWA" Chuck-Swiss |
| Piezoelectric Light | 3R System Chuck-Swedish |
| Work Fastening Tool Kit | Di-Electric cooler |
| Magnetic Induction Oil Nozzle Base | Electric Oil |
| Operation Manuals | Permanent Magnetic Chuck |
| X, Y, Z Axis Linear Scales (1μm) | M.F.D (Fine Mirror Finish) |
| Automatic Fire Extinguisher |
