Sliding Single-column EDM

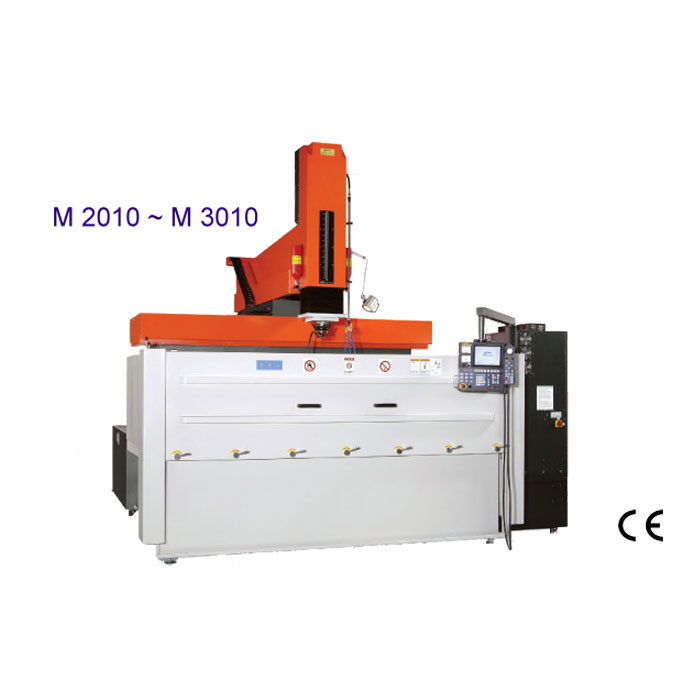

CNC Series : Sliding Single-column EDM (Ram type)
M2010 ~ M3010
The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Specification
|
Specification
|
M2010
|
M2210
|
M3010
|
| X, Y-Travel |
2000 x1000 mm
|
2200 x 1000 mm
|
3000 x1000 mm
|
| Z-Travel |
600 mm
|
600 mm
|
600 mm
|
| Table Dimension |
2250 x 1100 mm
|
2250 x 1100 mm
|
3100 x 1100 mm
|
| Work Tank Dimension |
2510 x 1700 x 800 mm
|
2710 x 1700 x 800 mm
|
3790 x 1700 x 800 mm
|
| Max. Table-Quill Distance |
660~1260 mm
|
660~1260 mm
|
750~1350 mm
|
| Max. Electrode Weight |
500 kgs
|
500 kgs
|
500 kgs
|
| Max. Table Loading |
12000 kgs
|
13000 kgs
|
16000 kgs
|
| Dielectric Tank Capacity |
3800 Litre
|
4200 Litre
|
5600 Litre
|
| Filters |
8 pcs
|
12 pcs
|
12 pcs
|
| Machine Weight |
12600 kgs
|
13600 kgs
|
20600 kgs
|
| Machine Height |
3680 mm
|
3680 mm
|
3850 mm
|
| Ground Area |  |
 |
 |
| Nominal Current |
60A / 5A, 90A / 5A, 120A / 5A
|
| Input Voltage |
220 / 380 / 415 / 440V
|
| Connected Rating |
7KVA / 10KVA / 13KVA
|
| Max. Stock Removal Rate |
400 / 600 / 800mm³/min
|
| Best Surface Roughness |
Ra ≦ 0.1μm
|
| Best Electrode Wear Rate |
< 0.2% ( specific equip.< 0.1%)
|
|
Standard accessories
|
Additional Equipment
|
| Precision Electrode Clamps | ATC (Auto Tool Change) |
| Piezoelectric Light | C-Axis |
| Work Fastening Tool Kit | "EROWA" Chuck-Swiss |
| Magnetic Induction Oil Nozzle Base | 3R System Chuck-Swedish |
| Operation Manuals | Di-Electric Cooler |
| M.F.D (Fine Mirror Finish) | Electric Oil |
| X, Y, Z Axis Linear Scales (1μm) | Permanent Magnetic Chuck |
| Automatic Fire Extinguisher |
