Features
a. Horizontal type feed, the cutting amount is great. Save time and effort, reduce cost, and improve the output.
b. Hydraulic auto feed is steady and fast.
c. Hidden saw, with low noise and the security is high.
d. Touch screen, simple operation.
e. Floating feed, feeding does not hurt the surface of the material also has a slightly curved feeding.
f. The auto cooling, the saw blade is more durable, cut face smooth and no burr.
g. Clamp with two way force, top and two sides, round square angle tube don't need special clamp, cutting point away in min resistance point, cutting fast, high output and save cost.
h. Install saw blade overload protection.
Standard Accessories:
a. Basic Machine
b. HSS saw blade 300x2.0x32x1 pc
c. Tool box 1 set
d. Cutting oil x1 set
Optional Accessories
a. Material shelf
b. Inverter
c. NC servo feeding system

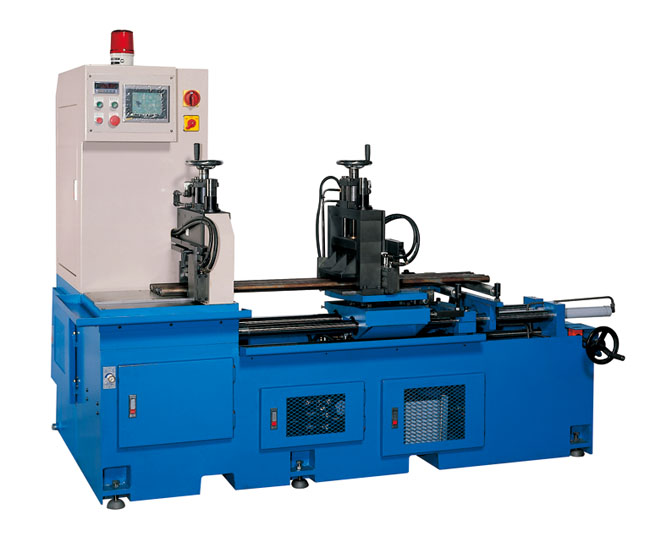

| Model | CH-400-3AE |
| Cutting Motor | 5HP 4/8P |
| Cutting Speed | 25/50 RPM |
| Cutting Capacity | 100x300 mm |
| Cooling Pump | 1/8 HP |
| Used Circular Saw Blade | 250-400 mm |
| Hydraulic Motor | 2 HP |
| Feeding Length | 6-700mm per time, it can be feed 3 times(max. 2100mm) |
| Servo Motor | -- |
| Machine Dimension(mm) | L 2750x W1300x H1800 mm |
| Machine Weight(kg) | 2000 kgs |
