ALUMINUM CUTTING MACHINE／ SEMI AUTOMATIC TYPE

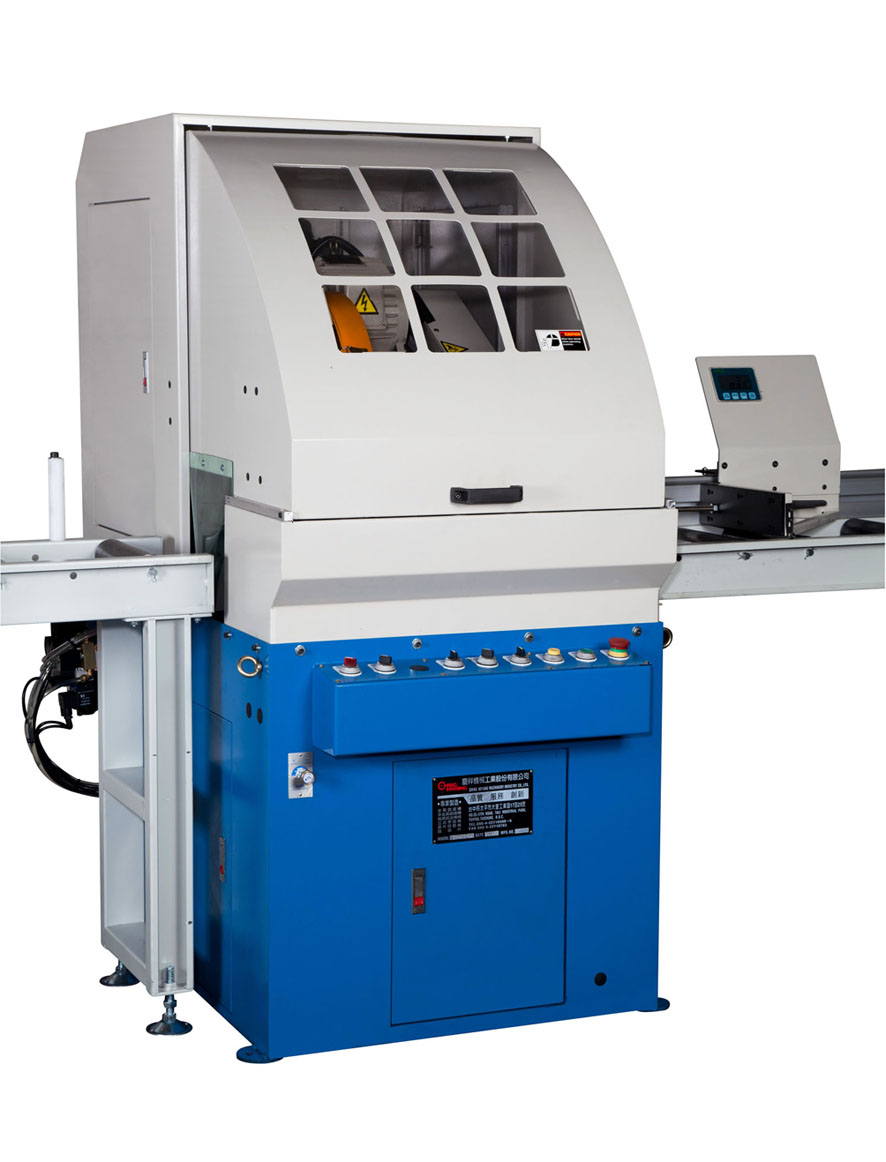

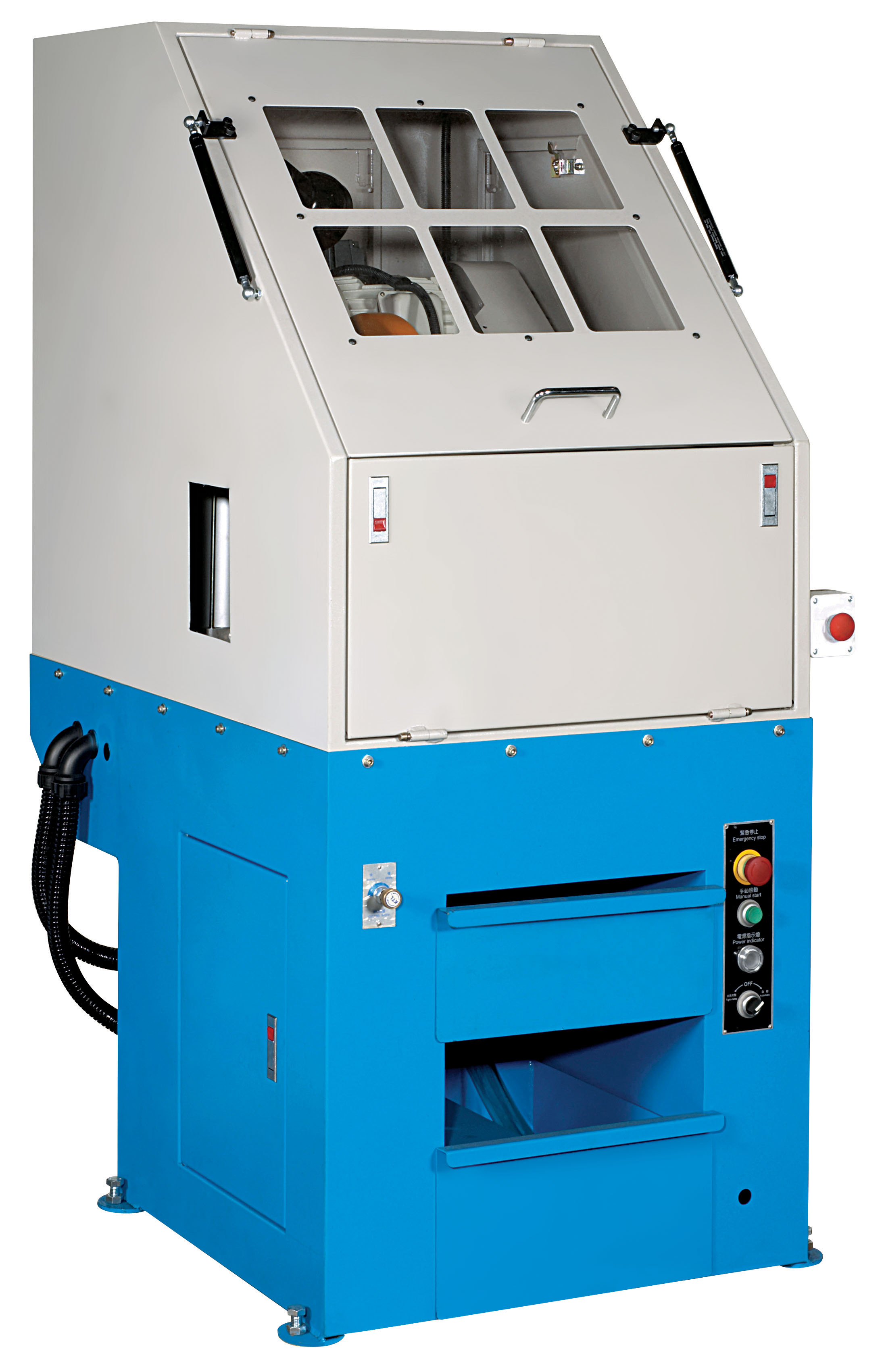

Heat Treatment Steel Cutting Machine
C-300-2AS,CH-400-2AS
Features
A. It can cut the heat treatment flinty material.
B. It can install the diamond grinding wheel to cut.
C. Picks the automatic a clamp, the automatic reciprocation cuts, shuts off the surface, does not become dark.
D. The covering type is designed, cut the liquid and does not overflow completely.
Standard Accessories
a. Basic machine
b. Picks the automatic a clamp system
c. The grinding wheel automatic tool feed and withdrawal.
d. Grinding wheel
e. Water cools spraying system
f. Tool box*1 set
Optional Accessories
a. Material shelf
b. Inverter
Specification
| Model | C-300-2AS | CH-400-2AS |
| Cutting Capacity | 80 mm | 135 mm |
| Cutting Angle | 90 degree | 90 degree |
| Cutting Motor | 5 HP 2 P | 15 HP 4 P |
| Cutting Speed | 3500 RPM | 2200 RPM |
| Used Saw Blade | 305*2t*25.4mm | 405*3.0*25.4 |
| Table Area | 210*110mm | 250*130mm |
| Machine Dimension | 800*1100*1700mm | 1750*860*1680mm |
| Machine Weight | 320 kgs | 480 kgs |
