CIRCULAR SAWING MACHINE／AIR AUTOMATIC TYPE

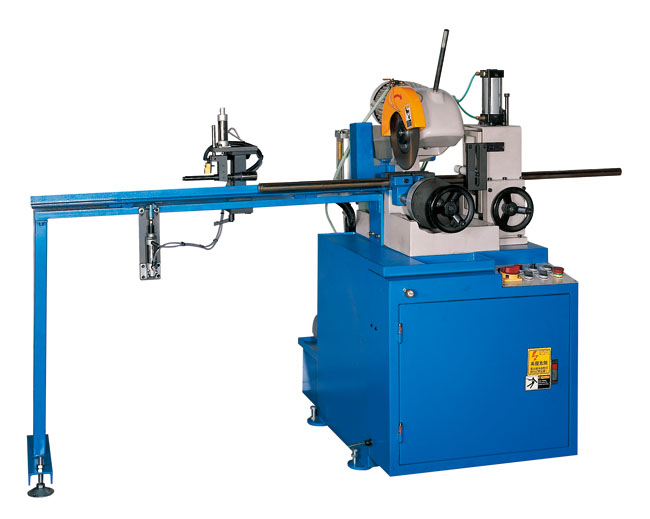

Air Automatic Type Circular Sawing Machine
C-325-4A
Features
Auto feed, clamping, cutting and removal
Standard Accessories
a. HSS saw blade 300x1.6x32x1 pc
b. Cutting oilx1 bottle(500c.c.)
c. Toolsx1 set
d. Clampx1 set
Specification
| Model | C-325-4A |
| Head rotation angle | 90 degree |
| Sawing Capacity-Solid bar | dia. 40mm |
| Sawing Capacity-Square tube | 80x80 |
| Sawing Capacity-Round tube | 80x80 |
| Main Motor |
A: 3HP/2HP 2P/4P B: 2HP/1.5HP 4P/8P |
| Cutting Speed |
A: 100/50 rpm B: 50/25 rpm |
| Cooling Pump | 1/8 HP |
| Max. Clamping Capacity | 110 mm |
| Used Saw Blade | HSS saw blade 250-325mm |
| Min. outer diameter for feed | 15 mm |
| Max. feed speed |
max. 20M/min |
| Working Length |
A: 50~1500 mm B: 50~3000 mm |
| Machine Weight(kg) | 450 kgs |
