Gun Drilling Machine
Gun Drilling Machine

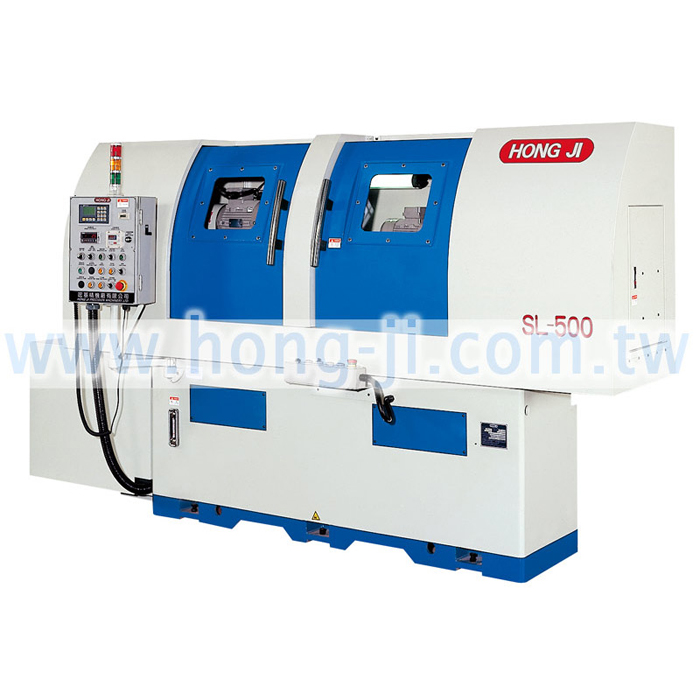

SL-500
SL-500 model gun drilling machine is designed with automatic lubrication pump provides you effective drilling in the production process. In order to make you feel more convenient during working, we have outer controller and MPG for you. The servo motor of Z-axis helps you drill stroke effectively, and the speed ranges from 10 to 150 mm/min. The hydraulic system provides cooling function to the machine, and the coolant tank has 800L of the capacity. Please feel free and contact us for more information today.
Specification
Capacity
- Number of drill spindle: 1 No
- Range of drilling dia.: 3 ~ 12mm ( option:5~25mm )
- Max. depth of drilling: 500 mm
Speed
- Drill feed range: 10 ~ 500 mm/min
- Spindle speed range: 6,000 rpm
Hydraulic system
- Coolant pump pressure range: 10~100 kg/cm²
- Pump output range: 30~60 L/min
- Coolant tank capacity: 1000 L
Working table stroke
- Effective drill stroke (Z-Axis): 500mm
Drive motor
- Spindle motor: 5hp ( option:10hp )
- Z-Axis: 1hp
- Workpiece driven motor: 1/4hp
- Coolant pump: 7.5hp ( option:10hp )
- Automatic lubrication: 51w
- Total machine power: 15hp
- Net weight: 2,000 kgs
- Machine dimensions(Approx): 3,300 x 2,800 x 1,700mm
Standard accessories
- Paper filter
- Magnetic separator
- Chip and oil separator system
- High pressure oil pump
- Auto lubrication system
- Protecting drill torsion system
- Outer oil tank/Oil level gauge
- Tranformer
- Leveling screws & block
- Tool box / work light / alarm light
- Mechanical / Electrical operation manual
Special accessories
- Oil cooler
- Coolant oil
- Gundrill
- Guide bush
- Rubber bush
- Automatic Voltage stabilizer
- Fully enclosed guard
- Gundrill grinder
- Safety door interlock
- Oil mist collector
- Filtration housing
- Centrifuge
Order Information:
- Minimum Order: Negotiable
- Branded Product
- FOB: Taichung or Keelung Port, Taiwan
