Gun Drilling Machine
Gun Drilling Machine

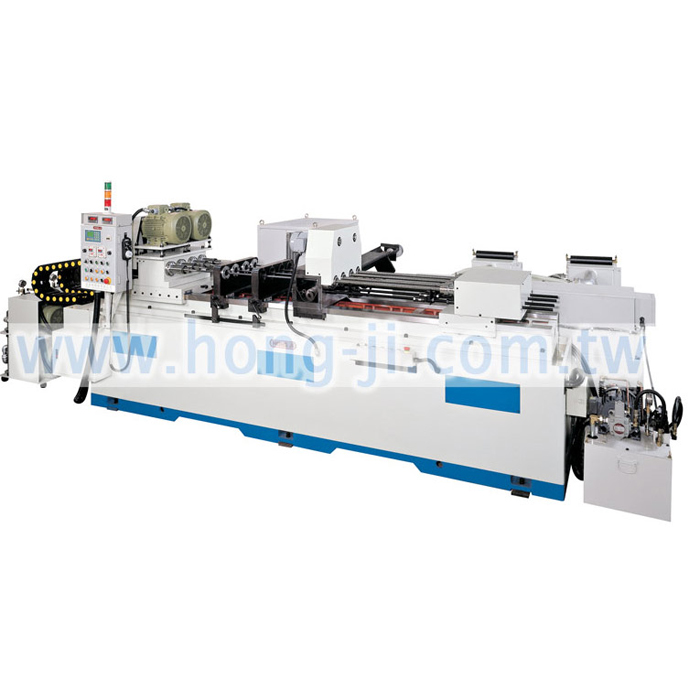

SLY-1000D
Special for round bar material. (Four spindles hydraulic supporter, workpieces driven by rear)
With four sipndles, the machine offers mass production, job-doing efficiently.
With hydraulic V-type supporters, operator just needs to put workpiece on the rack between the V-type supporters, then workpieces will be fixed auotmatically.
With movable rear fixture base, the base can be moved per the length of round bar.
Equipped with the motor in the rear of machine, the motor drives workpiece counter-rotating to increase concentricity
Specification
Capacity
- Number of drill spindle: 4 Nos
- Range of drilling dia.: 3 ~ 12mm ( 5 ~ 25mm )
- Max. depth of drilling: 1,000mm
Speed
- Drill feed range: 10 ~ 500 mm/min
- Spindle speed range: 0 ~ 6,000 rpm
Hydraulic system
- Coolant pump pressure range: 10~100kg/cm2;
- Pump output range: 30~60 L/min
- Coolant tank capacity: 1400 L
Working table stroke
- Effective drill stroke (Z-Axis): 1,000mm
Drive motor
- Spindle servo motor: 7.5 hp x 2 10hp x 2
- Z-Axis: 2hp
- Chip screw: 1/8hp
- Workpiece driven motor: 1hp
- Hydraulic supporter motor: 2hp
- Coolant pump: 10hp x 2
- Automatic lubrication: 51w
- Total machine power: 40hp / 50hp
- Net weight: 5,000kgs
- Machine dimensions(Approx): 3,800 x 3,500 x 1,700mm
Standard accessories
- Paper filter
- Magnetic separator
- Chip and oil separator system
- High pressure oil pump
- Auto lubrication system
- Protecting drill torsion system
- Outer oil tank/Oil level gauge
- Tranformer
- Leveling screws & block
- Tool box / work light / alarm light
- Mechanical / Electrical operation manual
Special accessories
- Oil cooler
- Coolant oil
- Gundrill
- Guide bush
- Rubber bush
- Automatic Voltage stabilizer
- Fully enclosed guard
- Gundrill grinder
- Safety door interlock
- Oil mist collector
- Filtration housing
- Centrifuge
