Aluminum & Copper Alloy Series

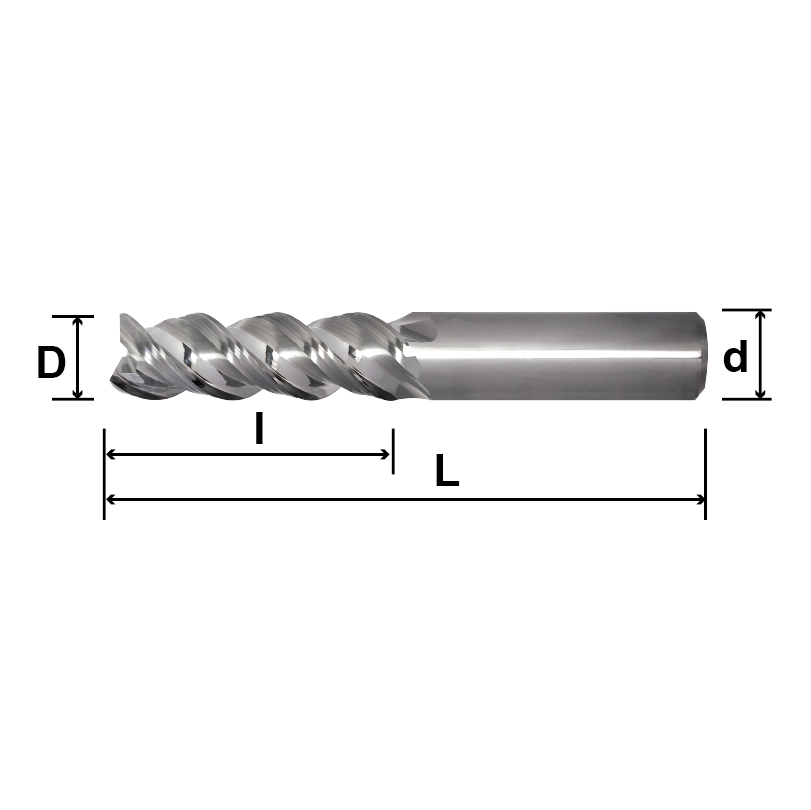

AE (For Aluminum Alloy), 3 Flutes
AE
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|

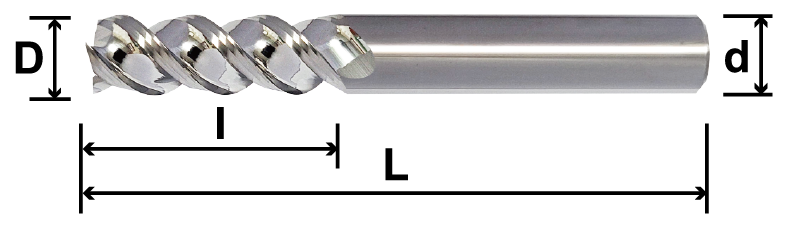

Model No. |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
|
2 AE 0103 |
1 |
3 |
4 |
50 |
|
2 AE 0153 |
1.5 |
4.5 |
4 |
50 |
|
2 AE 0203 |
2 |
6 |
4 |
50 |
|
2 AE 0203D6 |
2 |
6 |
6 |
50 |
|
2 AE 0253 |
2.5 |
8 |
4 |
50 |
|
2 AE 0253D6 |
2.5 |
8 |
6 |
50 |
|
2 AE 0303D3 |
3 |
10 |
3 |
50 |
|
2 AE 0303 |
3 |
10 |
4 |
50 |
|
2 AE 0303D6 |
3 |
10 |
6 |
50 |
|
2 AE 0353 |
3.5 |
11 |
4 |
50 |
|
2 AE 0353D6 |
3.5 |
11 |
6 |
50 |
|
2 AE 0403 |
4 |
12 |
4 |
50 |
|
2 AE 0403D6 |
4 |
12 |
6 |
50 |
| 2 AE 0453 | 4.5 | 13 | 6 |
50 |
|
2 AE 0503 |
5 |
15 |
6 |
50 |
|
2 AE 0603 |
6 |
18 |
6 |
50 |
|
2 AE 0703 |
7 |
21 |
8 |
60 |
|
2 AE 0803 |
8 |
24 |
8 |
60 |
|
2 AE 0903 |
9 |
27 |
10 |
75 |
|
2 AE 1003 |
10 |
30 |
10 |
75 |
|
2 AE 1103 |
11 |
33 |
12 |
75 |
|
2 AE 1203 |
12 |
36 |
12 |
75 |
|
2 AE 1403 |
14 |
45 |
14 |
100 |
| 2 AE 1403D16 | 14 | 45 | 16 |
100 |
|
2 AE 1603 |
16 |
50 |
16 |
100 |
|
2 AE 2003 |
20 |
50 |
20 |
100 |
