638# Heat Treatment Dry Cutting Processing

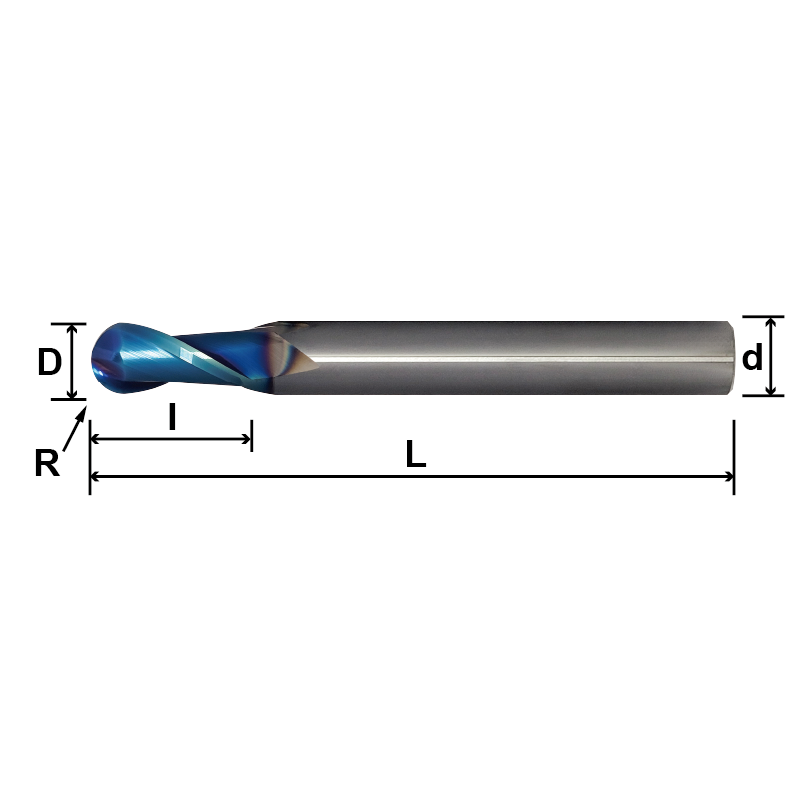

SLB2／MLB2 (Ball Nose,Long Shank),2 Flutes
SLB2 / MLB2
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
R Radius |
D Diameter |
I Flute Length |
d Shank Diameter |
L Overall Length |
| 0.5R |
1 |
2 |
4 |
75 |
| 0.5R | 1 | 2 | 6 |
75 |
| 0.5R | 1 | 2 | 4 |
100 |
| 0.5R | 1 | 2 | 6 |
100 |
| 0.75R | 1.5 | 3 | 4 |
75 |
| 0.75R | 1.5 | 3 | 6 |
75 |
| 0.75R | 1.5 | 3 | 4 |
100 |
| 0.75R | 1.5 | 3 | 6 |
100 |
| 1R | 2 | 4 | 4 |
75 |
| 1R | 2 | 4 | 6 |
75 |
| 1R | 2 | 4 | 4 |
100 |
| 1R | 2 | 4 | 6 |
100 |
| 1.25R | 2.5 | 5 | 4 |
75 |
| 1.25R | 2.5 | 5 | 6 |
75 |
| 1.25R | 2.5 | 5 | 4 |
100 |
| 1.25R | 2.5 | 5 | 6 |
100 |
| 1.5R | 3 | 6 | 3 |
75 |
| 1.5R | 3 | 6 | 4 |
75 |
| 1.5R | 3 | 6 | 6 |
75 |
| 1.5R | 3 | 6 | 3 |
100 |
| 1.5R | 3 | 6 | 4 |
100 |
| 1.5R | 3 | 6 | 6 |
100 |
| 2R | 4 | 8 | 4 |
75 |
| 2R | 4 | 8 | 6 |
75 |
| 2R | 4 | 8 | 4 |
100 |
| 2R | 4 | 8 | 6 |
100 |
| 2.5R | 5 | 10 | 6 |
75 |
| 2.5R | 5 | 10 | 6 |
100 |
| 3R | 6 | 12 | 6 |
75 |
| 3R | 6 | 12 | 6 |
100 |
| 4R | 8 | 16 | 8 |
75 |
| 4R | 8 | 16 | 8 |
100 |
| 5R | 10 | 20 | 10 |
100 |
| 5R | 10 | 20 | 10 |
150 |
| 6R | 12 | 24 | 12 |
100 |
