Products

Special processing milling cutter
Tungsten Carbide Outer Radius End Mill
RC

Remarks: For other specifications, please call to inquire.

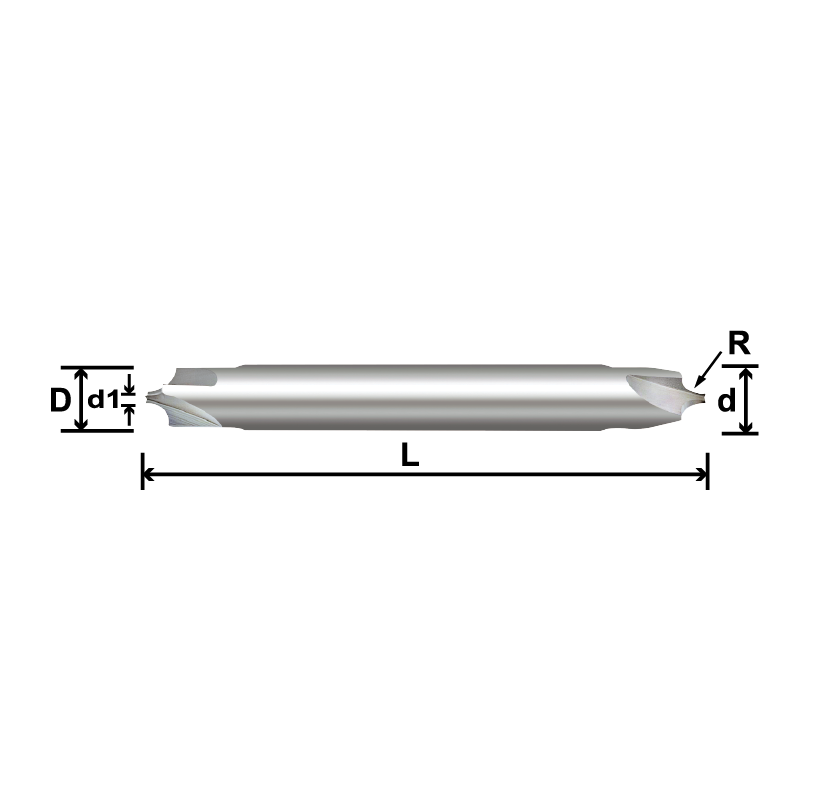

Specification

Unit:mm

Model No.

R

Radius

d1

Top Diameter

D

Outside Diameter

T

Flute

d

Shank Diameter

L

Overall Length

2RC 0104

0.5R

1.5

2.7

4

4

50

2RC 1504 0.75R 1.5 3.2 4 4

50

2RC 0204 1R 1.5 3.7 4 4

50

2RC 0254D6 1.25R 1.5 4.2 4 6

50

2RC 0304D6 1.5R 1.5 4.7 4 6

50

2RC 0354D6 1.75R 1.5 5.2 4 6

50

2RC 0404D6 2R 1.5 5.7 4 6

50

2RC 0504D8 2.5R 1.5 6.7 4 8

60

2RC 0604D8 3R 1.5 7.7 4 8

60

2RC 0704D10 3.5R 2 9.2 4 10

75

2RC 0804D12 4R 2 10.2 4 12

75

2RC 1004D14 5R 3 13.2 4 14

100

2RC 1204D16 6R 3 15.2 4 16

100
