5# Mold Processing
LNB (Ball Nose For Deep Processing, Long Neck),2 Flutes
LNB

Remarks: For other specifications, please call to inquire.

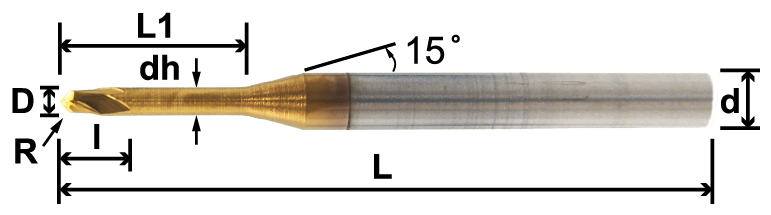

Specification

Unit:mm

Model No.

R

Radius

D

Diameter

I

Flute Length

L1

Effective Length

dh

Neck dia

d

Shank Diameter

L

Overall Length

5 LNB 020102OL 0.1R 0.2 0.2 1 0.17 4

50

5 LNB 020152OL 0.1R 0.2 0.2 1.5 0.17 4

50

5 LNB 020202OL 0.1R 0.2 0.2 2 0.17 4

50

5 LNB 030152OL 0.15R 0.3 0.3 1.5 0.26 4

50

5 LNB 030202OL 0.15R 0.3 0.3 2 0.26 4

50

5 LNB 030302OL 0.15R 0.3 0.3 3 0.26 4

50

5 LNB 040202OL 0.2R 0.4 0.4 2 0.35 4

50

5 LNB 040302OL 0.2R 0.4 0.4 3 0.35 4

50

5 LNB 040402OL 0.2R 0.4 0.4 4 0.35 4

50

5 LNB 040502OL 0.2R 0.4 0.4 5 0.35 4

50

5 LNB 050302OL 0.25R 0.5 0.5 3 0.45 4

50

5 LNB 050402OL 0.25R 0.5 0.5 4 0.45 4

50

5 LNB 050602OL 0.25R 0.5 0.5 6 0.45 4

50

5 LNB 060302OL 0.3R 0.6 0.6 3 0.55 4

50

5 LNB 060402OL 0.3R 0.6 0.6 4 0.55 4

50

5 LNB 060602OL 0.3R 0.6 0.6 6 0.55 4

50

5 LNB 060802OL 0.3R 0.6 0.6 8 0.55 4

50

5 LNB 080402OL 0.4R 0.8 0.8 4 0.75 4

50

5 LNB 080602OL 0.4R 0.8 0.8 6 0.75 4

50

5 LNB 080802OL 0.4R 0.8 0.8 8 0.75 4

50

5 LNB 081002OL 0.4R 0.8 0.8 10 0.75 4

50

5 LNB 100602TX 0.5R 1 1 6 0.95 4

50

5 LNB 100802TX 0.5R 1 1 8 0.95 4

50

5 LNB 101002TX 0.5R 1 1 10 0.95 4

50

5 LNB 101202TX 0.5R 1 1 12 0.95 4

50

5 LNB 150602TX 0.75R 1.5 1.5 6 1.45 4

50

5 LNB 150802TX 0.75R 1.5 1.5 8 1.45 4

50

5 LNB 151002TX 0.75R 1.5 1.5 10 1.45 4

50

5 LNB 151202TX 0.75R 1.5 1.5 12 1.45 4

50

5 LNB 151602TX 0.75R 1.5 1.5 16 1.45 4

50

5 LNB 200802TX 1R 2 2 8 1.95 4

50

5 LNB 201002TX 1R 2 2 10 1.95 4

50

5 LNB 201202TX 1R 2 2 12 1.95 4

50

5 LNB 201402TX 1R 2 2 14 1.95 4

50

5 LNB 201602TX 1R 2 2 16 1.95 4

50

5 LNB 202002TX 1R 2 2 20 1.95 4

50
