Products

5# Mold Processing

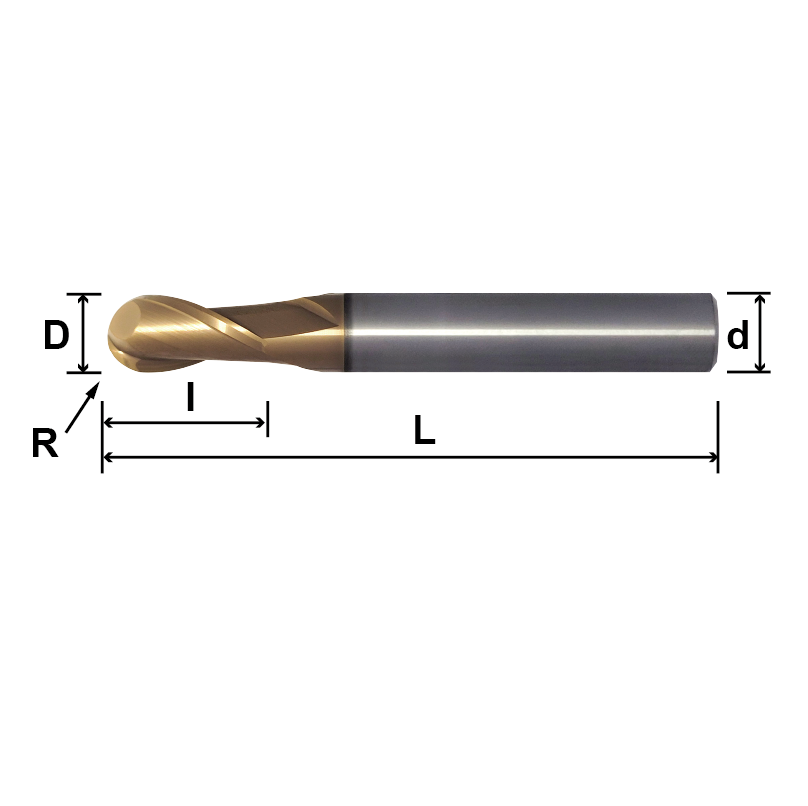

MSB2 (Ball Nose),2 Flutes
MSB2 / SB2

Remarks: For other specifications, please call to inquire.

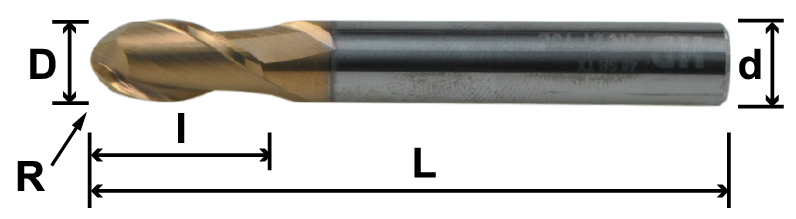

Specification

Unit:mm

Model No.

R

Radius

D

Diameter

I

Flute Length

d

Shank Diameter

L

Overall Length

5 MSB 0102TX 0.5R 1 2 4

50

5 SB 0102TX 0.5R 1 2 6

50

5 MSB 0152TX 0.75R 1.5 3 4

50

5 SB 0152TX 0.75R 1.5 3 6

50

5 MSB 0202TX 1R 2 4 4

50

5 SB 0202TX 1R 2 4 6

50

5 MSB 0252TX 1.25R 2.5 5 4

50

5 SB 0252TX 1.25R 2.5 5 6

50

5 SSB 0302TX 1.5R 3 6 3

50

5 MSB 0302TX 1.5R 3 6 4

50

5 SB 0302TX 1.5R 3 6 6

50

5 MSB 0352TX 1.75R 3.5 7 4

50

5 MSB 0402TX 2R 4 8 4

50

5 SB 0402TX 2R 4 8 6

50

5 SB 0452TX 2.25R 4.5 9 6

50

5 SB 0502TX 2.5R 5 10 6

50

5 SB 0602TX 3R 6 12 6

50

5 SB 0702TX 3.5R 7 14 8

60

5 SB 0802TX 4R 8 16 8

60

5 SB 0902TX 4.5R 9 18 10

75

5 SB 1002TX 5R 10 20 10

75

5 SB 1102TX 5.5R 11 22 12

75

5 SB 1202TX 6R 12 24 12

75

5 SB 1402TX 7R 14 28 16

75

5 SB 1602TX 8R 16 32 16

100

5 SB 2002TX 10R 20 40 20

100
