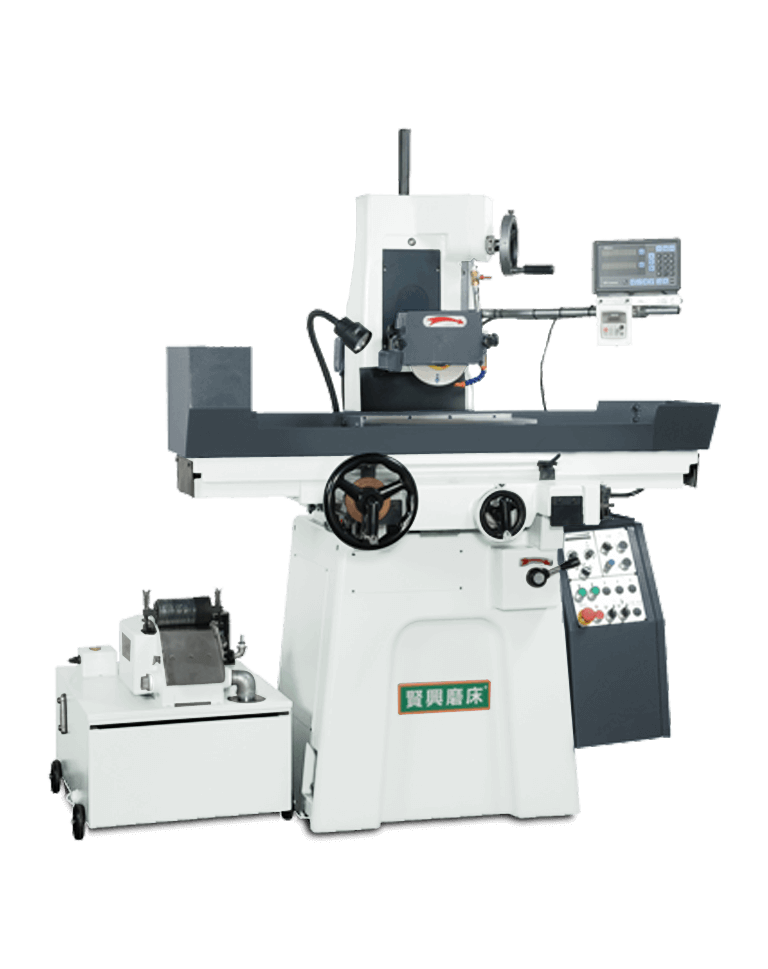

Hydraulic Surface Grinders

PSG-618 1A/2A/3A

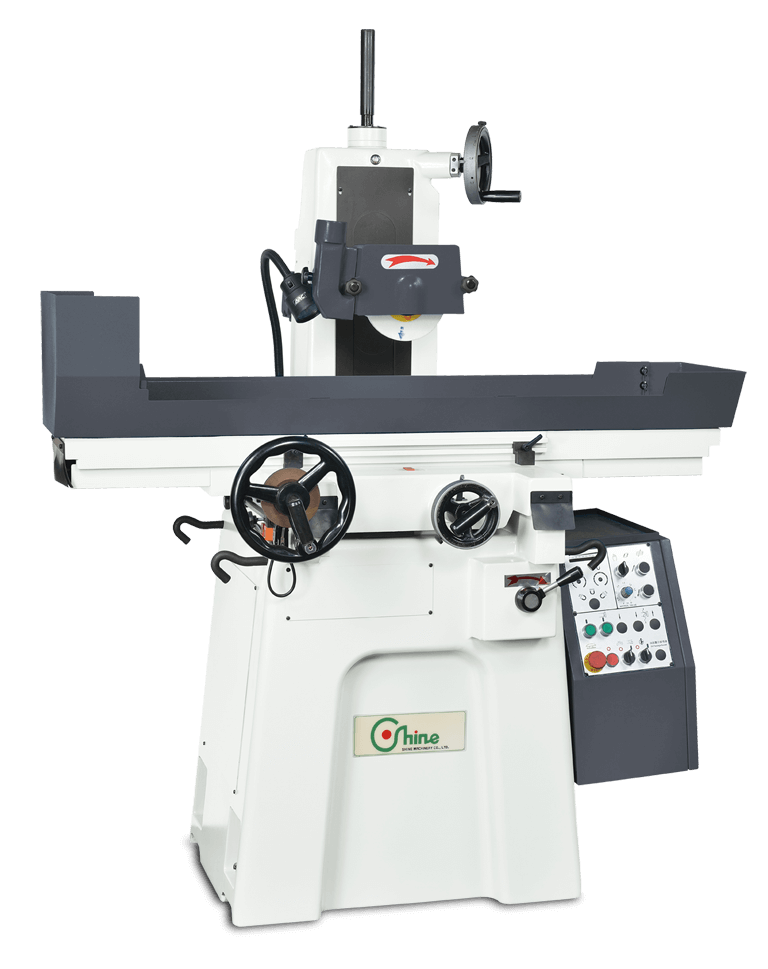

Machine Feature

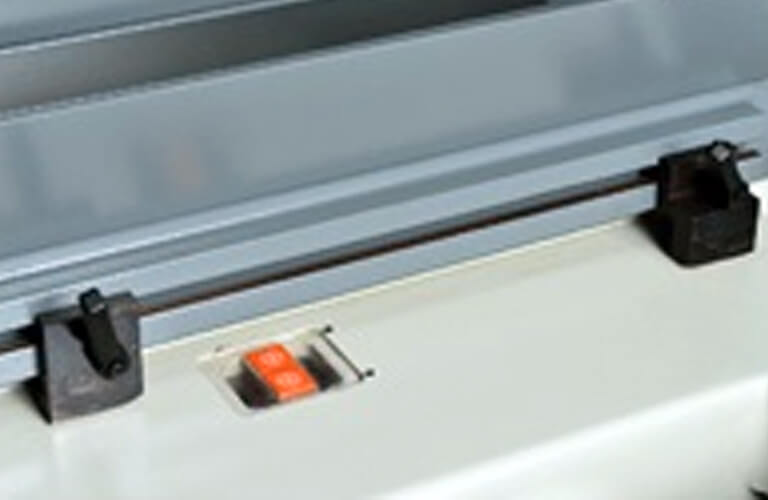

Table uses proximity switch for stepless, side to side speed changes and increased convenience.
Table can switch to manual grinding. For safety issue, manual grinding and hydraulic control cannot be simultaneously operated.
Longitudinal/cross slide ways employ full support design, are precision hand scraped to offer high accuracy and stability on both axes.
Before any machine leaves the factory, it is checked for perpendicularity using a cylindrical angle square.
Imported motor on Z axis (cross) drive ensures accuracy. (on 2A, 3A, AD only)
Full length of slide ways protected from lubricant.
Worktable longitudinal and cross feed parallelism. Gauge is fixed in spindle and placed in light contact with worktable. Standard cross feed results below 0.002mm.

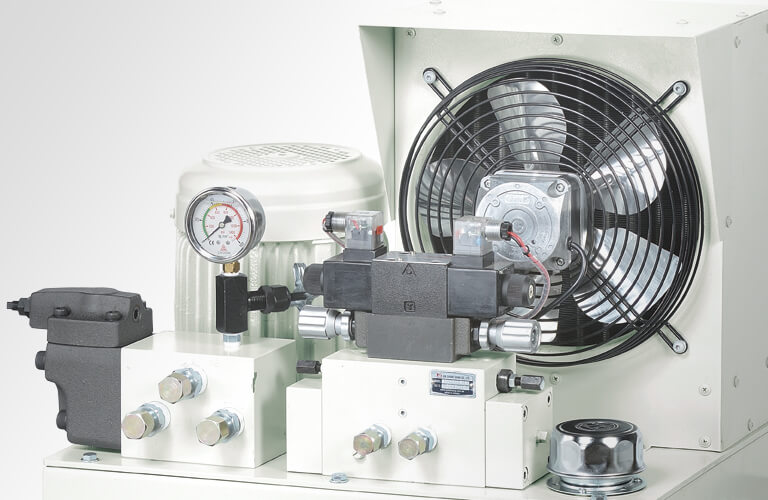

The new hydraulic box with cooling fan, effectively reduce the impact generated by the temperature rise.

Specification

X axis (Longitudinal) sensor

hydraulic Tank

Description	PSG-618 1A/2A/3A
General Capacity
Table size	150x457mm
Max. grinding length	475mm
Max. grinding width	160mm
Distance from table surface to spindle center	415mm(PSG)/490mm(APSG)
Longitudinal Movement
Manual travel	485mm
Hydraulic travel	480mm
Table speed(approx)	1~25m/min
Cross Feed Movement
Manual travel	180mm
Hydraulic Travel	170mm
Continuous feed(approx)	1200mm/min
Handfeed per rev.	5mm
Handfeed per gra.	0.02mm
Intermittent cross feed	0.15-7.5mm
Vertical Downfeed
Handfeed per rev	1mm
Handfeed per gra	0.005mm
Rapid feed(3A.AD)	(3A)220mm/min
Feed by MPG (opt) per gra.	(x1)0.001mm (x10)0.01mm (x100)0.1mm
Grinding Wheel
Wheel size (dia.x width x bore)	180x13x31.75mm
Spindle speed(50/60 HZ)	3000/3600rpm
Motors
Spindle motor(OPT.)	1.5HP(2HP)
Cross feed motor	25W
Hydraulic motor	1HPx3P
Elevated motor	25W
Weight
	850kg/930kg
Packing size
Length x width x height	1750x1150x2100mm

Standard Accessories

Grinding Wheel With Flange

Wheel Balancing Arbor

Wheel Dresser With Diamond

Toolboc & Tools

Wheel Balancing Base

Working Lamp

Leveling Screw & Plate

Operation Manual

Optional

Permanent/ Electro Magnetic Chuck

Parallel Dressing Attachments

Demagnetizer

Grinding Wheel Flange

LED Working Lamp

Paper Filter W/Coolant System

Wheel Inverter

Coolant System W/Splash Guard

Coolant System & Dust Unit W/Splash Guard

Dust Suction System

Vertical MPG Microfeed Device

Magnetic Separator Filter

Cooland System With Auto Paper Filter & Magnetic Separator DRO & Linear Scale
