Auto Downfeed Surface Grinders

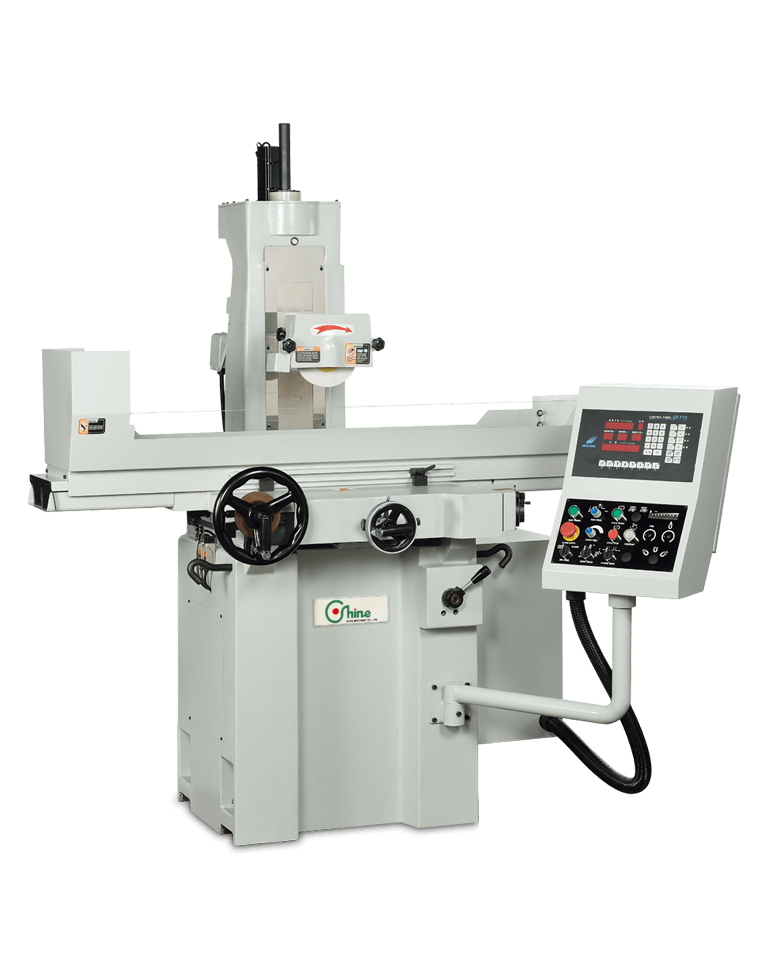

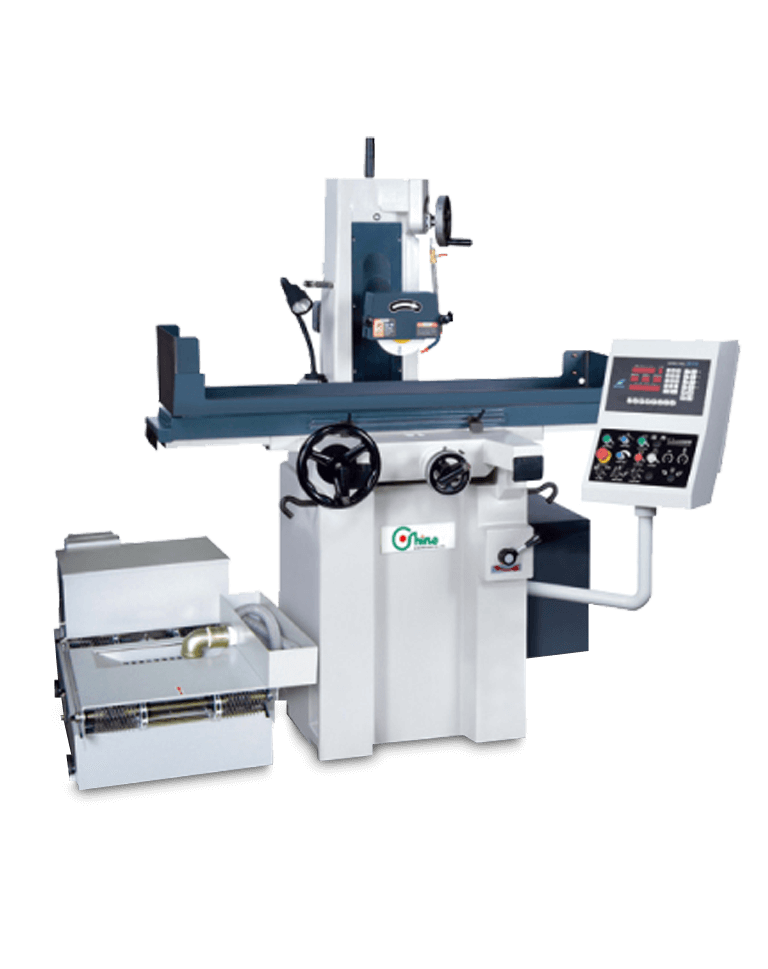

PSG-820ADE/ADS

Machine Feature
Spindle

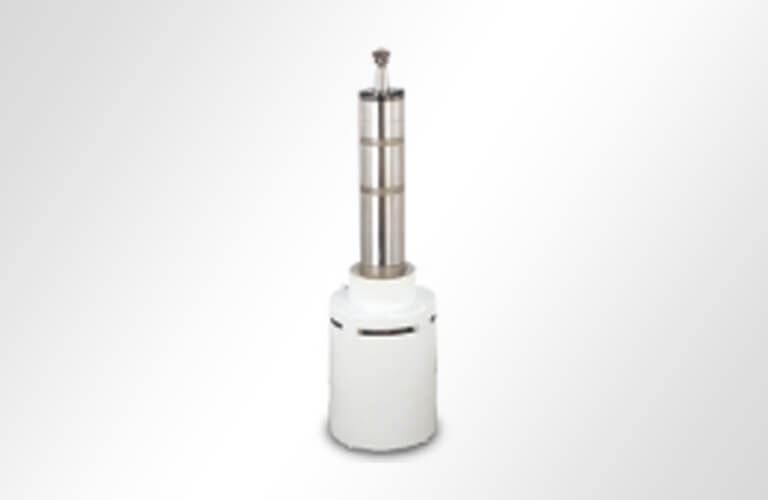

Precision spindle ultraprecision (P4 level) bearings, to ensure the best quality grinding.

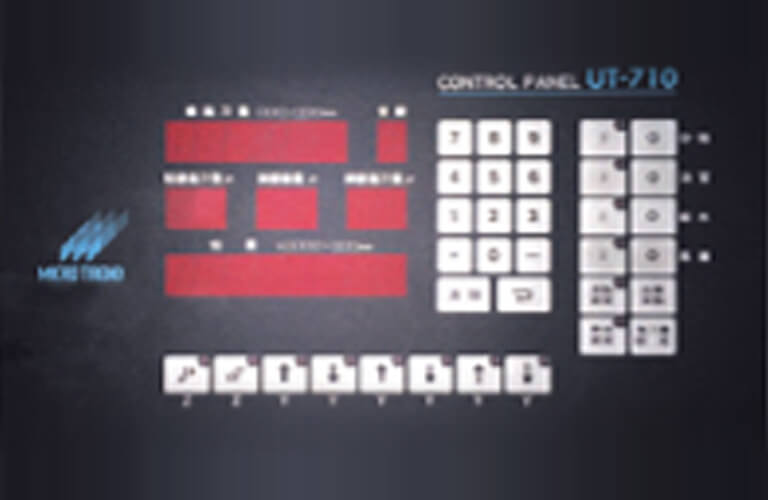

Upper & Lower Minimum Feed Amount: 0.001mm; NC System Feature
Can be divided into coarse grinding, fine grinding two-stage process, and with 0-9 times to ensure that no spark grinding precision grinding.

Spindle position can be set at any point zero.

Planning of 0:00 reset function, when the spindle movement, just by pressing the zero reset, you can reset to zero.

Spindle moves up and down to do: 1. Speed 2. feed into Jog 3. Micro 4.MPG electronic handwheel: Feed rate 1μ, 5μ, 10μ.
Optical Devic

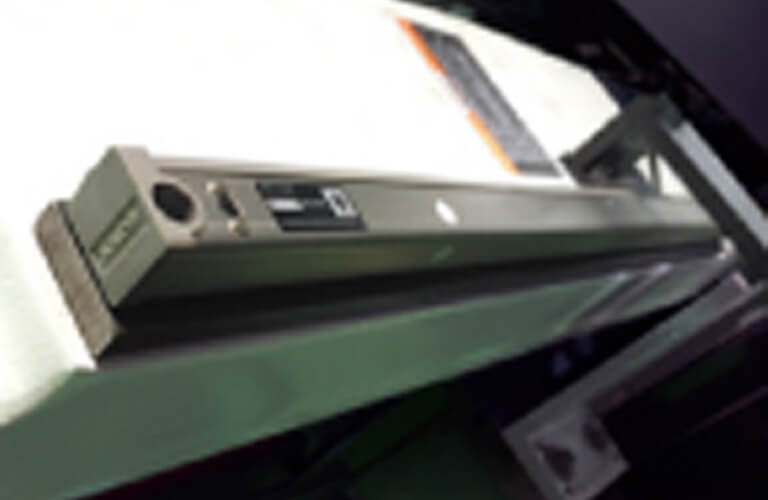

Down feed can be installed with optical ruler, make more accurate.

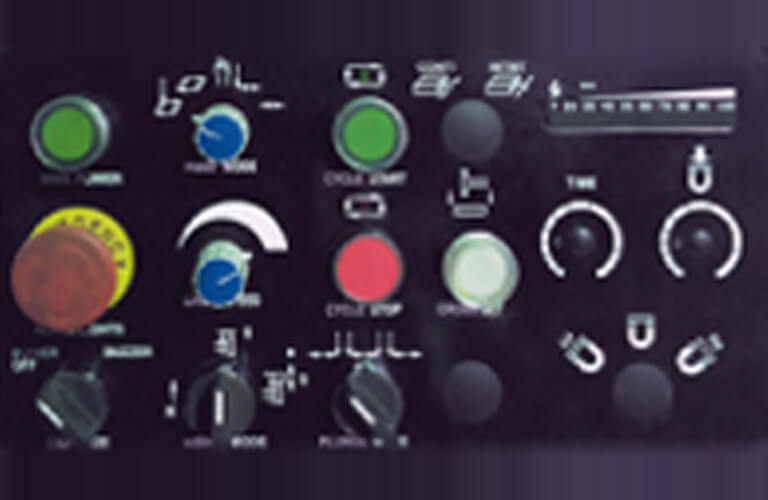

All the Digital Input, Don’t Need to Calculate, More Easier Operation
Grooving Choose Unilateral or Bilateral Feed.

After the Processing is Completed Selectable: 1.Does not Stop, or Only the Warning Lights Flashing 2.After Milling is Completed, the Table Off the Right Stop + Power Off.

Specification

Spindle

Optical device

NC system

All the digital input, don't need to calculate, more easier operation

Description	PSG-820ADE	PSG-820ADS
General Capacity
Table size	200 x 500 mm	200 x 500mm
Max. Grinding Surface (W x L)	230 x 580 mm	230 x 580 mm
Distance From Table Surface to Spindle Center	400 mm	400 mm
Table Speed (Approx)	1~25 M/min	1~25 M/min
Continuous Feed (Approx)	60HZ (1,100 mm/min)	60HZ (1,100 mm/min)
Continuous Feed (Approx)	500HZ (900 mm/min)	500HZ (900 mm/min)
Handfeed (per. gra.)	0.02 mm	0.001/ 0.01/ 0.1 mm
Handfeed (per. rev.)	5 mm	0.1/ 1/ 10 mm
Intermittent Cross Feed	0.5-10 m/min	0.5-10 m/min
Vertical Downfeed
Handfeed (per. gra.)	0.001/ 0.005/ 0.01 mm	0.001/ 0.005/ 0.01 mm
Handfeed (per. rev. )	0.1/ 0.5/ 1 mm	0.1/ 0.5/ 1 mm
Rapid Feed	230/ 29 mm/min	230/ 29 mm/min
Auto. Downfeed	-	-
Total Stock Removal	0.001~999.999 mm	0.001~999.999 mm
Feed Rate (Coarse/ Fine)	0.001~0.099 mm	0.001~0.099 mm
Fine Feed Stock Removal	0.001 mm	0.001 mm
Spark Out	0~9	0~9
Spindle and Wheel
Wheel Size (Dia.x Width x Bore)	180 x 13 x 31.75 mm	180 x 13 x 31.75 mm
Spindle Speed (50/ 60 HZ)	2,850/ 3,450 rpm	2,850/ 3,450 rpm
Spindle Motor	2 HP (OPT. 3)	2 HP (OPT. 3)
Motors
Cross Feed Motor	40W (AC Motor)	400W (Servo Mortor)
Hydraulic Motor	1 HP	1 HP
Vertical Motor	21.6kg-cm or 400W	400W
Weight
	960 kgs	960 kgs
Packing Size
L x W x H	1,900 x 1,700 x 2,100 mm	1,900 x 1,700 x 2,100 mm

Standard Accessories

Grinding Wheel With Flange

Wheel Balancing Arbor

Wheel Dresser With Diamond

Toolboc & Tools

Wheel Balancing Base

Working Lamp

Leveling Screw & Plate

Operation Manual

Optional

Permanent/ Electro Magnetic Chuck

Parallel Dressing Attachments

Demagnetizer

Grinding Wheel Flange

LED Working Lamp

Paper Filter W/Coolant System

Wheel Inverter

Coolant System W/Splash Guard

Coolant System & Dust Unit W/Splash Guard

Dust Suction System

Vertical MPG Microfeed Device

Magnetic Separator Filter

Cooland System With Auto Paper Filter & Magnetic Separator DRO & Linear Scale
