Specification

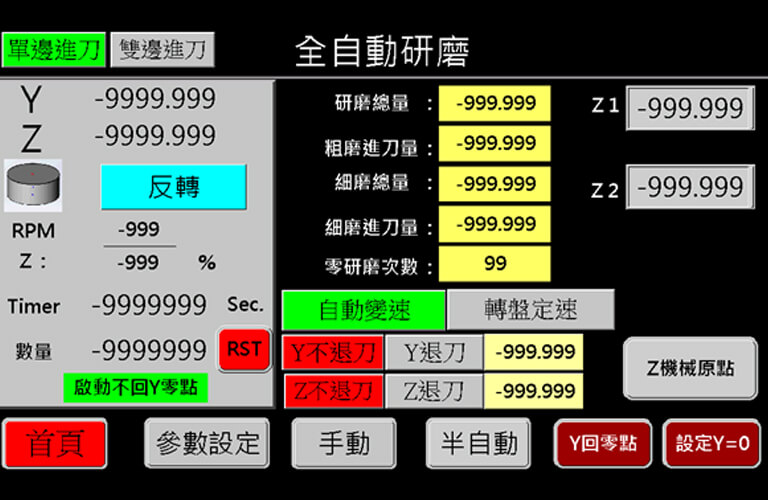

Provide operator's easy and friendly operation interface

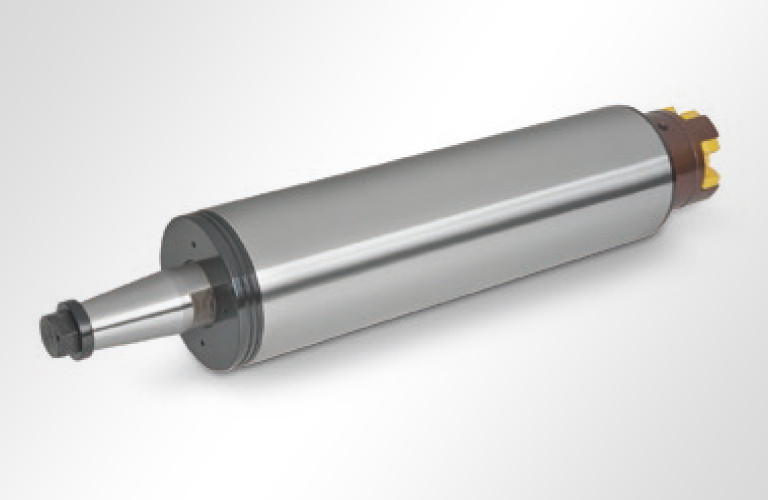

Precision spindle with V3 low vibration motor

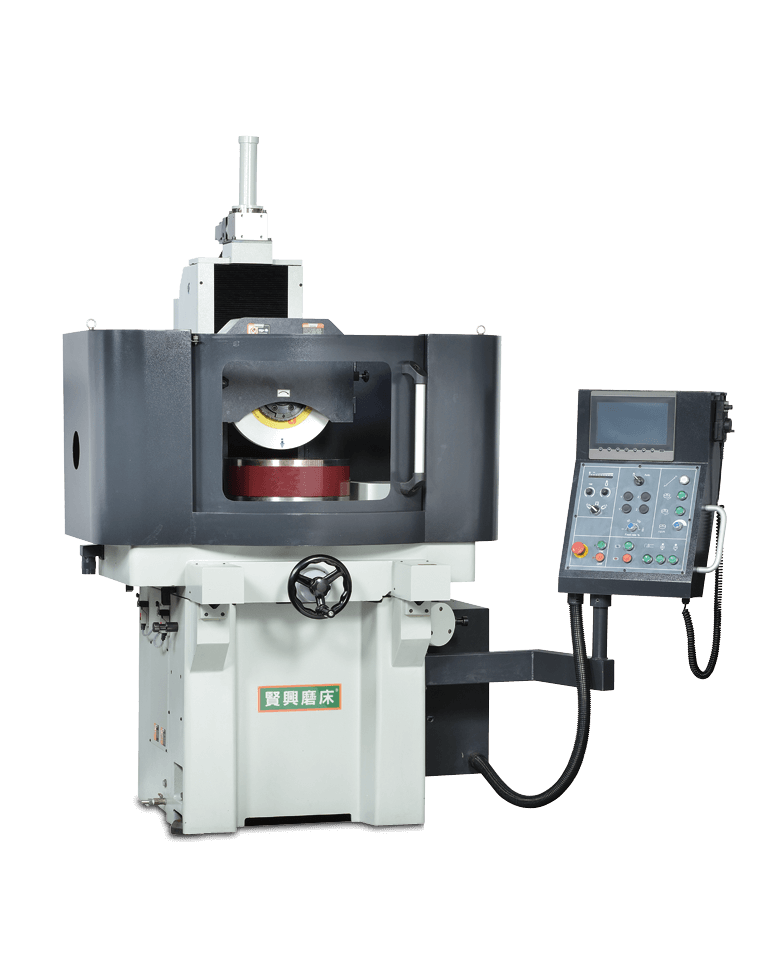

| Description | RG-300S |
|---|---|
| General capacity | |
| Table size | 300 |
| Max.grinding radius | 175 |
| Spindle center to chuck surface Max.height | 400 |
| Rotary table | |
| Rotary magnetic chuck Max. speed | 200 |
| Power | 750W |
| Grinding wheel | |
| Wheel size(diaxwidthxbore) | 205x16x31.75 |
| Spindle motor | 3HP |
| Grinding wheel speed(50/60HZ) | 1450/1750 rpm |
| Vertical downfeed | |
| Rapid feed | 230 min/mm |
| Vertical MPG per revolution | 0.01mm/MPG |
| Vertical MPG per graduation | 0.001mm/0.005mm/0.01mm/MPG |
| Packing size | |
| Net weight | 1650/1800kgs |
| Packing size(LxWxH) | 180x160x210cm |
Standard Accessories
Grinding Wheel With Flange
Wheel Balancing Arbor
Vertical MPG Microfeed Device
Leveling Screw & Plate
Operation Manual
Wheel Balancing Base
Working Lamp
Wheel Dresser With Diamond
Toolboc & Tools
Optional
Permanent/ Electro Magnetic Chuck
Parallel Dressing Attachments
Demagnetizer
Coolant System W/Splash Guard
Coolant System & Dust Unit W/Splash Guard
LED Working Lamp
