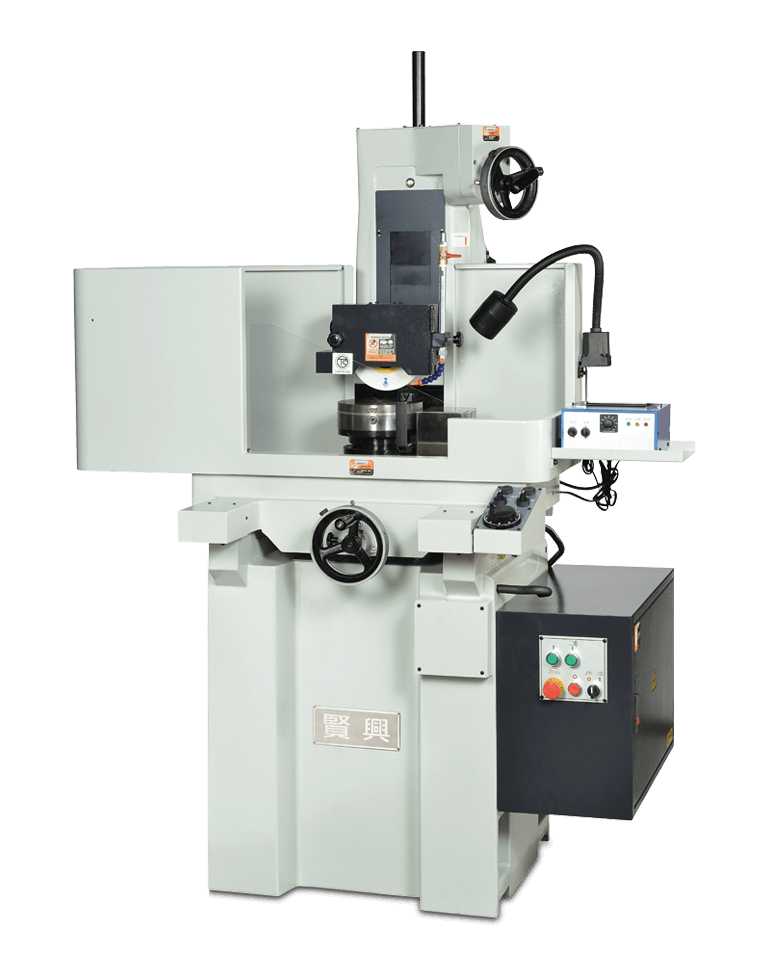

Machine Feature
Spacious working space and good drainage system
The inner end of the retractable spindle nose is designed with a special grinding wheel for easy parallel grinding
The machine column with a extra high and rigidity designed , and the spindle with a 2HP motor to make the grinding more functional.

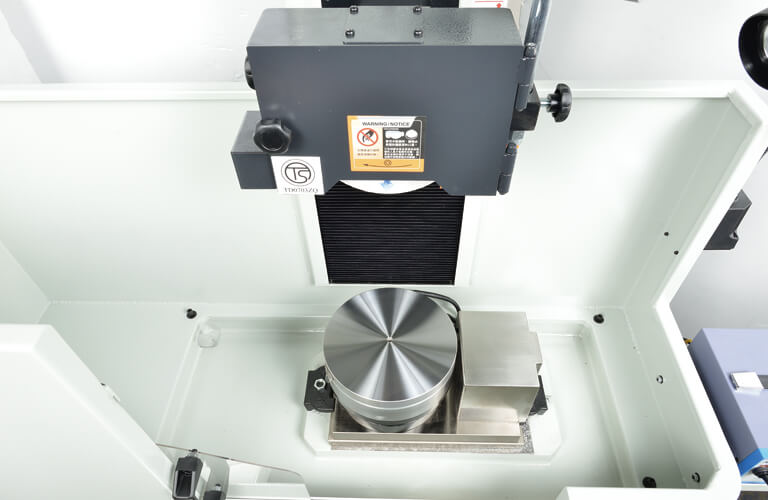

Spacious working space and good drainage system
Grindable height was designed

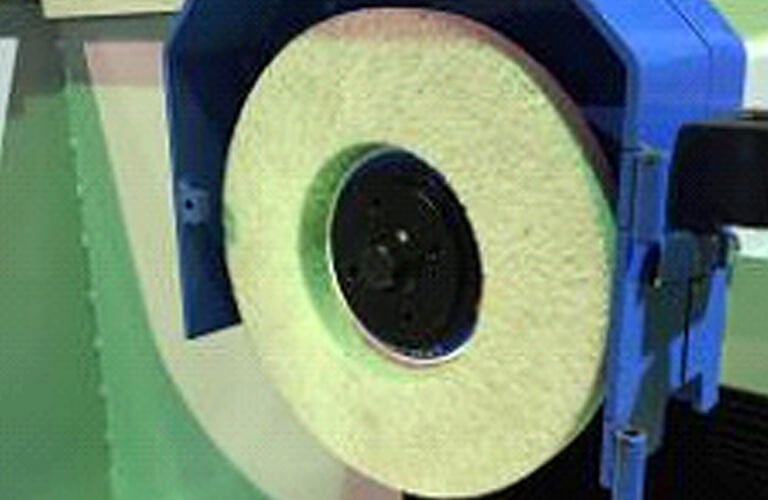

The inner end of the retractable spindle nose is designed with a special grinding wheel for easy parallel grinding
| Description | RG-200M |
|---|---|
| General capacity | |
| Table size | 200 |
| Max.grinding radius | 125 |
| Spindle center to chuck surface Max.height | 300 |

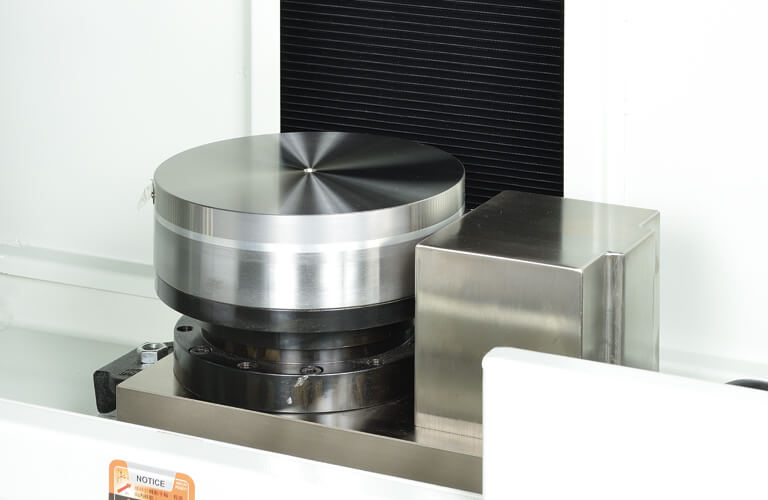

| Rotary table | |
| Rotary magnetic chuck Max. speed | 120 rpm |
| Power | 75W |
| Grinding wheel | |
| Wheel size(diaxwidthxbore) | 180x13x31.75 |
| Spindle motor | 2HP |
| Grinding wheel speed(50/60HZ) | 2850/3450rpm |
| Vertical downfeed | |
| Rapid feed | |
| Vertical MPG per revolution | |
| Vertical MPG per graduation | |
| Packing size | |
| Net weight | 900/1100kgs |
| Packing size(LxWxH) | 140x120x210cm |
Standard Accessories
Grinding Wheel With Flange
Wheel Balancing Arbor
Vertical MPG Microfeed Device
Leveling Screw & Plate
Operation Manual
Wheel Balancing Base
Working Lamp
Wheel Dresser With Diamond
Toolboc & Tools
Optional
Permanent/ Electro Magnetic Chuck
Parallel Dressing Attachments
Demagnetizer
Coolant System W/Splash Guard
Coolant System & Dust Unit W/Splash Guard
LED Working Lamp
