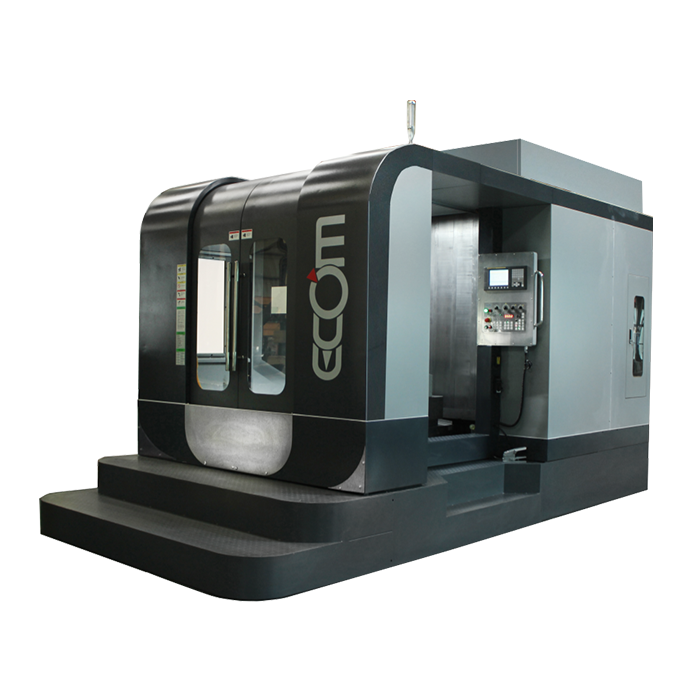

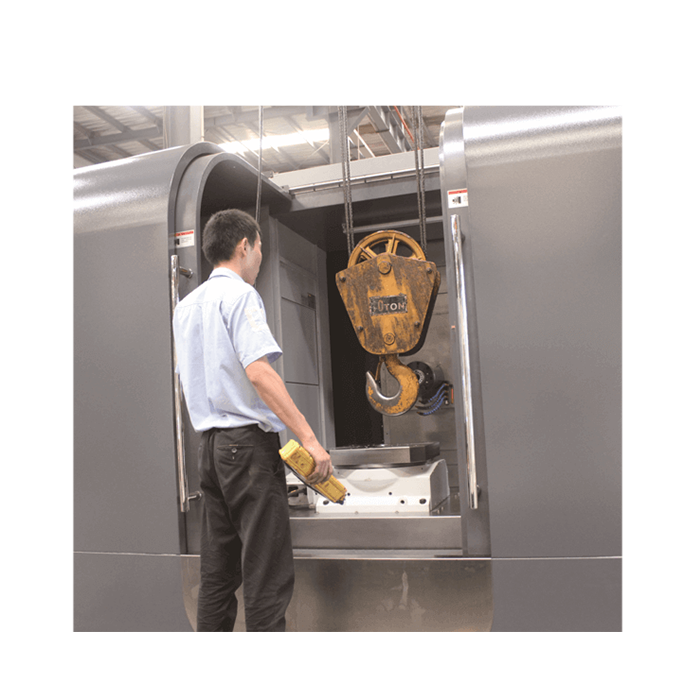

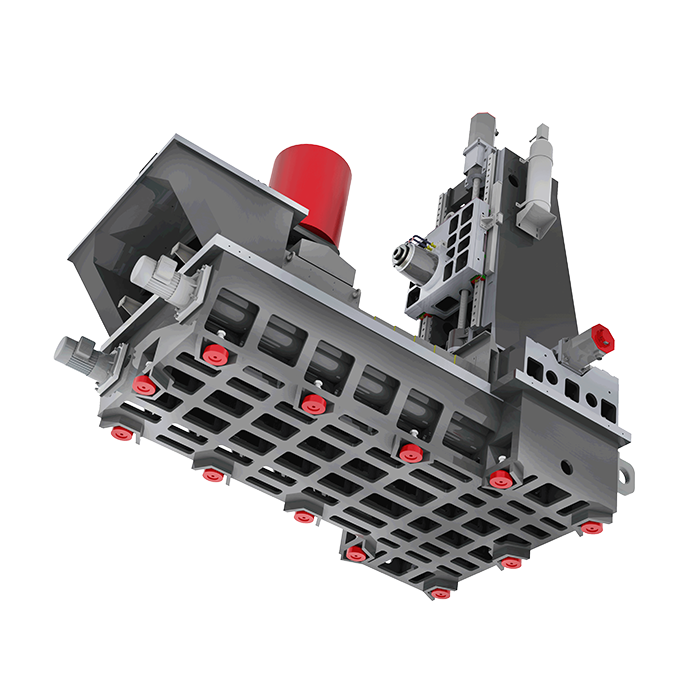

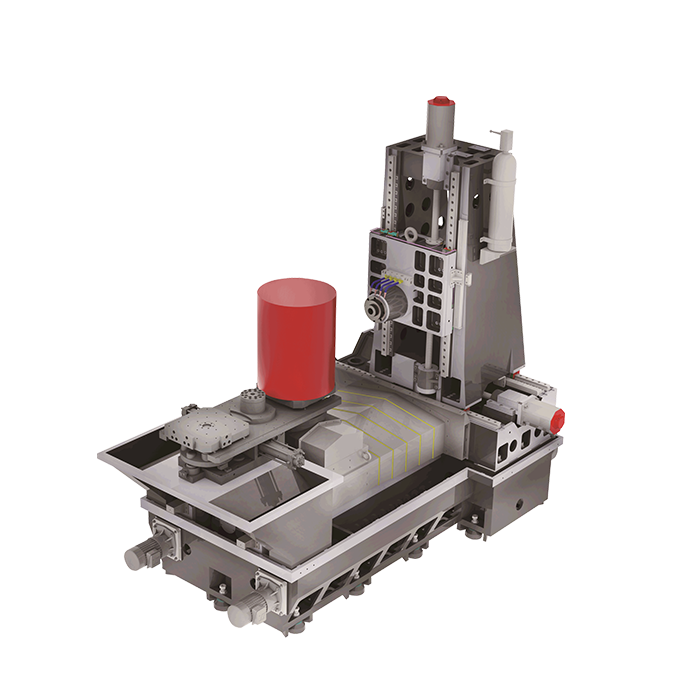

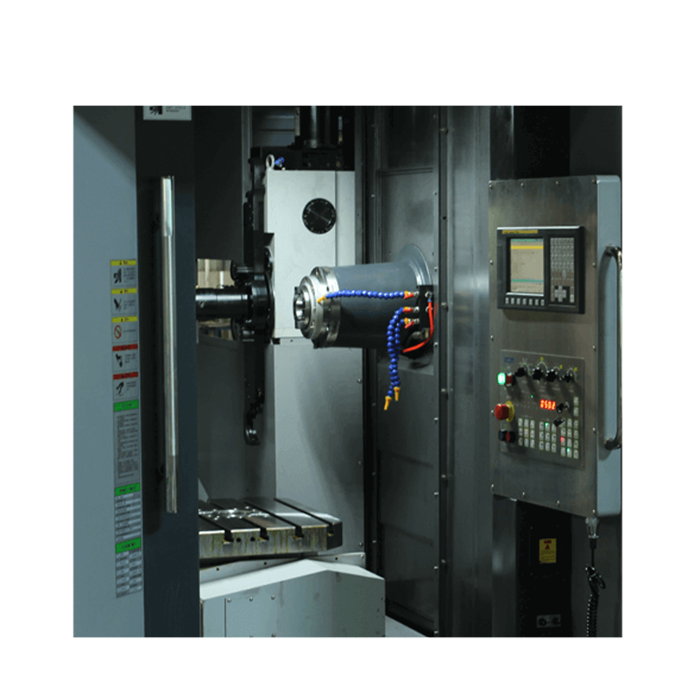

HORIZONTAL MACHINING CENTER 800A(B)
HMC-800
The ECOM HMC-Series is a horizontal machining center designed specifically for a No. 50 taper spindle, and is ideal for mass production of large workpieces. The machine meets a wide range of machining needs, mainly from the automotive and construction machinery fields. The ECOM HMC-Series accommodates workpieces up to a maximum part capacity of 400~1200kg. All HMC-Series are with an integrated 4th-axis rotary table.
Specification
Specifications
HMC-800A(B)
| Travel | X-Axis,Y-Axis,Z-Axis | X: 1300, Y: 1000, Z: 1050mm | ||
|---|---|---|---|---|
| Spindle Nose To Pallet | 150-1200mm | |||
| Spindle Center To Pallet Surface | 90-1090mm / 0-1000mm | |||
| Table | Table Size | 800X800mm | ||
| Workbench Number | 1(OP:2) | |||
| Workbench Surface Configuration | M16-160mm | |||
| The Workbench Maximum Load | 2000kg / 1300kg | |||
| The Smallest Unit of Setting | 1° (OP:0.001°) | |||
| Spindle | Spindle Taper | BT-50 | ||
| Type Of Driving | Belt Type | Direct Type | Gear head | |
| Spindle RPM | 6000 rpm | 8000 rpm | 6000 rpm | |
| Controller and Motor | 0IMF-ß | 0IMF-α | 0IMF-ß | |
| Spindle Motor | 15/18.5 kW (143.3Nm) | 22/26 kW (140Nm) | 15/18.5 kW (143.3Nm) | |
| X Axis Servo Motor | 3kW(36Nm) | 7kW(30Nm) | 3kW(36Nm) | |
| Y Axis Servo Motor | 3kW(36Nm)BS | 7kW(30Nm)BS | 3kW(36Nm)BS | |
| Z Axis Servo Motor | 3kW(36Nm) | 7kW(30Nm) | 3kW(36Nm) | |
| B Axis Servo Motor | 2.5kW (20Nm) | 3kW (12Nm) | 2.5kW (20Nm) | |
| Feed Rate | 0IMF-ß | 0IMF-α | 0IMF-ß | |
| X. Z Axis Rapid Feed Rate | 24m/min | 24m/min | 24m/min | |
| Y Axis Rapid Feed Rate | 24m/min | 24m/min | 24m/min | |
| X. Y. Z Max.Cutting Feed Rate | 6m/min | 6m/min | 6m/min | |
| ATC | Arm Type (Tool to Tool) | 30T (4.5 sec) | ||
| Tool Shank | BT-50 | |||
| Max. Tool Diameter*Length(adjacent) | φ200*350mm(φ105*350mm) | |||
| Max. Tool Weight | 15kg | |||
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | ||
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | |||
| Others | Approximate Weight | A: 16500kg / B: 17000kg | ||
| Floor Space Measurement | A: 6000*5000*3800mm B: 7000*5000*3800mm |
|||
Above specification are subject to change without prior notice.
