High-Speed VMC (APC)

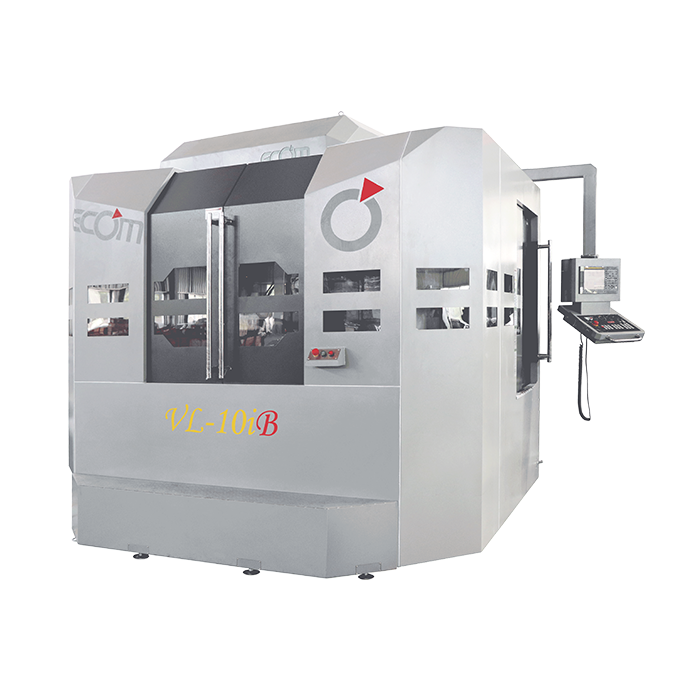

High-Speed Vertical Machining Center VL-10i APC
VL-10i APC

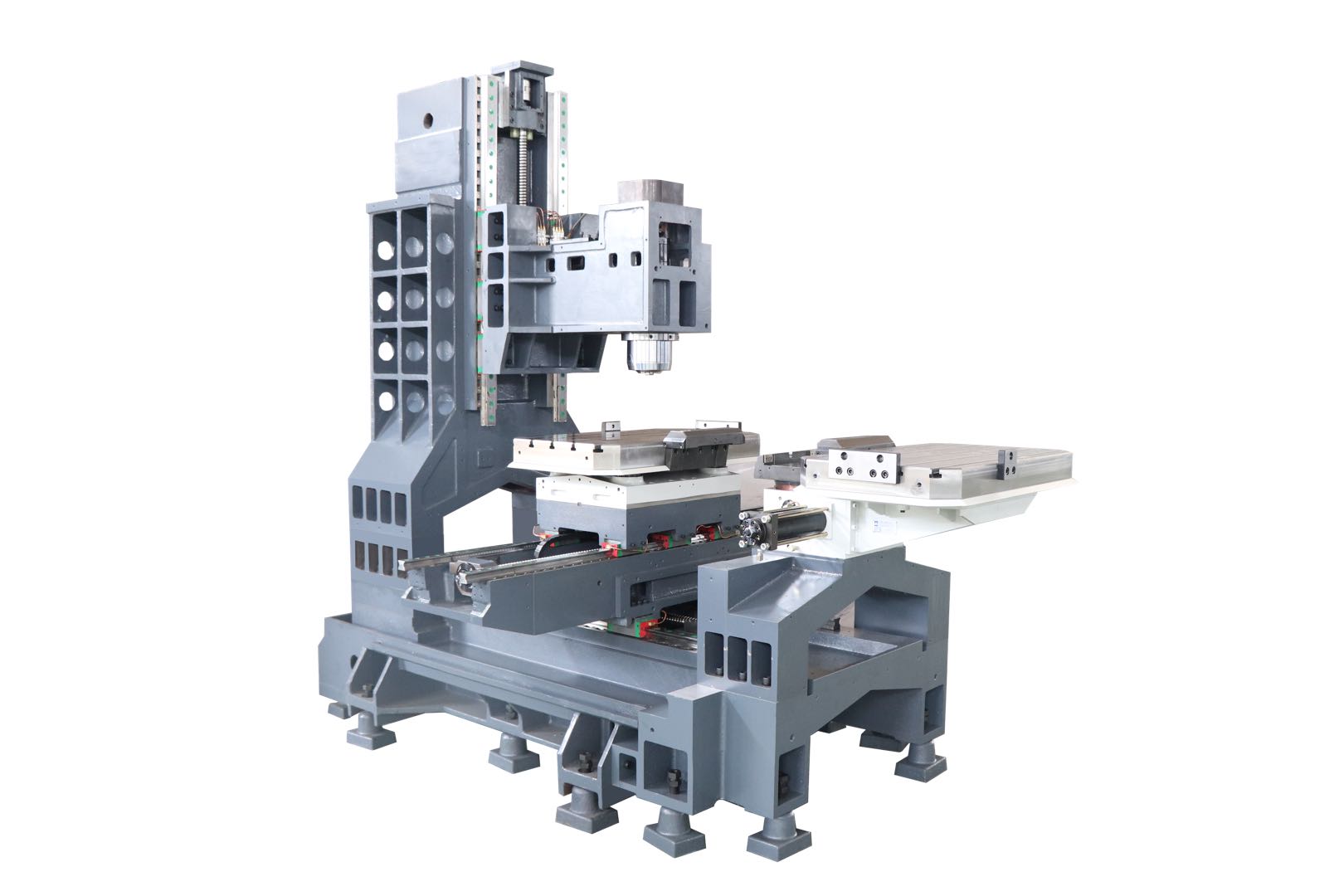

Simplifying Processes: Each pallet is hydraulically locked with four taper cones for high accuracy positioning.
Improve Productivities: The VL-850/1000 APC allows customers to process complex machinings such as milling, drilling, boring, and more. Ideal for mass production applications on two individual pallets.
Specification
Specifications
VL-10i APC
| Travel | X - Axis Travel | 1030mm | |
|---|---|---|---|
| Y - Axis Travel | 600mm | ||
| Z - Axis Travel | 560mm | ||
| pindle Center To Z - Rail | 650mm | ||
| Spindle Nose To Table | 150 - 710mm | ||
| Table | Table Size | 1000 X 500mm | |
| T - Slot (number*width*pitch) | 5*14mm*100mm | ||
| Maximum Table Load | 250kg X 2 | ||
| Spindle | Spindle Taper | BT-40 | |
| Spindle RPM | 50-10000rpm | ||
| Type Of Driving | Belt Type | ||
| Feed Rate | X. Y Axis Rapid Feed Rate | 36m/min | |
| Z Axis Rapid Feed Rate | 36m/min | ||
| X. Y. Z Max.Cutting Feed Rate | 10m/min | ||
| Automatic tool changer | Arm Type (Tool to Tool) | 24T (3sec) | |
| Max. Tool Diameter*Length(adjacent) | Φ150X300mm(Φ78X300mm) | ||
| Max. Tool Weight | 8 kg | ||
| Motor | MITSUBISHI | FANUC | |
| Spindle Motor | 7.5/11kW | 11/15kW | |
| X. Y Axis Servo Motor | 2.0kW | 3.0kW | |
| Z Axis Servo Motor | 3.0kW BS | 3.0kW BS | |
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | |
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | ||
| Others | Approximate Weight | 10000kg | |
| Floor Space Measurement | 2850*4000*3100mm | ||
Above specification are subject to change without prior notice.
