VMC (linear)

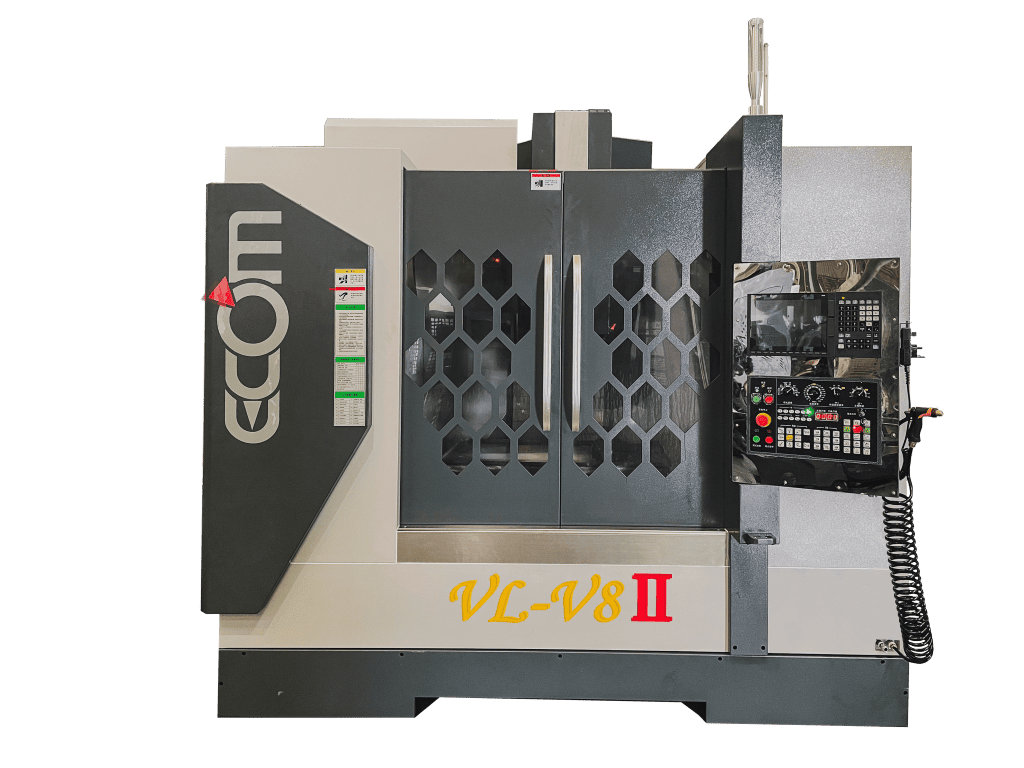

VMC (linear) VL-V8II
VL-V8II

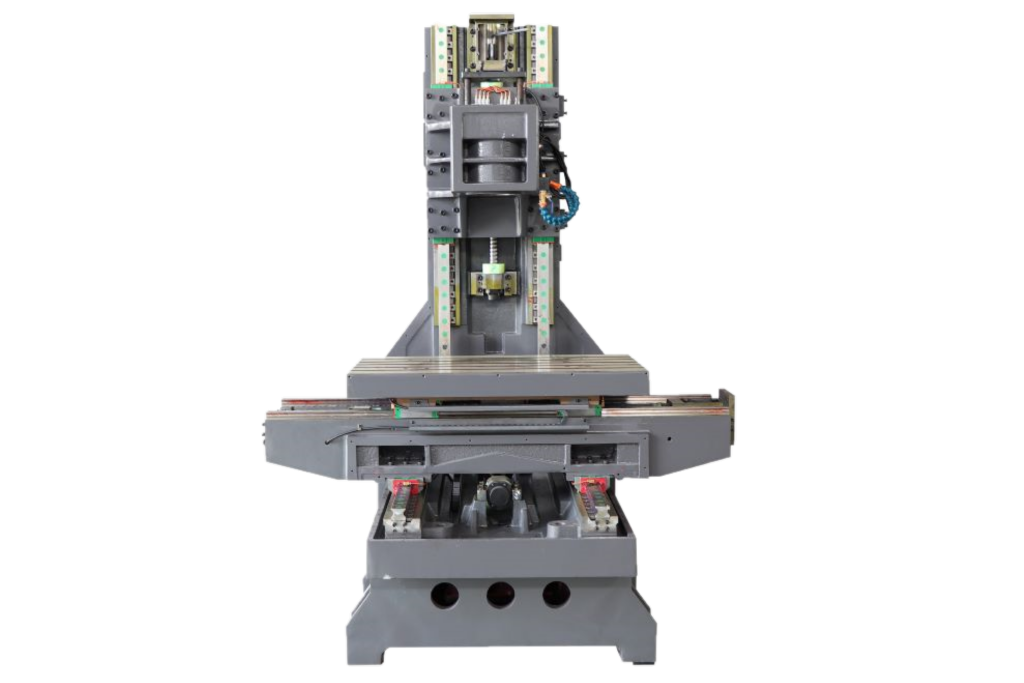

VL-V8II comes with a high-performance roller linear guideway for all 3-axis. It provides fast & accurate rapid feed, and also the allowance of heavy workpiece Z-axis.

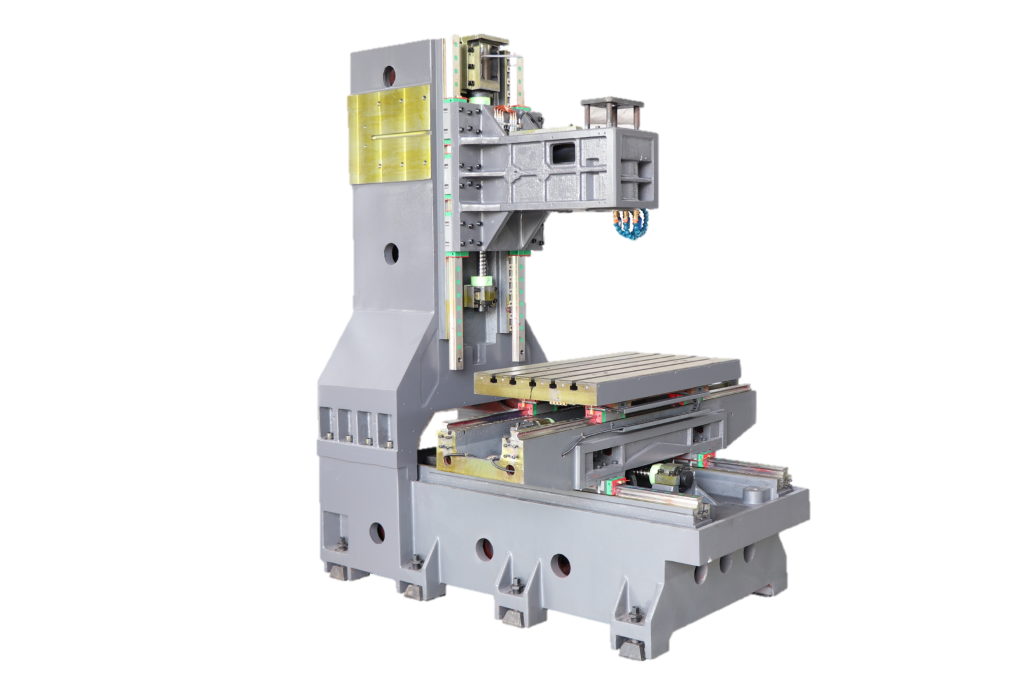

The 3-axis pre-loaded C3 class high precision ballscrews all has been well pre-extension, and directly coupled to A/C servo motors. It significantly eliminates backlash and ensures the highest rigidity.
The large-diameter ultra precision ballscrews directly coupled to the feed motor and are arranged in the center of each guideway and close to the cutting point.
Specification
Specifications
VL-V8II
| Travel | X - Axis Travel | 800mm | |
|---|---|---|---|
| Y - Axis Travel | 550mm | ||
| Z - Axis Travel | 550mm | ||
| Spindle Center To Z - Rail | 590mm | ||
| Spindle Nose To Table | 120 - 670mm | ||
| Table | Table Size | 1000 X 550mm | |
| T - Slot (number*width*pitch) | 5*18mm*90mm | ||
| Maximum Table Load | 500kg | ||
| Spindle | Spindle Taper | BT-40 | |
| Spindle RPM | 50-10000rpm | ||
| Type Of Driving | Belt Type | ||
| Feed Rate | X. Y Axis Rapid Feed Rate | 36m/min | |
| Z Axis Rapid Feed Rate | 36m/min | ||
| X. Y. Z Max.Cutting Feed Rate | 10m/min | ||
| Automatic tool changer | Arm Type (Tool to Tool) | 24T (3sec) | |
| Max. Tool Diameter*Length (adjacent) | Φ150X300mm(Φ78X300mm) | ||
| Max. Tool Weight | 8 kg | ||
| Motor | MITSUBISHI | FANUC | |
| Spindle Motor | 7.5/11kW | 7.5/15kW | |
| X. Y Axis Servo Motor | 2.0kW | 1.8kW | |
| Z Axis Servo Motor | 3.0kW BS | 3.0kW BS | |
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | |
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | ||
| Others | Approximate Weight | 5000kg | |
| Floor Space Measurement | 3140*2650*2810mm | ||
