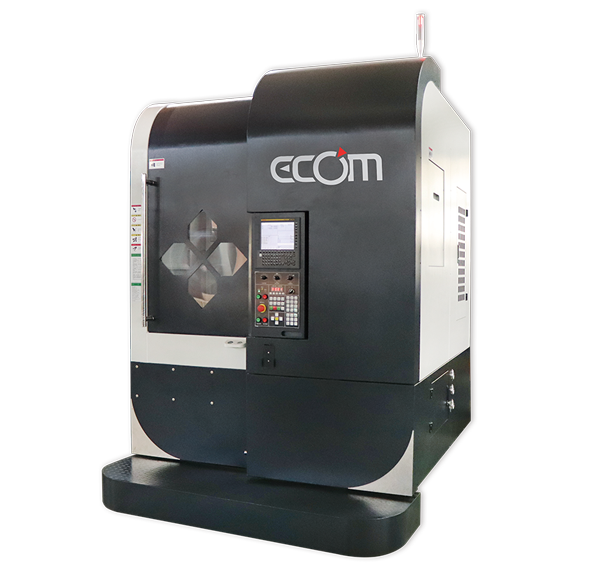

VERTICAL TURNING CENTER- VLT-750
VLT-750
The high rigidity with high-precision basic structure design provides machining accuracy and achieves high-performance efficiency.
The vertical lathe design overcomes the challenges of irregular workpiece clamping with capabilities to process multiple types of materials and shapes.

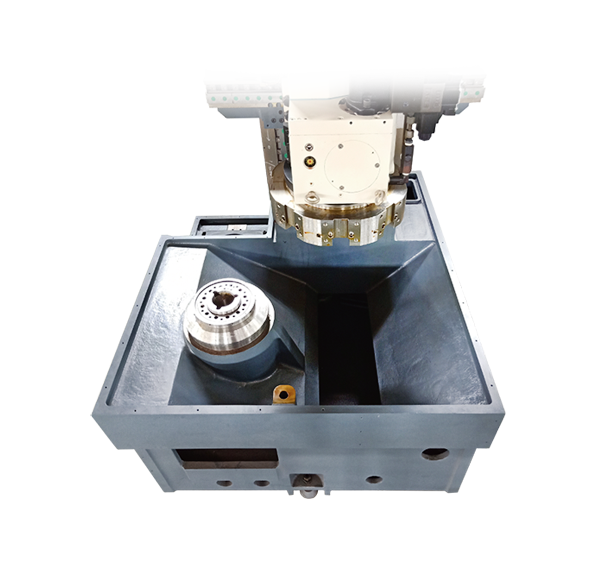

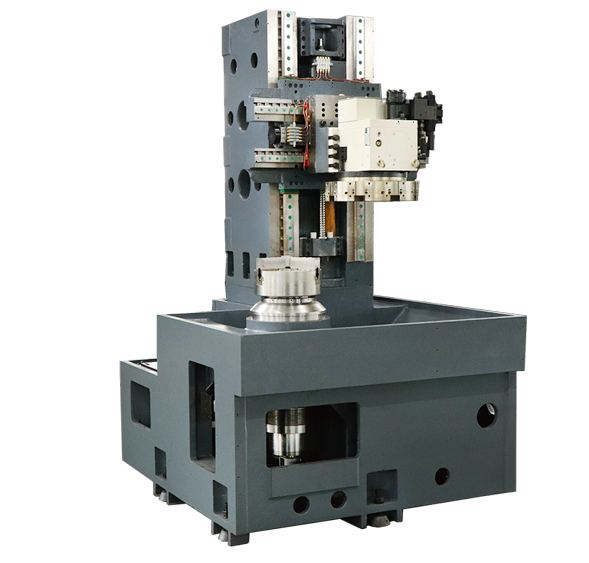

The X-axis and Z-axis track spacing enlarged, and the stability significantly increased.
The size of linearguideways and ballscrews are enlarged to increase the mechanical rigidity and prolong the mechanical life.
Specification
Specifications
VLT-750

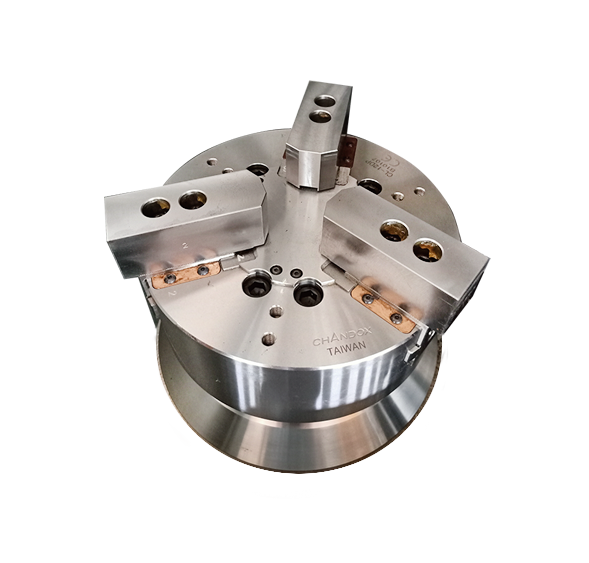

| Capacity | Chuck Diameter | 15" | |
|---|---|---|---|
| Max. Swing Over Bed | φ800 mm | ||
| Max. Turing Diameter | φ750 mm | ||
| Max. Turning Height | φ650 mm | ||
| Max. Workpiece Weight | 1000kg | ||
| Travel | X - Axis Travel | +400/-30mm | |
| Z - Axis Travel | 700mm | ||
| Spindle | Spindle Speed | 50-2000 rpm | |
| Spindle Nose | A2-11 | ||
| Spindle Bearing Diameter | φ160mm | ||
| Turret | Turret Type | Horizontal | |
| Number of Tool | 8 | ||
| Cutter Size | 口32 , φ50 | ||
| Feedrate | X Axis Rapid Feed Rate | 12m/min | |
| Z Axis Rapid Feed Rate | 20m/min | ||
| Motor | Controller System | Fanuc 0i-TF Plus (10.4" LCD) | |
| Spindle Motor | 15/18.5kW | ||
| X Axis Servo Motor | 3kW | ||
| Z Axis Servo Motor | 3kW BS | ||
| Coolant Pump Motor | 750W | ||
| Hydraulic Motor | 2.2kw | ||
| Machine | Approximate Weight | 11000KG | |
| Floor Space Measurement | 2250*3990*3320mm | ||
| Pneumatic Requirement | ≧ 6.5Kg/c㎡) | ||
| Power Capacity | 28KVA) | ||
| Power Voltage | 3￠-AC 220V ±5% | ||
| Room Temperature | 0~38℃ | ||
| Humanity | ≦ 85% | ||
★ SPECIFICATIONS ARE SUBJECT TO CHANGED WITHOUT PRIOR NOTICE.
