Thread Mill
UCI
UCI
Commodity Brief

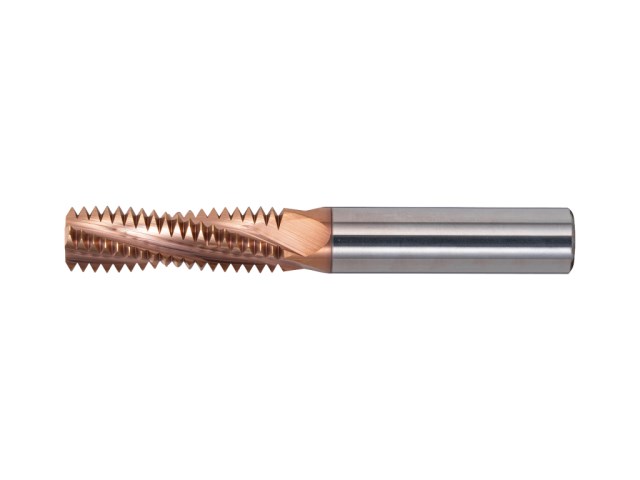

UN Spiral Milling Cutter UN US Standard (Internal)
#Accurate tolerance range, no need to consider the problem of tooth pitch, which makes processing more convenient.
#Titanium-silicon coating on the back, excellent bending resistance and excellent cutting angle make it easy to machine difficult-to-machine materials.
#The cutting resistance is low and the chips are short, and the tool is not easy to break during processing. It can be easily removed without damaging the workpiece, which greatly reduces the processing risk.
Specification
Product Introduction
| Carbon Steel | Alloy Steel | Prehardened Steel | Stainless Steel | Aluminum Alloy | Copper | Resin | Graphite | Hard Brittle Material | Heat Resistant Alloy | Hardened Steel | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 〜 55HRC |
～ 65HRC |
～ 70HRC |
||||||||||
| ◎ | ◎ | ◎ | ◎ | ○ | ○ | ○ | ◎ | |||||
| Code No. | Coarse | Fine | Extra Fine Unef | (P) Pitch |
(D) Dia. |
(l) Length of Cut |
(T) Flute |
(d) Shank Dia. |
(L) Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| 3206 | 5/16" | 32 | 6 | 15 | 3 | 6 | 60 | ||
| 3208 | 3/8" | 32 | 8 | 20 | 3 | 8 | 60 | ||
| 2806 | 1/4" | 28 | 5.1 | 15 | 3 | 6 | 60 | ||
| 2808 | 7/16"-1/2" | 28 | 8 | 20 | 3 | 8 | 60 | ||
| 2406 | 5/16" | 24 | 6 | 15 | 3 | 6 | 60 | ||
| 2408 | 3/8" | 24 | 8 | 20 | 3 | 8 | 60 | ||
| 2412 | 9/16"-5/8" | 24 | 12 | 25 | 4 | 12 | 75 | ||
| 2006 | 1/4" | 20 | 4.8 | 12 | 3 | 6 | 60 | ||
| 2008 | 7/16" | 20 | 8 | 20 | 3 | 8 | 60 | ||
| 2010 | 1/2" | 20 | 10 | 25 | 4 | 10 | 75 | ||
| 2012 | 3/4"-1" | 20 | 12 | 30 | 4 | 12 | 75 | ||
| 1806 | 5/16" | 18 | 6 | 15 | 3 | 6 | 60 | ||
| 1810 | 9/16"-5/8" | 18 | 10 | 25 | 4 | 10 | 75 | ||
| 1608 | 3/8" | 16 | 7.5 | 20 | 3 | 8 | 60 | ||
| 1612 | 3/4" | 16 | 12 | 30 | 4 | 12 | 75 | ||
| 1408 | 7/16" | 14 | 8 | 20 | 3 | 8 | 60 | ||
| 1412 | 7/8" | 14 | 12 | 30 | 4 | 12 | 75 | ||
| 1310 | 1/2" | 13 | 10 | 25 | 3 | 10 | 75 | ||
| 1212 | 9/16" | 12 | 11.5 | 30 | 4 | 12 | 75 | ||
| 1216 | 1" | 12 | 16 | 40 | 4 | 16 | 100 | ||
| 1112 | 5/8" | 11 | 12 | 30 | 4 | 12 | 75 | ||
| 1016 | 3/4" | 10 | 16 | 40 | 4 | 16 | 100 | ||
| 0916 | 7/8" | 9 | 16 | 40 | 4 | 16 | 100 | ||
| 0820 | 1" | 8 | 16 | 50 | 4 | 20 | 100 |
