HORIZONTAL TURNING CENTER- LT-200 /200E

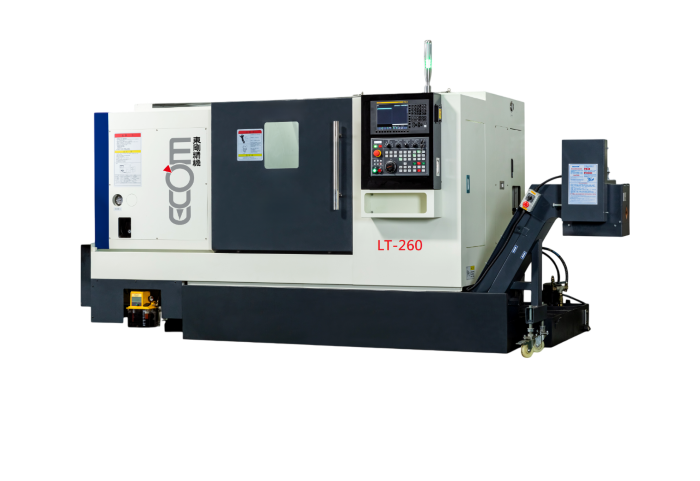

LT-200 / 200E

1. High Rigidity Design Structure: The machine features a design structure that prioritizes rigidity, enabling it to handle high-precision and high-efficiency processing operations effectively.
2. Materials and Manufacturing Standards: The castings of the machine are made of gray cast iron (FC300 or above), ensuring durability and stability.
Production adheres to international standards, guaranteeing quality and consistency.
3. Finite Element Analysis: The internal rib structures of the machine's supports have undergone finite element analysis. This process strengthens the rigidity of the machine, ensuring stability during operation.
4. Precision Hand-Scraped Contact Surfaces: To maintain accuracy over the long term, the contact surfaces of the machine's parts are meticulously hand-scraped to precision standards. This meticulous attention to detail ensures consistent performance and accuracy throughout the machine's lifespan.

Specification

Specifications
LT-200 / 200E
Capacity Model LT-200      /  LT200E (F0TF)
  Fanuc
Max. Swing Over Bed φ620 mm
Max. Swing Over Slide φ350 mm
Max. Machining Diameter φ360 mm
Max. Machining Length 320 mm    /  620mm
Max. Diameter of Bar φ52 mm
Travel X - Axis Travel 180+20mm
Z - Axis Travel 350mm    /  650mm
Tailstock Travel 230mm    /  530mm
Spindle Spindle Speed Range 4200 (OP:3500)
Chuck Size 8" (OP:10")  hydraulic
Spindle Head Type A2-6
Spindle Taper Hole Diameter φ66 mm
Front Bearing ID/OD φ100 mm
Rear Bearing ID/OD φ90 mm
Spindle Motor Power 11~15kW
Maximum Torque (For 8" Chuck) 190Nm
Max. Spindle Speed Torque (For 8" Chuck)  750rpm
Turret Number of Tool Station 12T
Shank Height for Square Tool  25*25mm
Shank Diameter for Boring Bar    φ40 mm
Tool Change Time (Adjacent) 0.25S
Tool Change Time(180°) 0.5S
Feedrate X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 30m/min
Feed Per Revolution 10m/min
Accuracy  XZ Axis Positioning ±0.005mm
XZ Axis Repeatability ±0.003mm
Bed & Slide  X Roller Type Linear Way 45mm(THK)
Z Roller Type Linear Way 45mm(THK)
Bed Angle 30°
Feed Motors  X Axis Motor 1.8kW
X Axis Motor Rated Torque 11Nm
Z Axis Motor 3kW
Z Axis Motor Rated Torque 20Nm
Tailstock  Tailstock Moving Type Manual (HM)
Tailstock Travel 230mm  /  530mm
Quill Movement Type Hydraulic
Quill Stoke 100mm
Quill Diameter φ75 mm
Internal Taper of Tailstock Sleeve  #MT4#
Hydraulic Unit   Pump Motor 1.5kW
Pump Pressure 35kg/c㎡
Tank Capacity 40L
Coolant System   Pump Motor 0.4kW
Tank Capacity 120L  /  150L
Central Lubrication   Pump Motor 150W
Tank Capacity 3L
Others Power Supply 25KVA
Machine Weight 3200kg  /  3500kg
Machine Dimension (L) 3455mm  /  3755mm
Machine Dimension (W) 1835mm
Machine Dimension (H) 1855mm

★ SPECIFICATIONS ARE SUBJECT TO CHANGED WITHOUT PRIOR NOTICE.
