產品介紹
工程塑膠螺絲

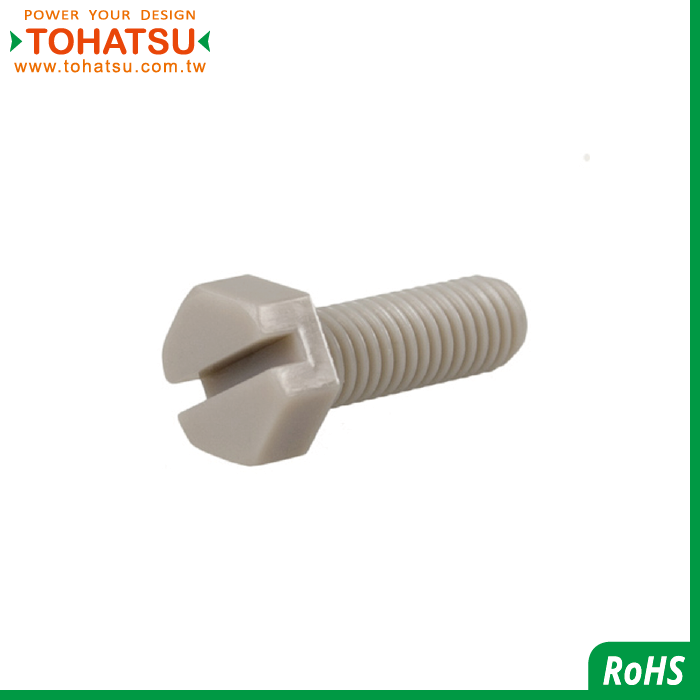

外六角一字螺栓(材質:PEEK)
PEEKSH
外六角螺絲主要用於薄壁零件上或受衝擊,振動或交變載荷的場合。預緊接觸面積大,可以用很大的預緊力
工程塑膠螺絲
特性如 絕緣、無磁、耐腐蝕、永不生銹 強度、耐衝擊能和金屬相媲美
1、醫療器械行業 (絕緣、無磁、 環保、 防干擾性號,使醫療機械設備使用更安全)
2、風能電力行業 (機箱電路PCB板的隔離、絕緣)
3、航空航天行業 (電子設備上絕緣、防干擾性號)
4、辦公設備行業 (永不生鏽、美觀實用 )
5、石油化工行業 (耐高温、耐化學、耐腐蝕,延長設備使用壽命)
6、電子行業 (絕緣、抗干擾、重量輕)
7、通訊行業 (絕緣、無磁、安全)
8、船舶行業 (耐酸 耐鹼 耐腐蝕,延長使用壽命)
規格數據
塑膠螺絲材質特性表/Plastic material characteristics table | |||||||||||||
PC | PPS | RENY | PEEK | PVC | PI | PP | PTFE | PFA | PVDF | 陶瓷/CERAMIC | PA | POM | |
輕量性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
吸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
耐煮沸水性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐低溫 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
強韌性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
抗蠕變性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
抗老化 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
難燃性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
抗電性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
耐磨耗 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
高強度 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
耐藥性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
耐熱性 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
品號
Product No.
|
型號
Model number
|
材質+處理
Material + Surface Treatment
|
螺紋規格
Thread Specifications
|
螺桿長
Screw length
|
牙長
Effective thread length
|
---|---|---|---|---|---|
N0098-000224 | PEEKSH-M4X6 | PEEK | M4X0.7 | 6 | 全牙 |
N0098-000217 | PEEKSH-M4X8 | PEEK | M4X0.7 | 8 | 全牙 |
N0098-000230 | PEEKSH-M4X10 | PEEK | M4X0.7 | 10 | 全牙 |
N0098-000202 | PEEKSH-M4X12 | PEEK | M4X0.7 | 12 | 全牙 |
N0098-000215 | PEEKSH-M4X15 | PEEK | M4X0.7 | 15 | 全牙 |
N0098-000201 | PEEKSH-M4X20 | PEEK | M4X0.7 | 20 | 全牙 |
N0098-000228 | PEEKSH-M4X25 | PEEK | M4X0.7 | 25 | 全牙 |
N0098-000219 | PEEKSH-M4X30 | PEEK | M4X0.7 | 30 | 全牙 |
N0098-000211 | PEEKSH-M5X15 | PEEK | M5X0.8 | 15 | 全牙 |
N0098-000205 | PEEKSH-M5X17 | PEEK | M5X0.8 | 17 | 全牙 |
N0098-000223 | PEEKSH-M5X25 | PEEK | M5X0.8 | 25 | 全牙 |
N0098-000220 | PEEKSH-M5X30 | PEEK | M5X0.8 | 30 | 全牙 |
N0098-000216 | PEEKSH-M6X10 | PEEK | M6X1 | 10 | 全牙 |
N0098-000203 | PEEKSH-M6X12 | PEEK | M6X1 | 12 | 全牙 |
N0098-000209 | PEEKSH-M6X15 | PEEK | M6X1 | 15 | 全牙 |
N0098-000213 | PEEKSH-M6X18 | PEEK | M6X1 | 18 | 全牙 |
N0098-000206 | PEEKSH-M6X20 | PEEK | M6X1 | 20 | 全牙 |
N0098-000208 | PEEKSH-M6X25 | PEEK | M6X1 | 25 | 全牙 |
N0098-000212 | PEEKSH-M6X30 | PEEK | M6X1 | 30 | 全牙 |
N0098-000229 | PEEKSH-M6X35 | PEEK | M6X1 | 35 | 全牙 |
N0098-000222 | PEEKSH-M6X40 | PEEK | M6X1 | 40 | 全牙 |
N0098-000221 | PEEKSH-M8X10 | PEEK | M8X1.25 | 10 | 全牙 |
N0098-000225 | PEEKSH-M8X15 | PEEK | M8X1.25 | 15 | 全牙 |
N0098-000226 | PEEKSH-M8X20 | PEEK | M8X1.25 | 20 | 全牙 |
N0098-000214 | PEEKSH-M8X25 | PEEK | M8X1.25 | 25 | 全牙 |
N0098-000207 | PEEKSH-M8X30 | PEEK | M8X1.25 | 30 | 全牙 |
N0098-000218 | PEEKSH-M8X35 | PEEK | M8X1.25 | 35 | 全牙 |
N0098-000227 | PEEKSH-M8X40 | PEEK | M8X1.25 | 40 | 全牙 |
N0098-000204 | PEEKSH-M8X45 | PEEK | M8X1.25 | 45 | 全牙 |
N0098-000210 | PEEKSH-M10X20 | PEEK | M10X1.5 | 20 | 全牙 |
N0098-000231 | PEEKSH-M10X40 | PEEK | M10X1.5 | 40 | 全牙 |
