固定銷／定位銷

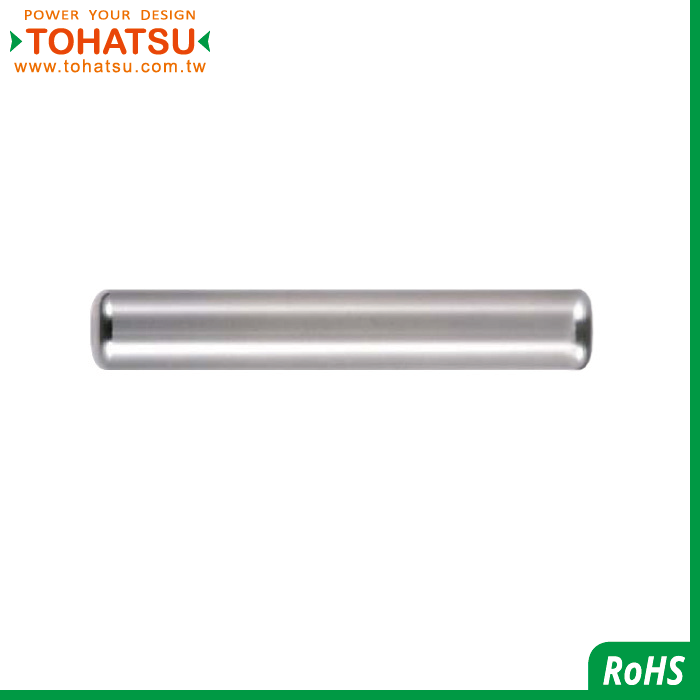

圓柱銷(材質:鋼、不銹鋼)(單邊螺紋)
NPBN NPBNP NPB

固定銷又稱定位銷，主要作用在兩零件之間緊固的螺絲間，保證位置準確性。
基本形式是圓柱銷(直銷)和圓錐銷(斜銷)區別如下
圓柱銷(直銷):1.可預加工。2.精確定位。3.抗剪作用。
利用微小過盈固定在鉸制孔中，可以承受不大的載荷。為保證定位精度和聯接的緊固性,不適合經常拆卸。
主要用於定位，也用作聯接銷和安全銷。
圓錐銷(斜銷):1.通常配合。2.經常拆卸。3.快速定位。
具有1：50的錐度，自鎖性好，定位精度高，安裝方便，多次裝拆對定位精度的影響較小。
主要用於定位,也可用作聯接銷,銷孔需鉸制。

規格數據

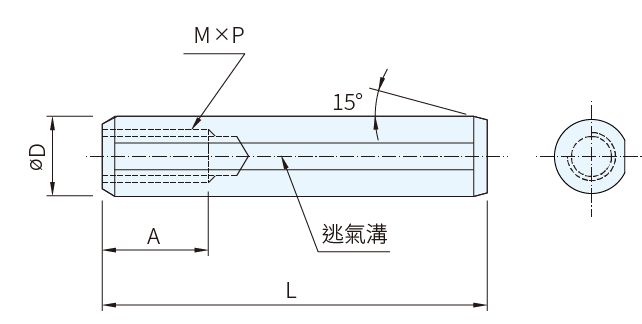

尺寸圖/Dimensional drawing
品號
Product No.
材質+處理
Material + Treatment
外徑(D)
Pin Dia.
外徑公差
tolerances
長度(L)
pin length
螺紋(MXP)
Threaded
螺紋深度(A)
Thread depth
NPBN6-10 S45C 6 0.012/0.004 10 M4X0.7 8
NPBN6-15 S45C 6 0.012/0.004 15 M4X0.7 8
NPBN6-20 S45C 6 0.012/0.004 20 M4X0.7 8
NPBN6-25 S45C 6 0.012/0.004 25 M4X0.7 8
NPBN6-30 S45C 6 0.012/0.004 30 M4X0.7 8
NPBN6-35 S45C 6 0.012/0.004 35 M4X0.7 8
NPBN6-40 S45C 6 0.012/0.004 40 M4X0.7 8
NPBN6-50 S45C 6 0.012/0.004 50 M4X0.7 8
NPBN8-15 S45C 8 0.015/0.006 15 M5X0.8 8
NPBN8-20 S45C 8 0.015/0.006 20 M5X0.8 8
NPBN8-25 S45C 8 0.015/0.006 25 M5X0.8 8
NPBN8-30 S45C 8 0.015/0.006 30 M5X0.8 8
NPBN8-35 S45C 8 0.015/0.006 35 M5X0.8 8
NPBN8-40 S45C 8 0.015/0.006 40 M5X0.8 8
NPBN8-45 S45C 8 0.015/0.006 45 M5X0.8 8
NPBN8-50 S45C 8 0.015/0.006 50 M5X0.8 8
NPBN8-60 S45C 8 0.015/0.006 60 M5X0.8 8
NPBN8-70 S45C 8 0.015/0.006 70 M5X0.8 8
NPBN8-80 S45C 8 0.015/0.006 80 M5X0.8 8
NPBN10-15 S45C 10 0.015/0.006 15 M6X1 10
NPBN10-20 S45C 10 0.015/0.006 20 M6X1 10
NPBN10-25 S45C 10 0.015/0.006 25 M6X1 10
NPBN10-30 S45C 10 0.015/0.006 30 M6X1 10
NPBN10-35 S45C 10 0.015/0.006 35 M6X1 10
NPBN10-40 S45C 10 0.015/0.006 40 M6X1 10
NPBN10-45 S45C 10 0.015/0.006 45 M6X1 10
NPBN10-50 S45C 10 0.015/0.006 50 M6X1 10
NPBN10-60 S45C 10 0.015/0.006 60 M6X1 10
NPBN10-70 S45C 10 0.015/0.006 70 M6X1 10
NPBN10-80 S45C 10 0.015/0.006 80 M6X1 10
NPBN12-20 S45C 12 0.018/0.007 20 M6X1 10
NPBN12-30 S45C 12 0.018/0.007 30 M6X1 10
NPBN12-40 S45C 12 0.018/0.007 40 M6X1 10
NPBN12-50 S45C 12 0.018/0.007 50 M6X1 10
NPBN12-60 S45C 12 0.018/0.007 60 M6X1 10
NPBN12-70 S45C 12 0.018/0.007 70 M6X1 10
NPBN12-80 S45C 12 0.018/0.007 80 M6X1 10
NPBN13-40 S45C 13 0.018/0.007 40 M8X1.25 15
NPBN13-50 S45C 13 0.018/0.007 50 M8X1.25 15
NPBN13-60 S45C 13 0.018/0.007 60 M8X1.25 15
NPBN13-70 S45C 13 0.018/0.007 70 M8X1.25 15
NPBN13-80 S45C 13 0.018/0.007 80 M8X1.25 15
NPBN16-50 S45C 16 0.018/0.007 50 M8X1.25 15
NPBN16-60 S45C 16 0.018/0.007 60 M8X1.25 15
NPBN16-70 S45C 16 0.018/0.007 70 M8X1.25 15
NPBN16-80 S45C 16 0.018/0.007 80 M8X1.25 15
NPBN20-50 S45C 20 0.021/0.008 50 M10X1.5 18
NPBN20-60 S45C 20 0.021/0.008 60 M10X1.5 18
NPBN20-70 S45C 20 0.021/0.008 70 M10X1.5 18
NPBN20-80 S45C 20 0.021/0.008 80 M10X1.5 18
NPBNP6-10 SUS420 6 0.012/0.004 10 M4X0.7 8
NPBNP6-15 SUS420 6 0.012/0.004 15 M4X0.7 8
NPBNP6-20 SUS420 6 0.012/0.004 20 M4X0.7 8
NPBNP6-25 SUS420 6 0.012/0.004 25 M4X0.7 8
NPBNP6-30 SUS420 6 0.012/0.004 30 M4X0.7 8
NPBNP8-15 SUS420 8 0.015/0.006 15 M5X0.8 8
NPBNP8-20 SUS420 8 0.015/0.006 20 M5X0.8 8
NPBNP8-25 SUS420 8 0.015/0.006 25 M5X0.8 8
NPBNP8-30 SUS420 8 0.015/0.006 30 M5X0.8 8
NPBNP8-35 SUS420 8 0.015/0.006 35 M5X0.8 8
NPBNP8-40 SUS420 8 0.015/0.006 40 M5X0.8 8
NPBNP10-20 SUS420 10 0.015/0.006 20 M6X1 10
NPBNP10-25 SUS420 10 0.015/0.006 25 M6X1 10
NPBNP10-30 SUS420 10 0.015/0.006 30 M6X1 10
NPBNP10-35 SUS420 10 0.015/0.006 35 M6X1 10
NPBNP10-40 SUS420 10 0.015/0.006 40 M6X1 10
NPBNP10-45 SUS420 10 0.015/0.006 45 M6X1 10
NPB6-10 S45C 6 0.020/0.012 10 M4X0.7 8
NPB6-15 S45C 6 0.020/0.012 15 M4X0.7 8
NPB6-20 S45C 6 0.020/0.012 20 M4X0.7 8
NPB6-25 S45C 6 0.020/0.012 25 M4X0.7 8
NPB6-30 S45C 6 0.020/0.012 30 M4X0.7 8
NPB6-35 S45C 6 0.020/0.012 35 M4X0.7 8
NPB6-40 S45C 6 0.020/0.012 40 M4X0.7 8
NPB6-50 S45C 6 0.020/0.012 50 M4X0.7 8
NPB8-15 S45C 8 0.024/0.015 15 M5X0.8 8
NPB8-20 S45C 8 0.024/0.015 20 M5X0.8 8
NPB8-25 S45C 8 0.024/0.015 25 M5X0.8 8
NPB8-30 S45C 8 0.024/0.015 30 M5X0.8 8
NPB8-35 S45C 8 0.024/0.015 35 M5X0.8 8
NPB8-40 S45C 8 0.024/0.015 40 M5X0.8 8
NPB8-45 S45C 8 0.024/0.015 45 M5X0.8 8
NPB8-50 S45C 8 0.024/0.015 50 M5X0.8 8
NPB8-60 S45C 8 0.024/0.015 60 M5X0.8 8
NPB8-70 S45C 8 0.024/0.015 70 M5X0.8 8
NPB8-80 S45C 8 0.024/0.015 80 M5X0.8 8
NPB10-15 S45C 10 0.024/0.015 15 M6X1 10
NPB10-20 S45C 10 0.024/0.015 20 M6X1 10
NPB10-25 S45C 10 0.024/0.015 25 M6X1 10
NPB10-30 S45C 10 0.024/0.015 30 M6X1 10
NPB10-35 S45C 10 0.024/0.015 35 M6X1 10
NPB10-40 S45C 10 0.024/0.015 40 M6X1 10
NPB10-45 S45C 10 0.024/0.015 45 M6X1 10
NPB10-50 S45C 10 0.024/0.015 50 M6X1 10
NPB10-60 S45C 10 0.024/0.015 60 M6X1 10
NPB10-70 S45C 10 0.024/0.015 70 M6X1 10
NPB10-80 S45C 10 0.024/0.015 80 M6X1 10
NPB12-20 S45C 12 0.029/0.018 20 M6X1 10
NPB12-30 S45C 12 0.029/0.018 30 M6X1 10
NPB12-40 S45C 12 0.029/0.018 40 M6X1 10
NPB12-50 S45C 12 0.029/0.018 50 M6X1 10
NPB12-60 S45C 12 0.029/0.018 60 M6X1 10
NPB12-70 S45C 12 0.029/0.018 70 M6X1 10
NPB12-80 S45C 12 0.029/0.018 80 M6X1 10
NPB13-40 S45C 13 0.029/0.018 40 M8X1.25 15
NPB13-50 S45C 13 0.029/0.018 50 M8X1.25 15
NPB13-60 S45C 13 0.029/0.018 60 M8X1.25 15
NPB13-70 S45C 13 0.029/0.018 70 M8X1.25 15
NPB13-80 S45C 13 0.029/0.018 80 M8X1.25 15
NPB16-40 S45C 16 0.029/0.018 40 M8X1.25 15
NPB16-50 S45C 16 0.029/0.018 50 M8X1.25 15
NPB16-60 S45C 16 0.029/0.018 60 M8X1.25 15
NPB16-70 S45C 16 0.029/0.018 70 M8X1.25 15
NPB16-80 S45C 16 0.029/0.018 80 M8X1.25 15
NPB20-50 S45C 20 0.035/0.022 50 M10X1.5 18
NPB20-60 S45C 20 0.035/0.022 60 M10X1.5 18
NPB20-70 S45C 20 0.035/0.022 70 M10X1.5 18
NPB20-80 S45C 20 0.035/0.022 80 M10X1.5 18
