Specification

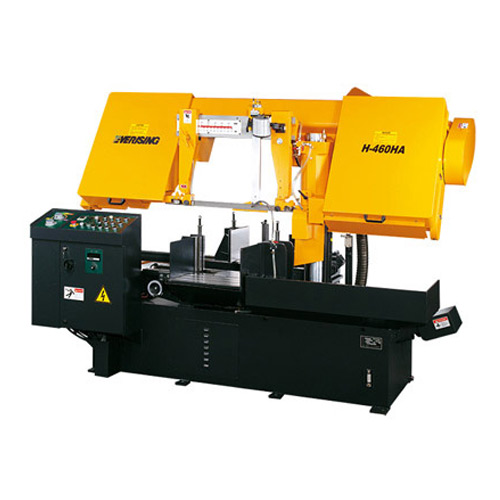

| Model | H-460HA | |
|---|---|---|
| Capacity | ● | 460 mm (18") |
| ■ | 500 x 460 mm (20"W x 18"H) | |
| Bundle Cutting | Width | 195 to 310 mm (8" to 12") |
| Height | 120 to 230 mm (5" to 9") | |
| Blade Speed | 20 to 100 m/min (65 to 330 fpm) (INVERTER) | |
| Motor | Blade Drive | 5.5 kW (7.5HP) |
| Hyd. Pump | 1.5 kW (2HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 5450 x 41 x 1.3 mm (215" x 1.6" x 0.05") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") 500 mm x 9 times (20" x 9") | |
| Machine Weight | 2700 kg (5950 lb) | |
| Floor Space (L x W) | 2820 x 2190 mm (111" x 86") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
