Specification
V: Hydraulic Vise Feeding / T: Hydraulic Shuttle Table Feeding

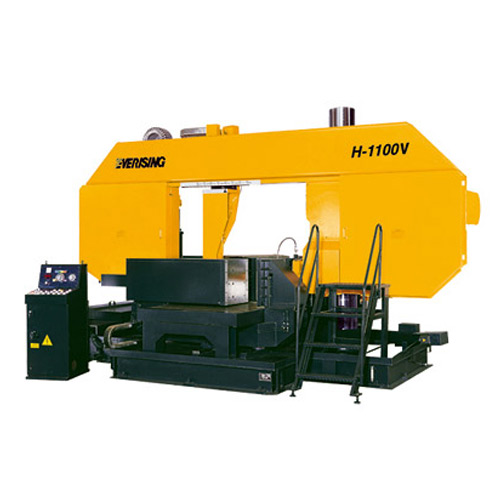

| Model | H-1100V/T | |
|---|---|---|
| Capacity | ● | 1000 mm (40") |
| ■ | 1100 x 1000 mm (43.3" W x 40" H) min. clamp width 400 mm (15.7") | |
| Blade Speed | 15 to 75 m/min. (50 to 250 fpm) (INVERTER) | |
| Motor | Blade Drive | 11.5 kW (15HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 11100 x 80 x 1.6 mm (437" x 3" x 0.063") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") | |
| Machine Weight | 14000 kg (30800 lb) | |
| Floor Space (L x W) | 5070 x 2650 mm (199.6" x 104.3") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
