Specification

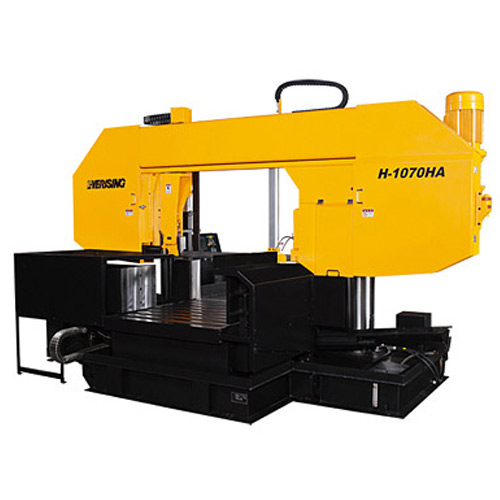

| Model | H-1070HANC | |
|---|---|---|
| Capacity | ● | 700 mm (28") |
| ■ | 1000 x 700 mm (40"W x 28H") min. clamp width 585 mm (23") |
|
| Blade Speed | 15-80 m/min (50-265 fpm) (INVERTER) | |
| Motor | Blade Drive | 11.2 kW (15 HP) |
| Hyd. Pump | 3.7 kW (5 HP) | |
| Coolant Pump | 0.4 kW (1/2 HP) | |
| Blade Size | 8800 x 67 x 1.6 mm (346.5" x 2.63" x 0.063") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") Controlled by NC | |
| Machine Weight | 8500 kg (18700 lb) | |
| Floor Space (L x W) | 4500 x 2300 mm (177" x 90.5") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
