Specification

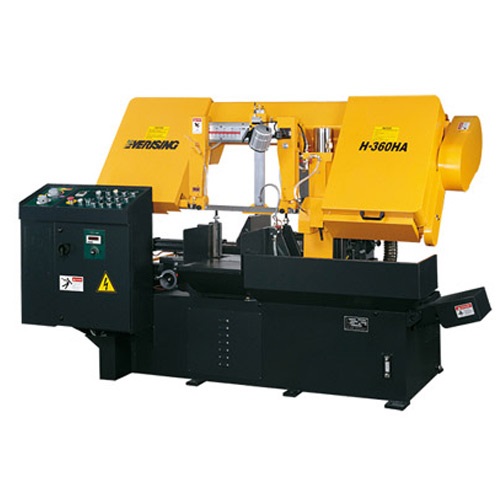

| Model | H-360HA | |
|---|---|---|
| Capacity | ● | 360 mm (14") |
| ■ | 360 x 360 mm (14"W x 14"H) | |
| Bundle Cutting | Width | 180 to 280 mm (7" to 11") |
| Height | 50 to 160 mm (2" to 6") | |
| Blade Speed | 20 to 100 m/min (65 to 330 fpm) (INVERTER) | |
| Motor | Blade Drive | 3.7 kW (5HP) |
| Hyd. Pump | 1.5 kW (2HP) | |
| Coolant Pump | 0.1 kW (1/8HP) | |
| Blade Size | 4420 x 34 x 1.1 mm (174" x 1.3" x 0.042") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") 500 mm x 9 times (20" x 9") |
|
| Machine Weight | 2000 kg (4410 lb) | |
| Floor Space (L x W) | 2500 x 2200 mm (98" x 87") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
