Specification

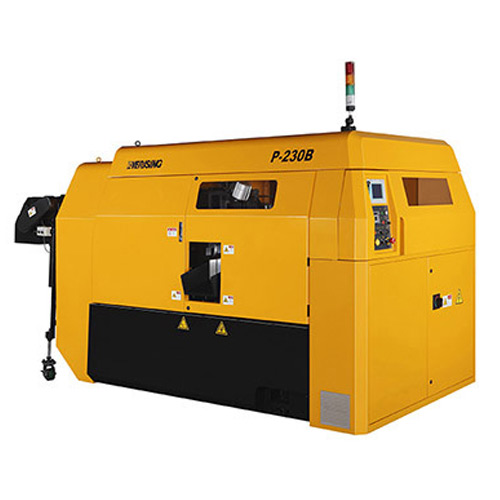

| Model | P-230B | ||
|---|---|---|---|
| Capacity | ● | 70 - 230 mm | |
| ■ | 70 - 160 mm | ||
 | - | ||
| Blade Motor | 40 HP | ||
| Hydraulic Pump Motor | 5 HP | ||
| Blade Speed | 20 - 70 rpm | ||
| Saw Blade Size ( T:Kerf t:Thickness ) | Ø750 x T 3.8 x 3.2t mm | ||
| Blade Feed | Servo motor and ball screw | ||
| Load Table ( W X L ) | 2286 mm x 5380 mm | ||
| Bar Feed | Servo motor and ball screw | ||
| Automatic Feed Length | Single feed 10 - 500 mm Multiple feed - 3000 mm | ||
| Automatic Chip Conveyor | Chain type | ||
| Cooling | Air compressed oil mist | ||
| Machine Weight with Table | 8000 kg | ||
| Floor Space (mm) | Machine with 5M load Table | 3510 W x 1825 L 3510 W x 7120 L | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
