Specification

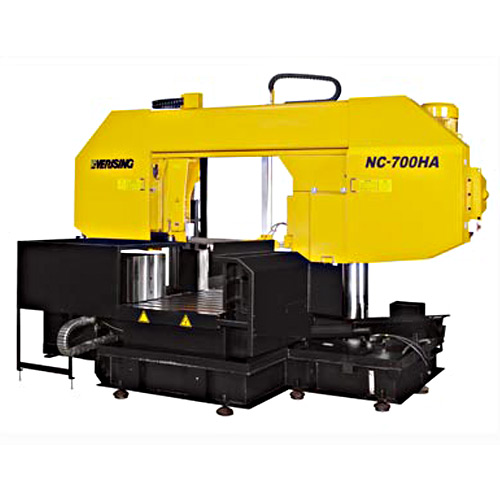

| Model | NC-700HA | |
|---|---|---|
| Capacity | ● | 700 mm (28") |
| ■ | 800 x 700 mm (31.5"W x 28"H) min. clamp width 285 mm (11.2") |
|
| Blade Speed | 15 to 90 m/min (50 to 300 fpm) (INVERTER) | |
| Motor | Blade Drive | 11.2 kW (15HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.4 kW (1/2HP) | |
| Blade Size | 8300 x 67 x 1.6 mm (327" x 2.63" x 0.063") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") Controlled by NC | |
| Machine Weight | 7000 kg (15400 lb) | |
| Floor Space (L x W) | 4100 x 2300 mm (161.4" x 90.5") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
